Formax FD 8652CC AutoOiler Shredder

  • SKU: BESFD8652CC
  • Security: Level 3/P-4
  • Sheet Capacity: 32 sheets*
  • Throat: 16"
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Basic Specs of the Formax FD 8652CC AutoOiler Shredder

  • Security Level: Level 3/P-4
  • Throat: 16 inches
  • Shred Size: 5/32" x 1 19/32"
  • Sheet Capacity: Up to 32 sheets*
  • Speed: Up to 33 feet/min.
  • Electrical: 110V

Features of the FD 8652CC AutoOiler Shredder

  • Internal AutoOiler: Automatically oils the cutting blades periodically when necessary

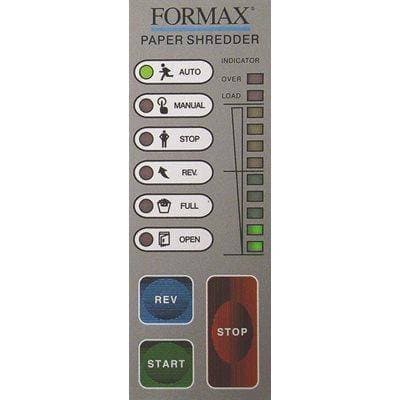

  • LED Control Panel: Integrated digital load indicator and sensors
  • Auto Start/Stop Mode: Optical sensor detects paper and starts operation automatically
  • Manual Mode: Shredder operates continuously for shredding small sized paper or films
  • Door Safety Sensor: Motor stops automatically if cabinet door is opened
  • Auto Reverse: In case of paper jam, built-in controls switch motor into reverse to clear jam

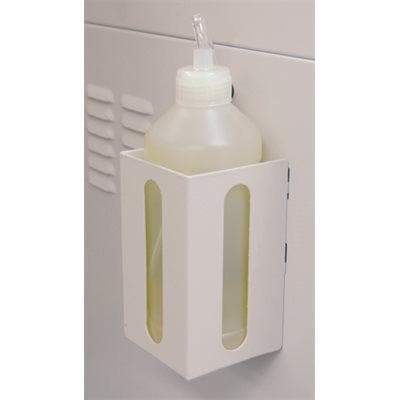

  • EvenFlow™ Automatic Oiling System: Lubricates cutting blades for optimal performance
  • Continuous-Duty Motor for non-stop operation
  • Waste Bin Full Sensor: When the waste bin is full the motor stops automatically
  • Auto Cleaning: Allows the motor to run in reverse for one minute to clear shred particles
  • Self-Diagnosis System: Provides a variety of operational data with optional diagnostic reader
  • Heat-Treated Solid-Steel Cutters: Specially ground for longevity and require minimal oiling
  • Large Safety Bar to stop operation
  • Mobile Waste Bin on casters
  • Thermal Overload Protection
  • Safety Circuit Breaker: Ensures safe operation
  • Safety Key and Lock: Provides maximum control of the shredder

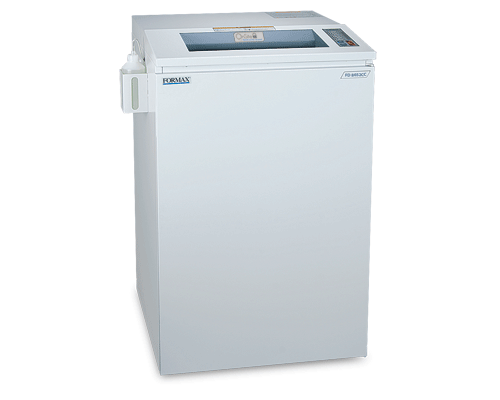

This is one industrial shredder that can take some serious loads. The FD 8652CC industrial conveyor shredder by Formax is made to meet your bulk shredding needs.

Description of the Formax FD 8652 Cross Cut AutoOiler Shredder

The Formax FD 8652CC is powerful enough to shred entire files as well as tapes and CDs. This industrial cross cut shredder can shred up to 32 sheets at once at 33 feet per minute. It has a Security Level 3 shred size of 5/32" x 1-19/32". The bin has a capacity of 53 gallons. The LED control panel allows users to choose between automatic and manual operation of the shredder. In manual mode, the shredder runs non-stop for shredding small sized paper or films. In automatic mode, optical sensors detect paper to start and stop the shredder. The LED panel has indicators for the cabinet door being open or the waste bin being full. The motor will automatically stop when the bin is full to avoid overflow problems. The LED panel's load indicator displays how much of the shred capacity is being used at any time. In the case of a paper jam, the motor will automatically switch into reverse to clear it. The 8652 features the EvenFlow Automatic Oiling System to keep the cutting blades lubricated. The Auto Cleaning function allows shredding debris to be removed by pressing reverse on the control panel. The large safety bar at the front of the shredder causes an immediate shutdown when pressed. The keyed on/off switch ensures that only authorized personnel can use the shredder.

Manufacturer Name Formax
Model # 8652CC
Manufacturer Part Number FD 8652CC
Throat Size/Feed Opening 16 inches
Shred Speed Up to 33 feet/min.
Shred Size 5/32" x 1 19/32"
Bin Capacity 53 gallons
Oiler Fully Automatic
Security Level Level 3/P-4
Cut Type Cross Cut
Sheet Capacity Up to 32 sheets*
Shreds Credit Cards? Yes
Shreds Paper Clips? Yes
Shreds Staples? Yes
Disclosures Capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
Continuous Motor Yes
Weight 317 lbs.
Height 43 inches
Width 28 inches
Depth 24 inches
Voltage 110V
Warranty >> Click Here to View Warranty
Shipping Weight 347 lbs.
Shipping Length 29 inches
Shipping Width 32 inches
Shipping Height 53 inches
