Formax FD 6308 Special 3 Folder Inserter
Formax FD 6306 Special 3 Folder Inserter Inserters Formax
Formax FD 6306 Special 3 Folder Inserter Inserters Formax
Formax FD 6308 Special 3 Folder Inserter
Formax FD 6306 Special 3 Folder Inserter Inserters Formax
Formax FD 6306 Special 3 Folder Inserter Inserters Formax



Formax FD 6308 Special 3 Folder Inserter

  • SKU: BESFD6308-SPEC3
  • Mfr. Part No.: FD 6308-Special 3
$28,495.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the FD 6308 Special 3 Folder Inserter

  • Speed: 3,800 sheets/hour
  • Duty Cycle: 40,000 pieces/month
  • Fold Types: C, V, Z, double parallel, no fold
  • Standard Feeders: Up to 325 sheets each, 20# bond
  • Envelope Hopper: Up to 325 envelopes, top-loading
  • Sheet Size: 3.5” - 14” H x 5” - 9” W
  • Envelope Size: 3.5” - 6.4” H x 5.5” - 9.8” W

Features of the FD 6308 - Special 3

  • Three station with 2 standard and 1 special feeder.

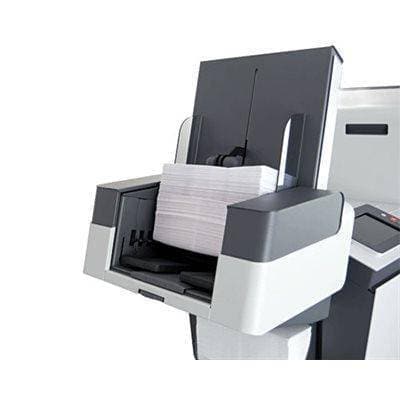

  • High capacity vertical stacker.

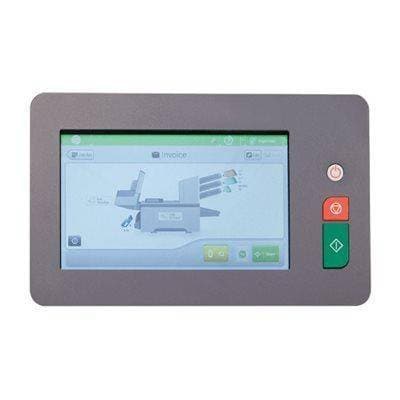

  • 7" color touchscreen control panel.
  • 50 programmable fold applications.
  • Clamshell design for easy access to paper path.
  • Energy saving Eco mode.
  • Seal and non-seal capabilities.
  • Easy to load feeders hold up to 325 sheets.
  • Double document detection.
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold.
  • Low noise level, ideal for any environment.

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Video of the Formax FD 6308 Special 3 Folder Inserter


Description of the Formax FD 6308 Standard 3 Folder Inserter

The FD 6308-Standard 3 combines user-friendly features with high productivity. Standard features include a 7" full-color touchscreen control panel with a graphical interface, three-station with 2 standard feeders, 1 special feeder on Bottom, w/ vertical stacker. Each standard feeder can hold up to 325 sheets each, and the Vertical stacker can hold up to 500 filled envelopes.

the FD 6308 Standard 3 Folder Inserter can process sheet sizes of 3.5" 14" H x 5" 9" W into C, V, Z, Double Parallel or No Fold fold types, and process up to 3,800 pieces per hour. The FD6308 can store up to 50 programmable jobs.

Please select your preferred download file from below.

Manufacturer Name Formax
Model 6308 Series Special 3
Speed Up to 3,800 pieces per hour
Duty Cycle Up to 40,000 pieces per month
Standard Feeders Up to 725 sheets each, 20# bond (for Standard 2F, Special 2F, and Standard 2FP models)
Envelope Hopper Up to 325 envelopes, top-loading
High-Capacity Vertical Stacker Up to 500 filled envelopes
Sheet Size 3.5"-14"H x 5"-9"W
Programmable Jobs 50 jobs
Max Insert Thickness 1 mm
Max Set Thickness 2.5 mm
Envelope Size 3.5"-6.4"H x 5.5"-9.8"W
Set Thickness Up to 2.5 mm
Dimensions 51" L x 29" H x 20" W
Product Weight 175 lbs. (3 stations)
