Formax FD 6308 Special 2Fi Folder Inserter
Formax FD 6306 Special 2F Folder Inserter Inserters Formax
Formax FD 6306 Special 2F Folder Inserter Inserters Formax
Formax FD 6306 Special 2F Folder Inserter Inserters Formax

Formax FD 6308 Special 2Fi Folder Inserter
Formax FD 6306 Special 2F Folder Inserter Inserters Formax
Formax FD 6306 Special 2F Folder Inserter Inserters Formax
Formax FD 6306 Special 2F Folder Inserter Inserters Formax



Formax FD 6308 Special 2Fi Folder Inserter

  • SKU: BESFD6308-SPEC2Fi
  • Mfr. Part No.: FD 6308-Special 2Fi
Sale price
Sale price
$33,095.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Formax FD 6308 Special 2Fi Folder Inserter

  • Speed: 3,800 sheets/hour
  • Duty Cycle: 40,000 pieces/month
  • Fold Types: C, V, Z, double parallel, no fold
  • Standard Feeders: Up to 325 sheets each, 20# bond
  • Envelope Hopper: Up to 325 envelopes, top-loading
  • Sheet Size: 3.5” - 14” H x 5” - 9” W
  • Envelope Size: 3.5” - 6.4” H x 5.5” - 9.8” W

Features of the Formax FD 6308 Special 2Fi Folder Inserter

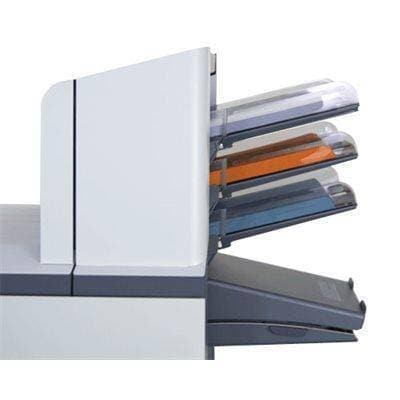

  • Two station - 1 - high capacity document feeder and 1 - special feeder on bottom.
  • High capacity vertical stacker.

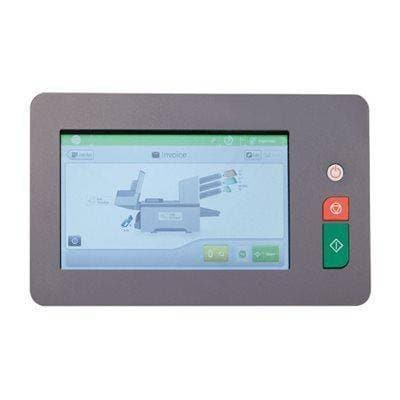

  • 7" color touchscreen control panel.
  • 50 programmable fold applications.
  • Clamshell design for easy access to paper path.
  • Energy saving Eco mode places the inserter into sleep mode after 1 hour of inactivity.
  • Seal and non-seal capabilities.
  • High Capacity Document feeder holds up to 725 sheets.
  • Double document detection.
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold.
  • Low noise level, ideal for any environment.

For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred configuration.

Video of the Formax FD 6308 Special 2Fi Folder Inserter


Description of the Formax FD 6308 Special 2Fi Folder Inserter

The Formax FD 6308 Special 2Fi Folder Inserter is an amazing addition to your workspace while staying cost-efficient, budget-friendly, and compact. The FD 6308 has the strength to deliver up to 40,000 pieces of mail per month while processing at a rate of 3,800 pieces per hour.

The FD 6308 Special 2Fi Inserter includes two stations with 1 high-capacity document feeder and 1 special feeder on the bottom. And with it's 7" full-color touchscreen control panel, every function is just one touch away. The AutoSet feature can set the paper length, fold type, and envelope size automatically, and can store up to 50 programmable jobs.

The FD 6308 Special 2F Folder Inserter also comes with Cascade Mode which lines up all the feeders and connects them- creating a continuous operating stream. At the end of the line, all the output is stored in the High-Capacity Vertical Stacker, which has space for up to 500 finished envelopes. Double Document Detection ensures that items feed only into their specific envelopes, greatly reducing errors.

The FD 6308 is compact and can fit in any given space. Its clamshell layout is a bonus for those who want to keep an eye on the process. Last but not least, the FD 6308 will automatically go into standby after 1 hour of inactivity due to its energy-saving Eco Mode.

Please select your preferred download file from below.

Manufacturer Name Formax
Model 6308 Series Special 2Fi Folder Inserter
Speed Up to 3,800 pieces per hour
Duty Cycle Up to 40,000 pieces per month
Standard Feeders Up to 725 sheets each, 20# bond (for Standard 2F, Special 2F, and Standard 2FP models)
Envelope Hopper Up to 325 envelopes, top-loading
High-Capacity Vertical Stacker Up to 500 filled envelopes
Sheet Size 3.5"-14"H x 5"-9"W
Programmable Jobs 50 jobs
Max Insert Thickness 1 mm
Max Set Thickness 2.5 mm
Envelope Size 3.5"-6.4"H x 5.5"-9.8"W
Set Thickness Up to 2.5 mm
Dimensions 51" L x 29" H x 20" W
Product Weight 175 lbs. (3 stations)
