Formax FD 574 Cut-Sheet Guillotine Cutter
Formax FD 574 Cut Sheet Cutter Cutters Formax
Formax FD 574 Cut Sheet Cutter Cutters Formax

Formax FD 574 Cut-Sheet Guillotine Cutter
Formax FD 574 Cut Sheet Cutter Cutters Formax
Formax FD 574 Cut Sheet Cutter Cutters Formax

Formax FD 574 Cut-Sheet Guillotine Cutter

  • SKU: BESFD574
Sale price
Sale price
$9,050.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Basic Specs of the Formax FD 574 Cut Sheet Cutter

  • Form Size: 4.17" x 4.33," up to 14.34" x 17"
  • Speed: Up to 44 forms per minute (with 3 cuts)
  • Paper Weight: 58-157 gsm
  • Minimum Cutting Length: 2"
  • Cutting Tolerance: +/- 0.5
  • Cutting Method: Guillotine cutter
  • Feed Tray Capacity: Up to 500 sheets
  • Cut Size: 2.16"-8.27"

Features of the Formax FD 574 Cut Sheet Cutter

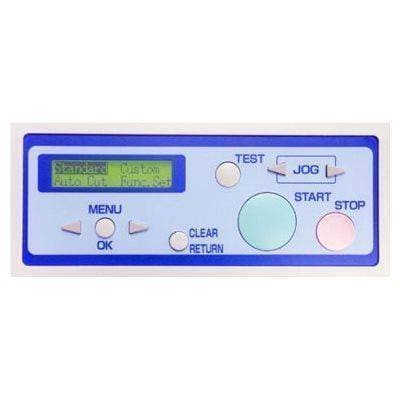

  • User-Friendly Control Panel: Provides operator with helpful word prompts for effective and efficient operation.
  • 6 Pre-programmed Paper Cutting Sizes, including:
    (1) 8.5” into 1, 2, or 3 even cuts;
    (2) 11” into 1, 2, 3 or 4 even cuts;
    (3) 14” into 1, 2, 3, 4 or 5 even cuts;
    (4) 11” x 17” into 1, 2, 3, 4, 5, 6, or 7 even cuts; and
    (5) 11” x 17” into 2-up 8.5” x 11” (with optional slitter).
  • 100 Programmable Jobs: Available for custom cutting operations.
  • Cutting Method: Guillotine Cutter.
  • Top-loading feed system.
  • Counter: Keeps track of the number of forms fed, and the number of pieces cut.
  • Automatic Setup: Measures sheet & sets cutting positions according to paper size.
The FD 574 will automatically feed the forms and cut, slit, or perforate in the desired position. This is ideal for use with checks, coupons, tickets, notices, membership cards and labels.

Description of the Formax FD 574 Cut Sheet Cutter

This guillotine cutter offers a top-loading feed system, and is designed to process forms generated from a digital printer. Speed and accuracy defines the Formax FD 574 Cut-Sheet Cutter. The FD 574 processes up to 2,640 sheets per hour and up to 44 forms per minute. With a cutting accuracy of +/- 0.5, this cut-sheet cutter accepts form sizes from 4.17" x 4.33" up to 14.34" x 18". Six common pre-programmed cuts are available, including 8.5" into 1-3 even cuts, 11" into 1-4 even cuts, 14" into 1-5 even cuts, 11" x 17" into 1-7 even cuts, 12" x 18" into 2-up, or 8.5" x 11" with the optional slitter. One hundred programmable memory jobs are also available for custom cutting operations. For efficient operation, the feed tray holds up to 500 sheets at a time (64gsm), while the stacker accommodates up to 800 sheets at once (64gsm).

Ease-of-use is key with any machine, and the FD 574 is no different. This unit automatically measures your sheet and sets cutting positions accordingly. The user-friendly control panel displays operation status, and features a test, start/stop, clear/return, and menu button. Options for this cut-sheet cutter include a slitter, perforator, and belt conveyor stacker. With dimensions of 32" L x 23" W x 10" H, the Formax FD 574 fits perfectly on any tabletop in your print shop, mail room, or office. Weighing 71 lbs., the FD 574 can be relatively easy to relocate if necessary.

Please select your preferred download file from below.

Manufacturer Name Formax
Model # FD 574
Weight 90 lbs.
Height 7"
Width 33"
Depth 23"
Voltage 120 Volts / 60 Hz; other voltages available.
Warranty

Shipping Weight 96 lbs.
Shipping Width 24"
Shipping Length 30"
Shipping Height 23"
Search Terms formaxfd574, formaxfd, formax574, fd574, formaxcutter, sheetcutter, 574cutter, fdcutter
