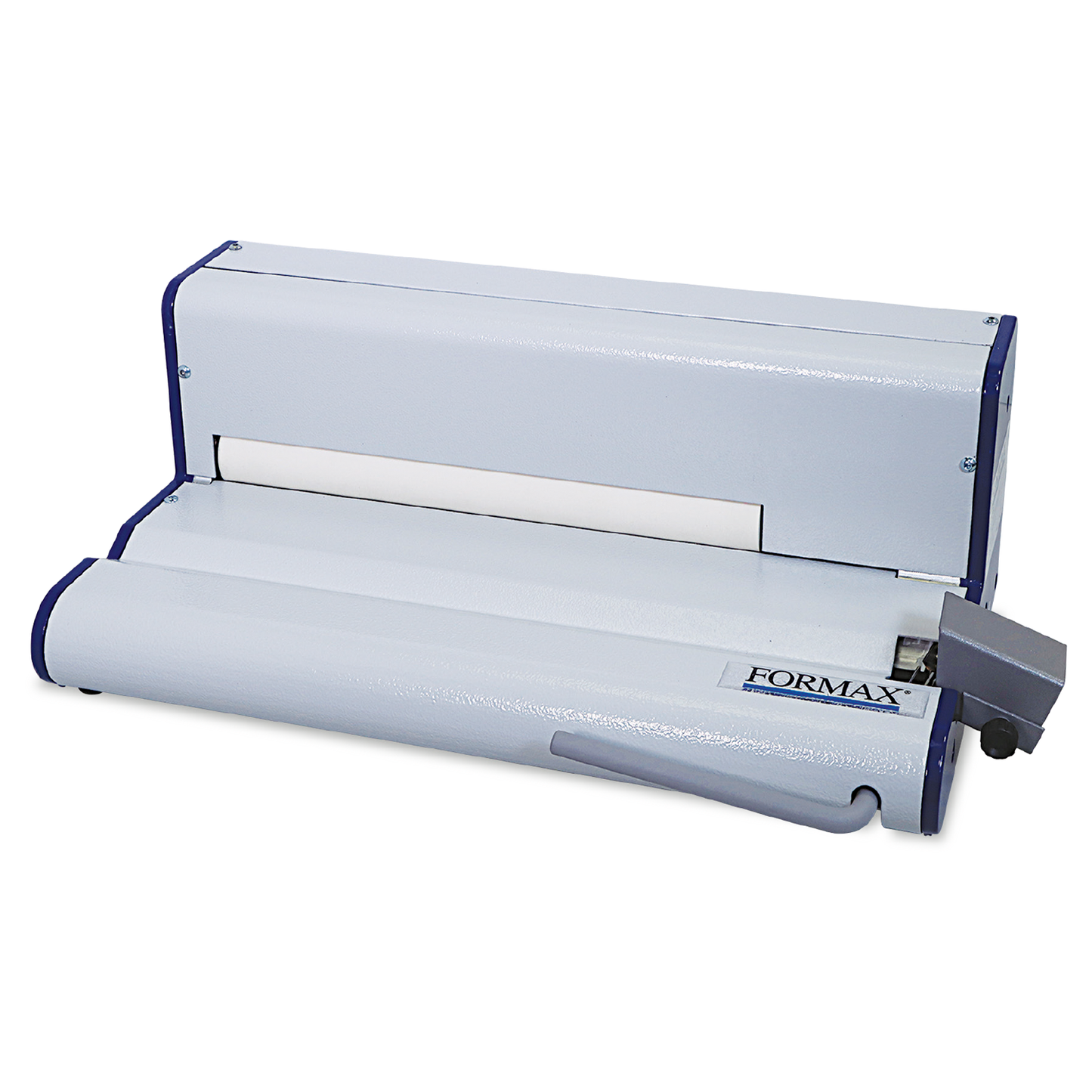

Formax Coil100 Electric Coil Binding & Crimping System
- SKU: BESCOIL100
- Mfr. Part No.: Coil100
Description of the Formax Coil100 Electric Coil Binding & Crimping System

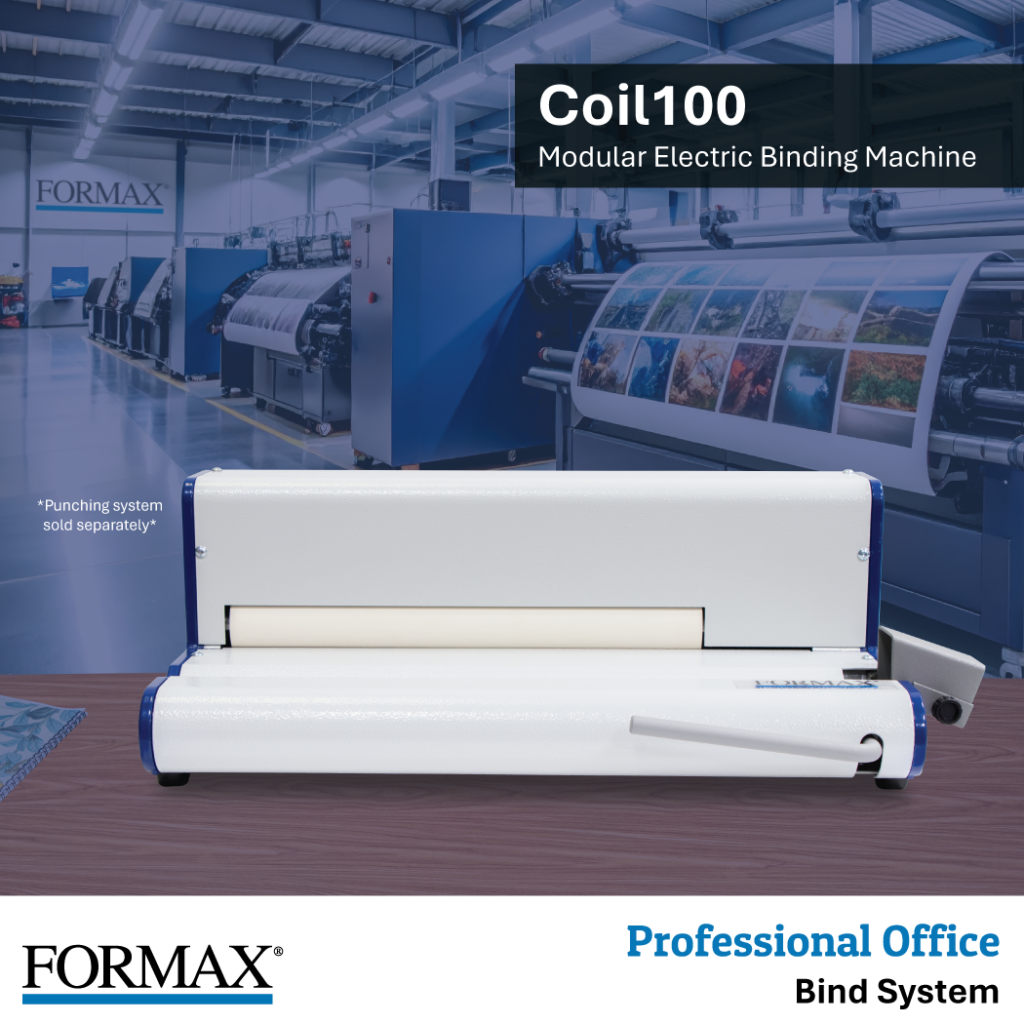

The Coil100 Electric Coil Inserter is the ideal compact solution for binding and finishing booklets. Its modular design allows for use on its own or with the Punch100 Electric Punch for a complete punch and bind system.

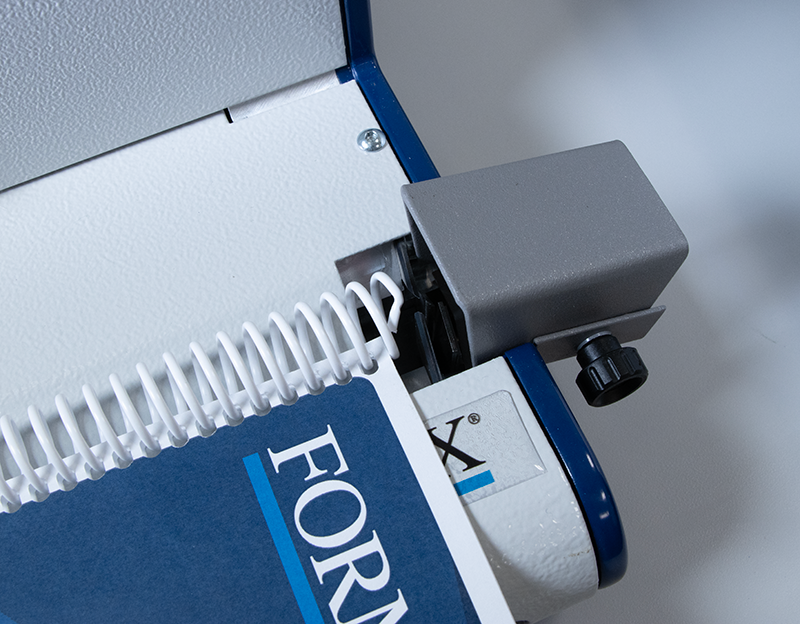

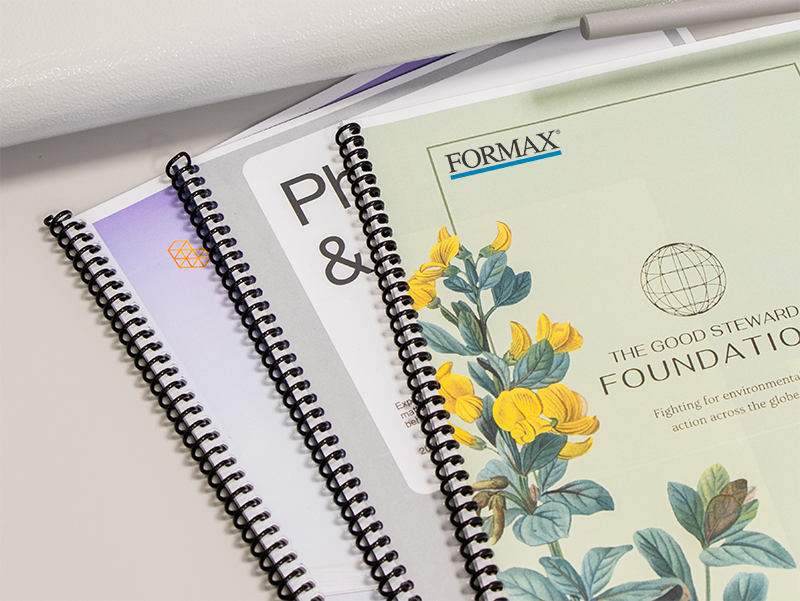

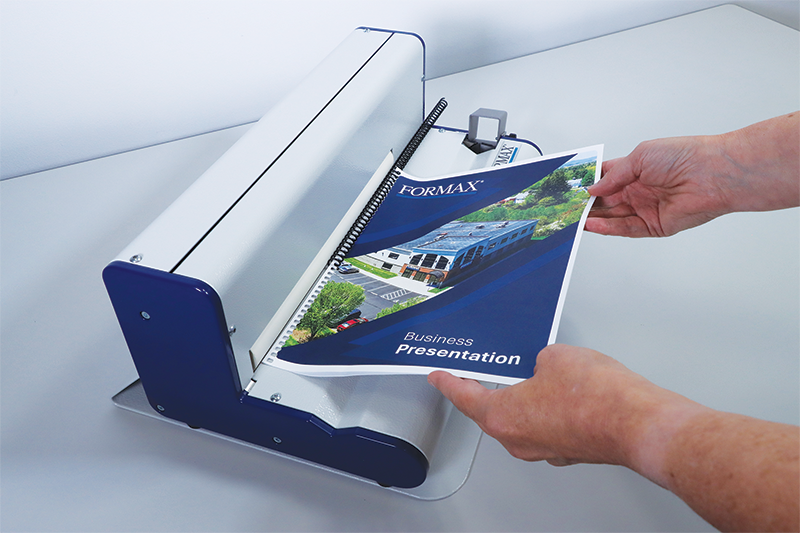

The Coil100 works with coil elements from 6-20mm independent of pitch. The easy-to use electric rubber roller threads the coil through the document quickly and effectively. The roller includes an automatic stop feature for operator safety. Its convenient integrated coil cut and crimp unit gives the perfect finish to your document and crimps the plastic coil at a 45 degree angle. Plastic coils are incredibly durable and allow documents to be opened completely flat or folded back on themselves for convenient viewing.

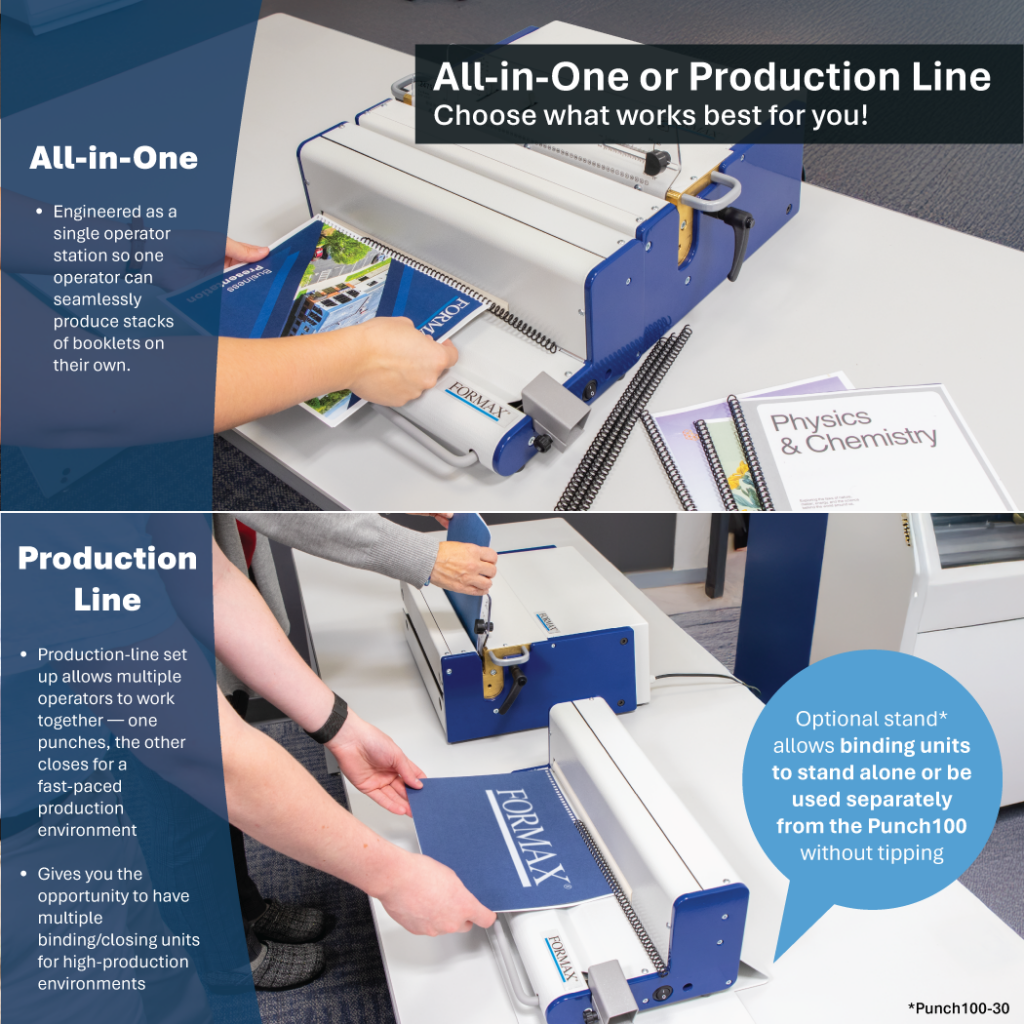

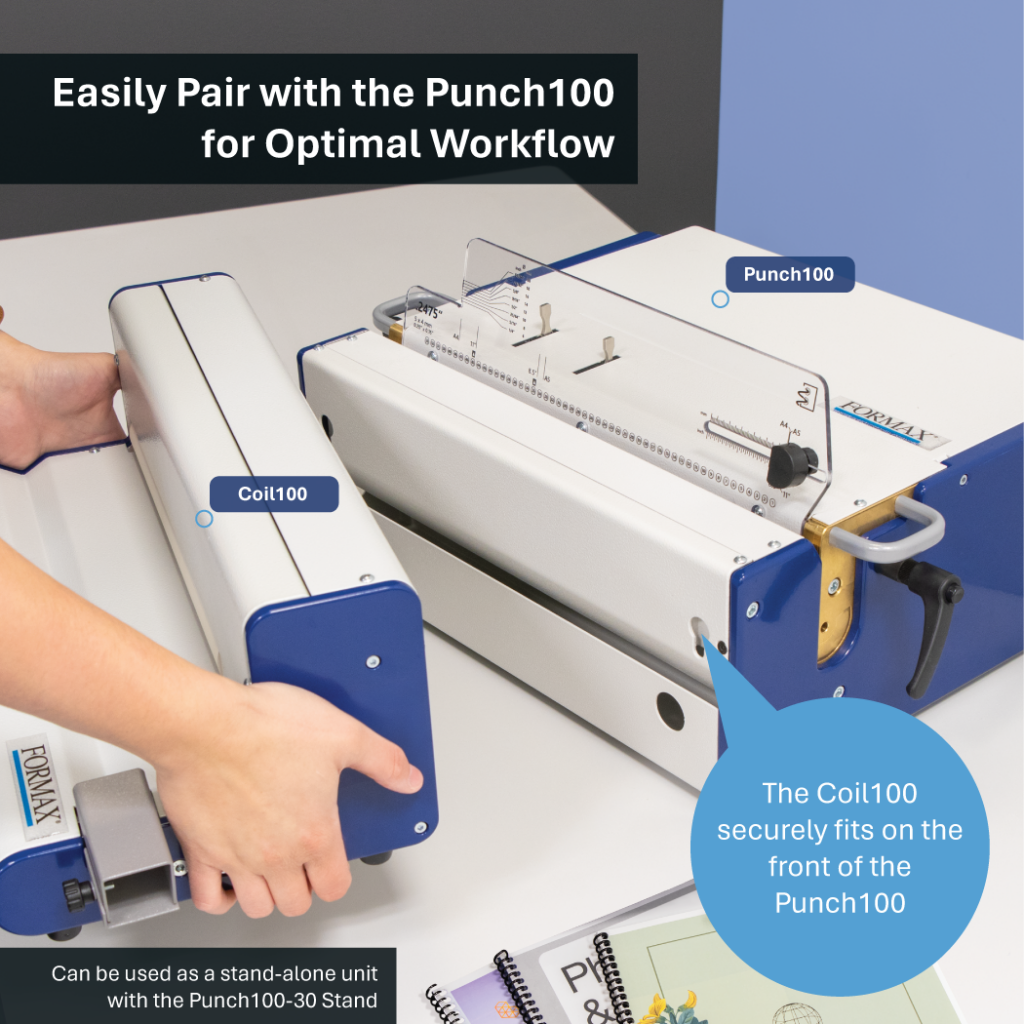

For seamless punching and binding operation, simply attach the Coil100 to the front of the Punch100 using the integrated mounting pins. The Punch100-30 support stand is required for stand-alone use.
Product Downloads
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| SKU | BESCOIL100 |
| Binding Type | Coil |
| Binding Operation | Electric insert, manual crimp & cut |
| Pitch | .25” (6mm) |
| Binding Thickness | .04 - .62” (1-16mm) |
| Minimum Width | .39” (10mm) |
| Maximum Width | 13.4” (340mm) |
| Coil Diameter | 1/4 - 3/4” (6-20mm) |
| Speed | Up to 80 books/hr |
| Power | 115V, 60Hz, 90W |
| Dimensions | 17.7” L x 4” D x 6.3” H |
| Weight | 21 lbs. |
