Formax Atlas Air Feed Folder

Formax Atlas Air Feed Folder

Capabilities

  • Max Paper Weight: 244.56 g/m²  /  65# Bond  /  135# Index    Click for Complete Conversion Chart
  • Max Paper Size: 14.3" x 26.5"
  • Min Paper Size: 5.5" x 6.2"
  • Paper Type: Non Glossy and High Gloss Paper, Coated and Non Coated Stock
  • Speed: 27,000 sheets/hour
  • Duty Cycle: Commercial Grade
  • Adjustment: Manual
  • Feed type: Air
  • Multi-sheet: No

Features of the Formax Atlas

  • 6 Pre Programmed Folds:  Letter, Zig-Zag, Gate, Half, Fold-Out, Double Parallel

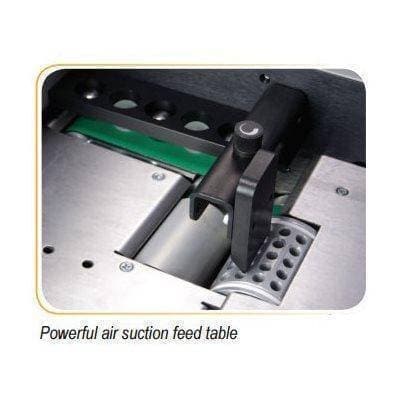

  • Air suction feed table
  • Sheet capacity: up to 500 sheets 22#bond





Regular price
$11,295.00
Sale price
$11,295.00
Unit price
per


SKU: BESFDATLAS ISBN: 096224644038
Request A Quote

Secured & Safe Checkout :

trust badge

Video for the Formax Atlas Air Feed


Description of the Formax Atlas Air Feed Folder

The fast and efficient Formax Atlas Air Feed Document Folder is perfect for print shops that need a high volume folder but have minimal space. This sturdy, powerful folder can process a maximum 27,000 sheets per hour. The Atlas makes job set up quick and easy with six standard folds that come preset in letter, legal and ledger paper sizes giving you 18 preset options.

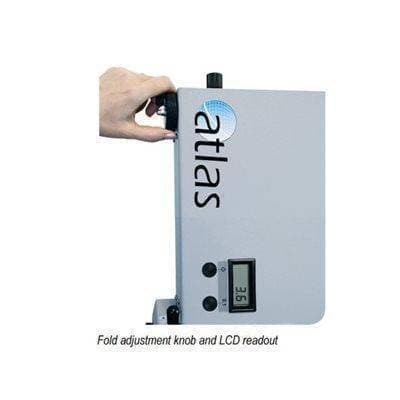

Simple to use dials with an LED display adjust and set the fully enclosed fold plates with a 0.1mm level of accuracy. A powerful air-suction feed table allows the Atlas to handle a wide variety of paper stocks, both coated and non-coated, in sizes up to 25.5 inches long. The smart design of the Atlas places the infeed table on the same side as the outfeed stacker for faster loading and unloading from the same position. The fold rollers on the Atlas consist of a composite material that can grip even high gloss stock and they are housed in a pull out cassette for easy access.

For more versatility, the Atlas includes a perforator / scorer that easily plugs in when needed and also acts as a roller bypass for cover stock to be folded but delivered flat. Other features that add to the Atlas's reliable performance include skew and micro adjustments for accurate precise folds, a programmable batch counter, anti-static brushes for better paper feeding, and a double document detector which prevents jams caused by double fed papers.

FOLD TYPES

Letter/Tri/C FoldHalf/Single FoldZ/Accordion/Zig Zag FoldDouble Parallel FoldGate/Brochure FoldEngineering/Short Z/Fold-Out/Half-Accordion Fold

Manufacturer Name Formax
Model # Atlas
Feed Type Air-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity Up to 500
Fold Speed 27,000 sheets/hour
Fold Types Letter Fold, Half Fold, Gate Fold, Double Parallel Fold, Zig Zag, Fold Out
Pre-programmed Standard Folds 6
Variable Speed Yes
Counter Yes
Accepted Paper Sizes 6.2'' x 5.5'' to 26.5'' x 14.3''
Accepted Paper Weights Up to 90# bond
Weight 265 lbs.
Height 50.4''
Width 45.9''
Depth 19.4''
Voltage 220 Volts; other voltages available
Warranty

Shipping Weight 280.00
Shipping Length 60
Shipping Width 22
Shipping Height 52
Search Terms formaxfdatlas, formaxfd, formaxatlas, formaxfdatlasfolder, formaxfdfolder, formaxatlasfolder, fdatlasfolder, fdatlas, fd-atlas, formaxfolder

FOLD TYPES

Letter/Tri/C FoldHalf/Single FoldZ/Accordion/Zig Zag FoldDouble Parallel FoldGate/Brochure FoldEngineering/Short Z/Fold-Out/Half-Accordion Fold
