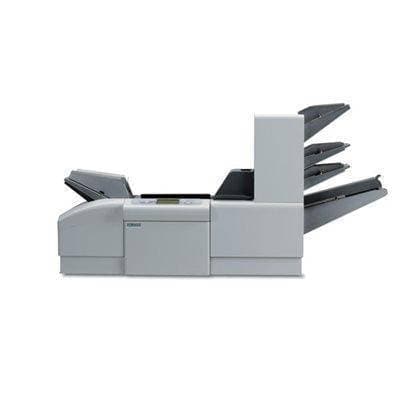

Formax FD 7100 Basic 3 Folder Inserter (DISCONTINUED)

Formax FD 7100 Basic 3 Folder Inserter (DISCONTINUED)

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the 7100 Formax Paper Inserter

  • Three Sheet Feeder Module with Daily Mail (3 plate folder)
  • Speed of up to 4,500 inserts/hour
  • Duty cycle: 150,000 pieces/month
  • Automatic job set-up
  • 20 programmable jobs
  • Sheet feeder capacity of up to 500 sheets
  • Envelope feeder capacity of up to 400 envelopes
  • Fold types: C, Half, Z, double parallel and no fold
  • Folds up to 8 sheets of paper (20 lb)
  • Processes mail pieces up to 1/4" thick
  • Accommodates top, middle and bottom address positions with 3-plate folder

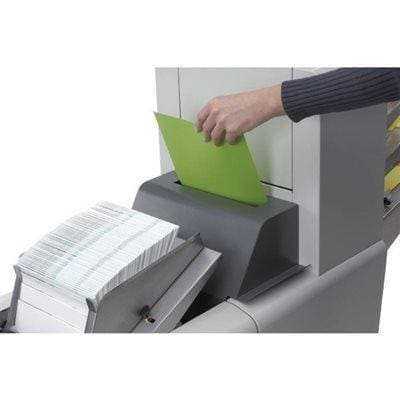

  • Dedicated hand feed station

There is virtually no mailing need the Formax 7100 folder inserter can't meet. Quickly producing high quality pieces and utilizing a modular design, this folder inserter is an efficient unit with the ability to meet versatile, ever-changing demands.

Regular price
Sold out
Sale price
Unit price


Have questions?
Call us at (800) 243-9226

Secured & Safe Checkout :

trust badge

Description of the Formax 7100 Folder Inserter

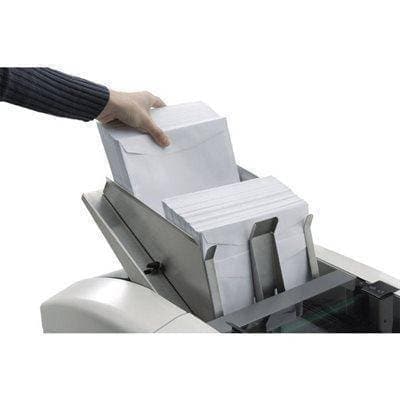

There is really no mailing need the Formax 7100 folder inserter can't meet. It produces high-quality pieces in minutes, with a speedy rate of 4,500 inserts an hour. This flexible unit utilizes a modular design, allowing for to add or subtract 1 to 9 feed stations to meet changing business demands. There are 3 base models available to meet your needs. The top-loading envelope hopper holds up to 400 envelopes, and production flows smoothly with this system. The top feed trays hold 500 sheets, and the bottom one holds 250. To maximize output, feeders can be linked with the Cascade Mode, making total capacity 750 sheets.

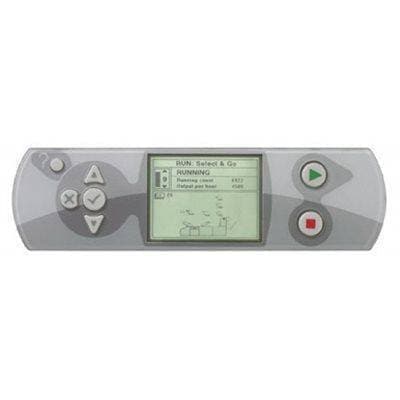

Even up to 8 stapled sets of sheets are easily accepted, with the Daily Mail mode. The 7100 inserter's convenient multi-feeding capability allows a set number of sheets to be taken from one feeder, then collated and inserted automatically. You can easily get a feel for the setup and operation, with the compact design and accessible paper path. Furthermore, 20 jobs can be stored for quicker processing, and there is a detailed control panel. The powerful Formax 7100 is an efficient folder inserter with high capability to meet virtually any demand.

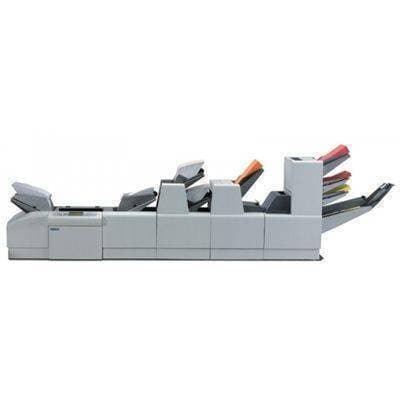

  • Incredible flexibility; you can get it with up to 9 feed stations.

Manufacturer Name Formax
Fold Types Half Fold, C Fold, Z Fold, Double Parallel Fold, No Fold
Speed 4,500 pieces/hour
Max Number of Full Page Inserts 8 sheets
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6" - 10.38" W x 3.5" - 6.5" H
Accepted Paper Sizes 5 1/2" - 9" W x 5 1/2" - 16" L
Duty Cycle 150,000
Envelope Feed Hopper Capacity Up to 400
Programmable Presets 20
Model # 7100
Compare with: Neopost DS-100, Hasler PS100, Pitney Bowes DI900, Secap SI5200
Weight 715 lbs.
Height 59''
Width 130''
Depth 21''
Voltage 110 Volts; other voltages available

Shipping Weight 715.0000
