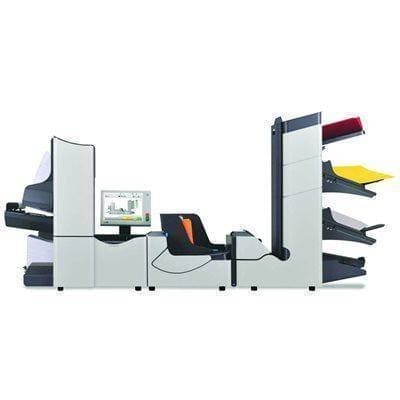

Formax FD 6606 Special 6 Station Folder Inserter (Discontinued)

Formax FD 6606 Special 6 Station Folder Inserter (Discontinued)

  • SKU: BESFD6606SP6
Sale price
Limited availability.
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Basic Specs of the Formax FD 6606 Special 6 Station Folder Inserter

  • 6 station inserter with standard feeders
  • Processes up to 4,300 pieces an hour
  • 7 feed stations
  • Duty cycle of up to 80,000 items a month
  • Top-loading hopper holds up to 500 envelopes
  • High-capacity document feeder holds 725 sheets
  • Vertical output stacker holds up to 500 filled envelopes
  • Barcode Recognition
  • Optical Mark Recognition
  • Optical Character Recognition
  • 10.4" full-color touchscreen control panel
  • 50 programmable jobs
  • AutoSet one-touch setup
  • Energy-saving standby mode
The Formax 6606 Special 6 Folder Inserter offers six stations and standard feeders. Capable of processing up to 4,300 pieces per hour, the FD 6606 features a color touch screen control panel for easy setup and operation!

Video of the FD 6606 Series Folder Inserter

Description of the Formax FD 6604 Special 6 Folder Inserter

The Formax FD 6606 series replaces the 6604 series and tedious labor. Instead of constantly feeding a smaller folding machine or manually stuffing envelopes, the FD 6606 Special 6 is especially designed for handling heavy duty loads without inconveniencing users. The 6606 Special6 can fold and insert top, middle and bottom-address documents into top-flap envelopes after folding, and has many more features that come standard with every FD 6606 model. The Special 6 model has 4 standard feeders (hold 325 sheets) and 2 special feeders (for glossy or thick paper stock) that load a huge volume of paper. Process a whopping 80,000 pieces per month (at 4,300 pieces an hour) with very little effort.

With the reversible full-color touchscreen control panel with a graphical interface, users can view and control the 6606 with ease. With the touch screen, users can see the activity of the 6606 and program up to 50 memory presets. The one-touch AutoSet function makes set-up a breeze. Presence sensors calculate paper dimensions that appear on the control panel, then just select a setting. Users select options of folding, collating, and/or sealing envelopes for their mailers, and can even fold multiple sheets at once. Stacks and envelopes placed in the feeders are automatically detected (density, color, thickness, length) so users can insert any kind of form (letter, check, invoices ¦) and do not have to manually configure the machine. Cascade mode connects feeders with the same document for faster, continuous feeding. As soon as one feeder is empty, the 6606 immediately starts feeding from the next without any interruption or interference.

With optional features such as Barcode Recognition (BCR) and Optical Mark Recognition (OMR) (featuring CIS scanning technology), the Special6 can scan codes anywhere on the document. Optical Character Recognition (OCR) uses page numbering to place sequenced documents in order, meaning users can simply insert multiple paged documents. This means there is no manual collating required prior to using the 6606 and users have one less task to pursue. The daily mail mode allows the insertion of stapled documents as well. But in the event of an incomplete set, the 6606 diverts it so it isn't inserted into an envelope. Other detectors include Double Document sensor, which makes sure single sheet mailers aren't doubled up when inserted into envelopes. A diverter redirects doubled or uncollated items so users don't have to. And just to make things even easier, it engages automatic energy-saving mode after an hour of inactivity. Save time and energy without having to do much at all. All you have to do is load the feeders, select settings, and then let the 6606 work. Once the process is complete, the vertical output stacker holds up to 500 filled envelopes and users can remove neatly stacked pieces, ready for mailing or distribution.

Compare the Special 6 to the other 6606 models to find the right feeder load and price for your needs. Each model is available in Standard and Special versions.

Manufacturer Name Formax
Fold Types Half Fold, C Fold, Z Fold, Double Parallel Fold, No Fold
Speed 4,300 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 725
Accepted Envelope Sizes 5.5" - 9.8" W x 3.5" - 6.4" H
Accepted Paper Sizes 5" - 9" W x 3 1/2" - 14" L
Duty Cycle 80,000
Envelope Feed Hopper Capacity Up to 500
Model # 6606
Weight 308 lbs.
Height 36''
Width 63''
Depth 18''
Voltage 110 Volts; other voltages available

Shipping Weight 308.0000
