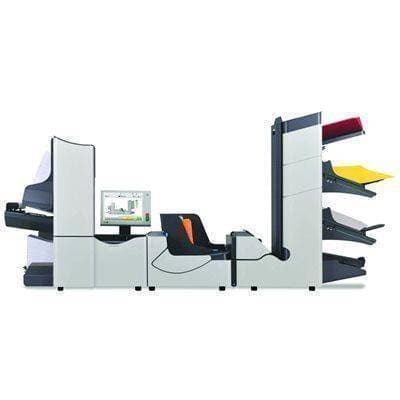

Formax FD 6606 Special 4 Station Folder Inserter

Formax FD 6606 Special 4 Station Folder Inserter

https://www.youtube.com/watch?v=NEwGVl2Epu4

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Basic Specs of the Formax FD 6606 Special 4 Station Folder Inserter

  • 4 station inserter with standard feeders
  • Processes up to 4,300 pieces an hour
  • 2 special feeders and 2 standard feeders
  • Duty cycle of up to 80,000 items a month
  • Top-loading hopper holds up to 500 envelopes
  • High-capacity document feeder holds 725 sheets
  • Vertical output stacker holds up to 500 filled envelopes
  • Barcode Recognition
  • Optical Mark Recognition
  • Optical Character Recognition
  • 10.4" full-color touchscreen control panel
  • 50 programmable jobs
  • AutoSet one-touch setup
  • Energy-saving standby mode

The Formax 6606 Special 4 Folder Inserter offers power and efficiency. Capable of processing up to 4,300 pieces per hour, the FD 6606 features a color touch screen control panel for easy setup and operation!




Regular price
$43,395.00
Sale price
$43,395.00
Unit price
per


SKU: BESFD6606SP4 ISBN: 096224642645
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the FD 6606 Series Folder Inserter


Description of the Formax FD 6606 Special 4 Folder Inserter

Much like the Standard 5, the FD 6606 Special 5 Inserter is a high volume inserter with 5 feeders. But instead of 5 standard feeders, the Special5 has 2 special (for glossy/thicker stock), 2 standard (each holds 325 sheets) , and 1 high capacity feeder (holds 725 sheets). The variety of feeders enables a different total feeder capacity than other models. The Special 5 is able to process the same 4,300 pieces per hour (and 80,000 per month) just as the other models can. And just like the other 6606 inserters, the Special 5 offers an easy-to-use interface with the LCD color touch screen control panel. View immediate feedback from detectors on the screen and easily choose a programmable preset for a variety of tasks. Save up to 50 different jobs with any configuration (fold type, multiple sheets, stapled items, optional thin booklet) for the one-touch AutoSet function process and never be subjected to manual folding and inserting. And with presence sensors, paper dimensions are automatically detected and displayed on the control panel so users can choose proper settings. At a rate of 4,300 envelopes per hour, user can process up to 80,000 pieces per month. And not only does the 6606 handle folding and inserting single piece mailers, it also fold multiple sheets, collates, and seals envelopes.

Single sheets are folded and inserted in no time at all, perfect for any invoice, check, or letter. For single sheets, the Double Document detector makes sure there are no doubled sheets, and diverts any that are so users do not have to interfere or work to find a faulty piece. Multi-paged stacks can be folded and inserted just as single sheets are and users can choose scanning options to help with collating. Multi-paged packets do not need to be manually collated before placed into feeders. Optional CIS scanning technology used in the BCR, OMR, and OCR functions helps to scan entire documents for codes and/or page numbers for automated collating. Documents are folded according to the selected preset and are ejected once inserted into envelopes. Then simply remove finished envelopes from the output hopper where a neat stack of up to 500 envelopes waits. And just in case the Special5 is left idle for more than an hour, it will automatically enter standby mode to save energy. The FD 6606 Special 5 is a high quality high-volume inserter built to ease high-quantity mailer processing for users.

The FD 6606 Special 5 Inserter is one of many FD 6606 inserters. Each model differs in the number of and types of feeders. Choose the right model for your office needs.


Manufacturer Name Formax
Fold Types Half Fold, C Fold, Z Fold, Double Parallel Fold, No Fold
Speed 4,300 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 725
Accepted Envelope Sizes 5.5" - 9.8" W x 3.5" - 6.4" H
Accepted Paper Sizes 5" - 9" W x 3 1/2" - 14" L
Duty Cycle 80,000
Envelope Feed Hopper Capacity Up to 500
Model # 6606
Weight 308 lbs.
Height 36''
Width 63''
Depth 18''
Voltage 110 Volts; other voltages available
Warranty

Shipping Weight 308.0000
