Formax FD 6404-Standard 5F Folder Inserter

Formax FD 6404-Standard 5F Folder Inserter

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the Formax FD 6404-Standard 5F Folder Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications

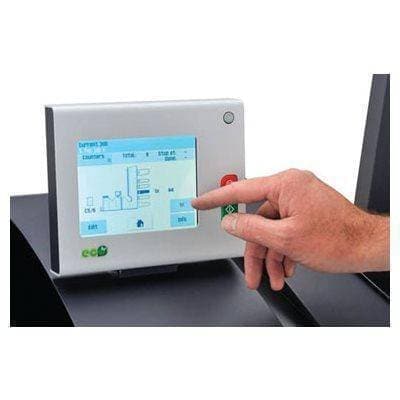

  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • water level detection
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

A Formax 6404 folder inserter is easy-to-use functionality and sublimely flexible. It works on a variety of paper lengths and thickness and will fold or insert at remarkable speeds.

Regular price
Sale price
Unit price

SKU: BESFD6404STD5F ISBN: 096224657274
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax FD 6404-Standard 5F Folder Inserter

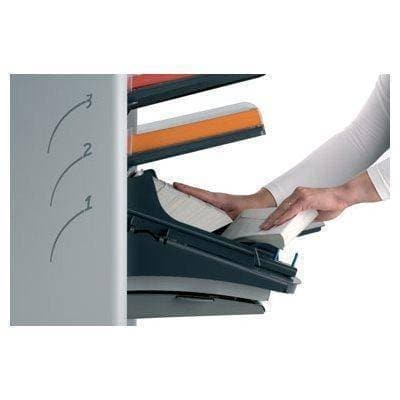

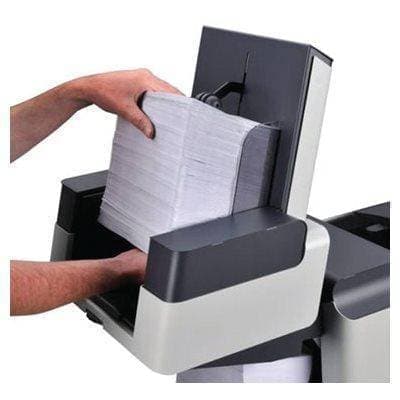

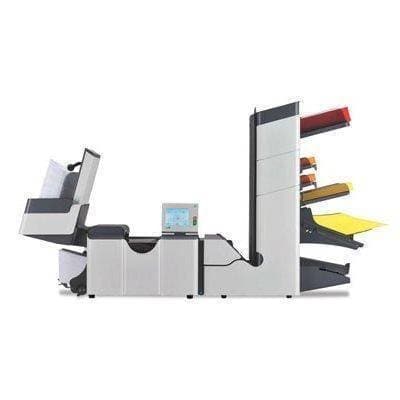

This five station Formax FD 6404-Standard 5F inserter is equipped with 4 Standard Feeders and 1 High Capacity Document Feeder. Featuring a full-color touchscreen control panel, the 6404 is easy to setup and operate. With a few simple steps, your project is setup and ready to go. Formax's standard AutoSet automatically detects lengths and sizes before configuring proper settings for your project. Five different fold types are available: C, Half, Z, Double Parallel and no fold. The high-capacity document feeder accommodates up to 725 sheets at a time. Each standard feeder holds 325 sheets. With such an incredible capacity, the 6404 guarantees efficiency and a high output. In one hour, the 6404-Standard 5F processes 4,000 pieces. Unlike smaller inserters, the 6404 provides a large reverse-output power stacker which holds up to 500 completed envelopes. The energy-saving mode allows you to walk away from the machine without worry that it will overheat. The powerful system folds up to 10 sheets in half-fold and up to 8 sheets in tri-fold mode.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
