Formax FD 6404-Standard 4 Folder Inserter (DISCONTINUED)

Formax FD 6404-Standard 4 Folder Inserter (DISCONTINUED)

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the Formax FD 6404-Standard 4 Folder Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications

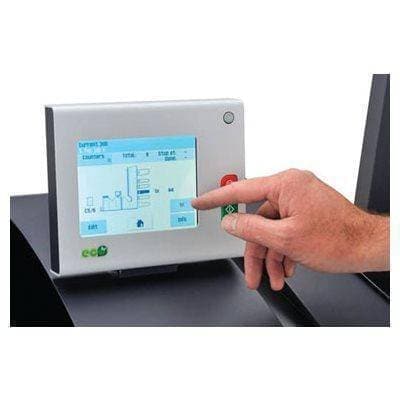

  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • water level detection
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

A Formax 6404 folder inserter merges easy-to-use functionality and sublime flexibility. It processes a variety of paper lengths and thickness and will fold or insert at remarkable speeds.

Regular price
Sold out
Sale price
Unit price
ISBN: 096224640146

Have questions?
Call us at (800) 243-9226

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax FD 6404-Standard 4 Folder Inserter

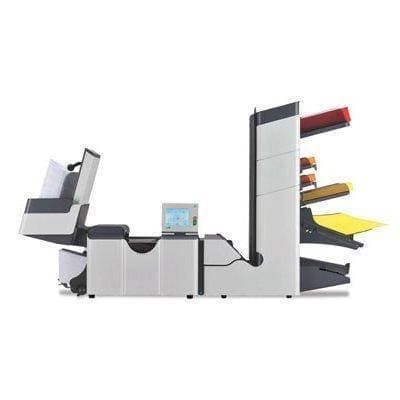

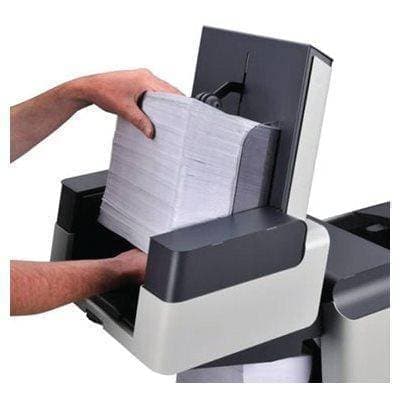

The Formax FD 6404-Standard 4 is a four-station inserter with 4 standard feeders. As each of these sheet feeders accept 325 sheets of paper, this 6404 inserter can process up to 1,300 sheets at a time. With 5 different fold types, the 6404 can fold up to 10 sheets of paper (half-fold) and up to 8 sheets (tri-fold). If you are busy with multiple projects, feel free to walk away from the 6404 while it is operating. After an hour of inactivity, the energy saving mode shuts off the inserter's power. Each 6404 comes with a large power stacker to accommodate 500 envelopes as well as a top-loading envelope hopper to hold 325 for continuous operation. This dominating folder-inserter processes up to 4,000 envelopes per hour. In order to keep your 6404 running in top condition, the recommended duty cycle is 60,000 pieces per month. A high-tech color touchscreen panel flips around for easier accessibility and is completely easy to use. The 6404 automatically senses paper length, envelope size, and fold length and sets up thanks to the AutoSet function. Capable of inserting into envelopes up to 6.3" H x 9.7" W, the 6404 handles paper sized up to 3.5" - 14" L x 5.1" - 9" W.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
