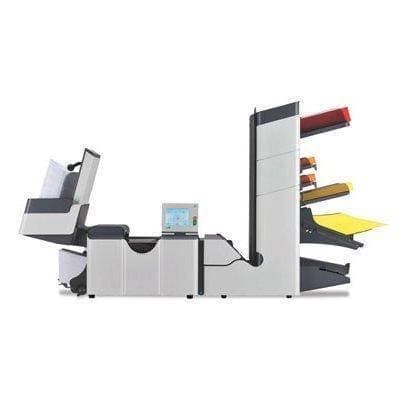

Formax FD 6404 Standard 3F Folder Inserter (DISCONTINUED)

Formax FD 6404 Standard 3F Folder Inserter (DISCONTINUED)

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the Formax FD 6404 Standard 3F Folder Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications

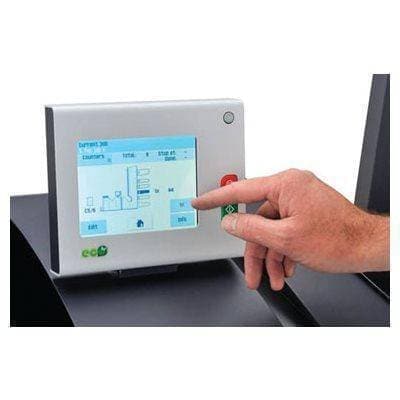

  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • water level detection

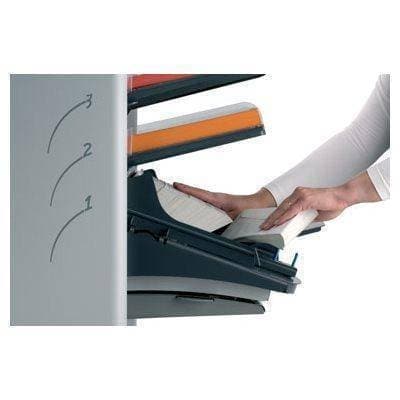

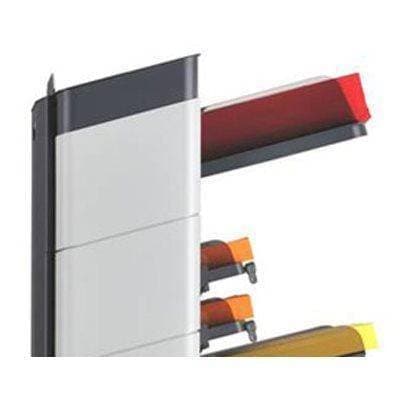

  • High-Capacity VerticalOutput Stacker
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

A Formax 6404 folder inserter is a combination of easy-to-use functionality and flexibility. It processes a variety of paper length and thicknesses and will fold or insert them at remarkable speeds.

Regular price
Sold out
Sale price
Unit price

SKU: BESFD6404STD3F ISBN: 096224655898
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax FD 6404 Standard 3F Folder Inserter

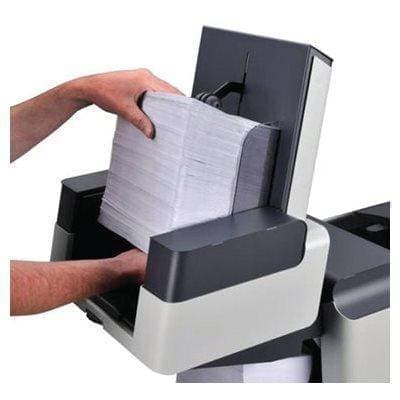

With 1 high-capacity document feeder and 2 standard feeders, the Formax 6404-Standard 3F Inserter offers amazing flexibility and power. The high-capacity document feeder holds up to an incredible 725 sheets of paper at a time. Replacing the 6402, the 6404 offers optional 1 or 2 Production Feeders, which each hold up to 1,200 sheets or 325 BREs. The color touchscreen control panel allows the user to flip it and reverse it, enabling dual side usage. Each 6404-Standard 3F processes 4,000 pieces per hour and has a recommended duty cycle of 60,000 pieces per month. For recurring or frequent inserting jobs, the Standard 3F allows you to up to program 25 jobs into memory. The AutoSet functions aids in a speedy setup, as it instantly measures paper length, envelope size, and fold length. The two standard feeders hold 325 sheets in each feeder for a total of 650 sheets. This high-capacity inserter also features an energy-saving mode, which cuts off power after an hour of inactivity.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404 Standard 3F
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
