Formax FD 6404-Special 5F Folder Inserter (DISCONTINUED)

Formax FD 6404-Special 5F Folder Inserter (DISCONTINUED)

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the Formax FD 6404-Special 5F Folder Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications

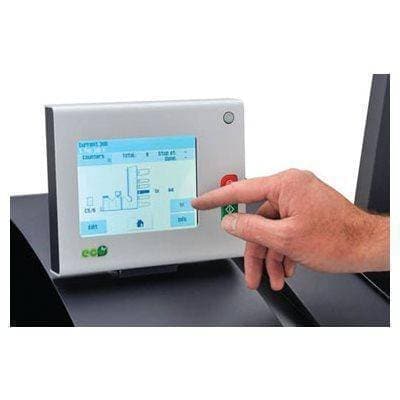

  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • water level detection
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

The Formax 6404 folder-inserter is a perfect blend of ease-of-use and flexibility. It works on a wide variety of paper length and thicknesses and it will fold or insert them at remarkable speeds.

Regular price
Sold out
Sale price
Unit price

SKU: BESFD6404SPEC5F ISBN: 096224658967
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax FD 6404-Special 5F Folder Inserter

For high volume mailing projects, you cannot go wrong with Formax FD 6404-Special 5F. As a five station inserter, the 6404-Special 5F comes with 2 Special Feeders, 2 Standard Feeders and 1 High Capacity Document Feeder. A top-loading envelope hopper holds up to 325 envelopes. For convenience, a large output stacker accommodates up to 500 of your finished envelopes. The full-color touch screen control panel offers excellent clarity and ease-of-use. This control panel makes setup simple, as it allows you to store up to 25 frequently used jobs, program seal/non-seal options, and displays water level. Save energy and money thanks to the energy saving mode, which shut off the 6404 after one hour of inactivity. Each special and standard feeder holds up to 325 sheets at a time. These four feeders alone handle a total of 1300 sheets. Add the high capacity document feeder, which holds 725 sheets, and you have a highly capable, powerhouse inserter.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
