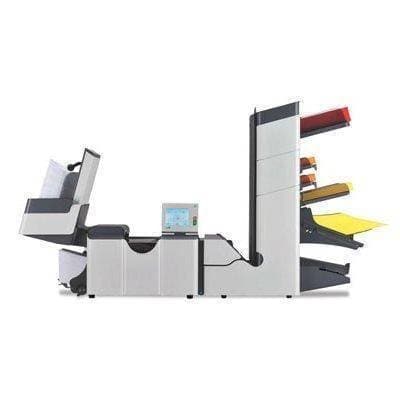

Formax FD 6404-Special 3F Folder Inserter

Formax FD 6404-Special 3F Folder Inserter

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the 6404 Formax Paper Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications
  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • water level detection
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

The Formax 6404 inserter: a fantastic combination of easy-to-use features and flexibility. It processes a variety of paper length and thicknesses and will fold or insert them at remarkable speeds.

Regular price
Sale price
Unit price

SKU: BESFD6404SPECIAL3F ISBN: 096224649972
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax 6404 Folder Inserter

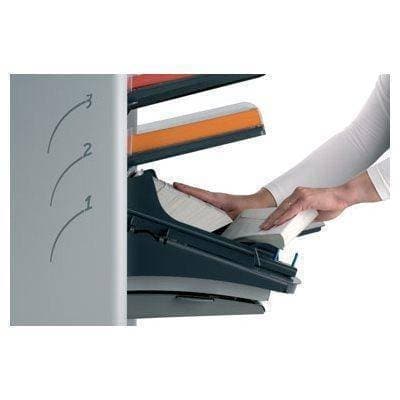

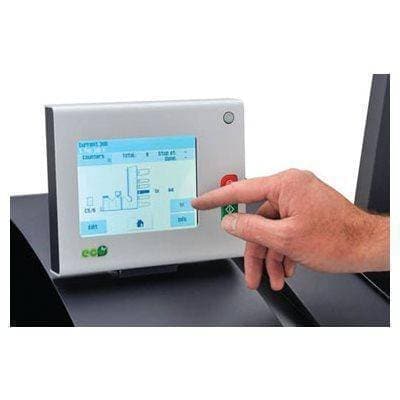

As a three station inserter, the FD 6404-Special 3F comes equipped with 1 Special Feeder, 1 Standard Feeder and 1 High Capacity Document Feeder. Both the special and standard feeders are capable of holding up to 325 sheets at a time, allowing you to process a total of 650 sheets with these feeders alone. The high-capacity document feeder holds an incredible 725 sheets. High-capacity decreases the amount of time you have to reload the 6404, saving you time and effort. The user-friendly color touchscreen can be reversed and used on opposite sides. This control panel indicates operational status and allows you to program up to 25 jobs into memory. For fast and effective setup, the AutoSet mode is ideal. By automatically sensing paper length, envelope size, and fold length, the AutoSet function configures the appropriate settings before processing your job. Choose between sealing and non-sealing options depending on your project. Double documentation detection ensures that your inserting project will remain secure. A special Diverter offers sensors that redirect double documents and incomplete sets without interrupting or complicating your project. In regards to the folding capabilities, the 6404-Special 3F is capable of folding up to 10 sheets of paper in Half-fold and up to 8 sheets in Tri-fold.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
