Formax FD 6404 Special 2 Folder Inserter (DISCONTINUED)

Formax FD 6404 Special 2 Folder Inserter (DISCONTINUED)

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the Formax FD 6404 Special 2 Folder Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications
  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • water level detection
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

The Formax 6404 inserter is a great combination of easy-to-use features and flexibility. It can process a variety of paper length and thicknesses and will fold or insert them at remarkable speeds.

Regular price
Sold out
Sale price
Unit price

SKU: BESFD6404SPEC2 ISBN: 096224656109
Request A Quote

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax FD 6404 Special 2 Folder Inserter

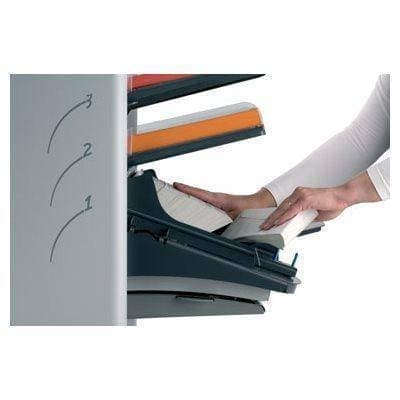

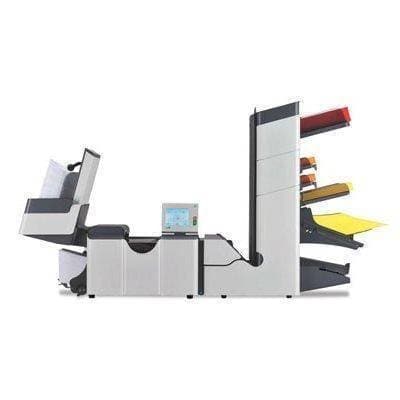

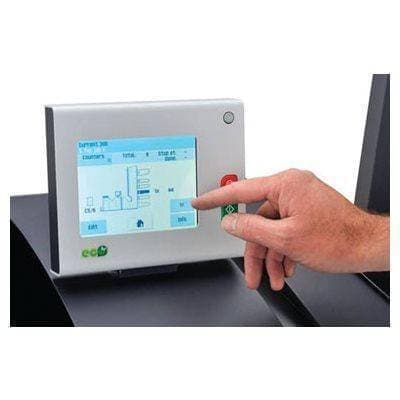

The Formax 6404-Special 2 is a two-station inserter equipped with 1 standard feeder and 1 special feeder located at the bottom. The full-color touchscreen offer insight on your inserter's operational status. This flexible control panel flips down and reverses for use on the opposite side. The standard and special feeders each hold up to 325 sheets of glossy or thick stock. This means the Formax 6404-Special 2 processes up to 650 sheets in one cycle. The large envelope hopper also holds 325 envelopes at a time and produces 4,000 completed pieces each hour. The AutoSet function makes setup for the 6404 extremely easy. By automatically measuring paper length, envelope size, and fold length, the AutoSet properly configures the settings for you. The 6404-Special 2 allows you to program up to 25 jobs, perfect for recurring or frequently used jobs. The automatic envelope sealing option can also be saved in programmed jobs. Protect against double-documentation thanks to the double-document detector. A special diverter redirects double documents and incomplete sets without interrupting your whole project.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
