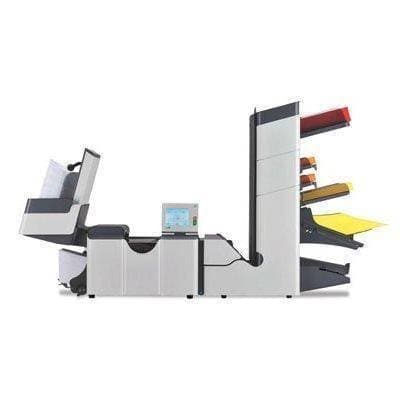

Formax FD 6404 Standard 2 Folder Inserter (DISCONTINUED)

Formax FD 6404 Standard 2 Folder Inserter (DISCONTINUED)

*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.

Features of the 6404 Formax Paper Inserter

  • 2 - 6 fully-automatic feed stations
  • Speed of up to 4,000 envelopes/hour
  • Duty cycle: 60,000 pieces/month
  • AutoSet one-touch setup
  • Fully automatic adjustments
  • 25 programmable fold applications

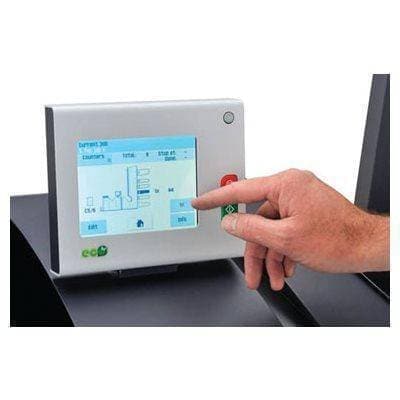

  • Color touch-screen control panel is easy to use
  • diverter
  • Longer lasting foam rollers
  • Seal and non-seal capabilities
  • Water level detection
  • 4 adjustable insert fingers
  • Double document detection
  • Folds and inserts up to 10 pages in half-fold, up to 8 pages in tri-fold
  • Fold types: C, Half, Z, Double Parallel and no fold

The Formax 6404 folder inserter is a smooth combination of easy-to-use features and flexibility. It can process a variety of paper length and thicknesses and will fold or insert them at remarkable speeds.

Regular price
Sold out
Sale price
Unit price
ISBN: 096224643420

Have questions?
Call us at (800) 243-9226

Secured & Safe Checkout :

trust badge

Video of the FD 6404 Series Folder Inserters

Description of the Formax 6404 Folder Inserter

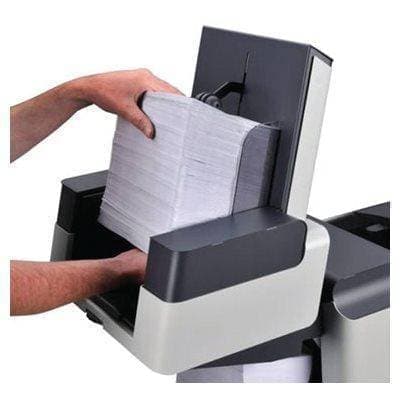

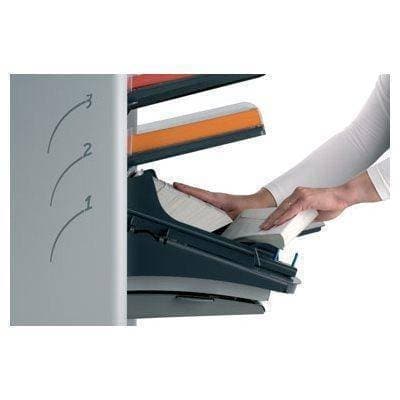

The Formax 6404-Standard 2 Inserter is a two station inserter that comes equipped with 2 standard feeders. Replacing the 6402 series, the 6404 offers even greater flexibility and efficiency. The full-color touchscreen control panel flips down and reverses so that you can use it on both sides. These two standard feeders accommodate up to 325 sheets per feeder, overall handling 650 sheets at a time. Program up to 25 recurring and frequently used jobs thanks to the high capacity memory. Set up for the Formax 6404 is a breeze. The AutoSet function automatically detects paper length, envelope size, and fold lengths and configures the settings accordingly. The large, top-loading envelope hopper holds 325 envelopes and can be loaded on-the-fly for continuous operation. The 6404-Standard 2 processes up to 4,000 pieces per hour and has a recommended duty cycle of 60,000 pieces per month. Protect the integrity of your documents with the double document detection.

Manufacturer Name Formax
Fold Types C, Half, Z, Double Parallel and no fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets (half fold); 8 sheets (tri fold)
Feed Tray Capacity Up to 500
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 3.5" - 14" L x 5.1" - 9" W
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 6404
Weight 242.00
Voltage 100 Volts; other voltages available

Shipping Weight 340.0000
Shipping Length 48
Shipping Width 40
Shipping Height 43
