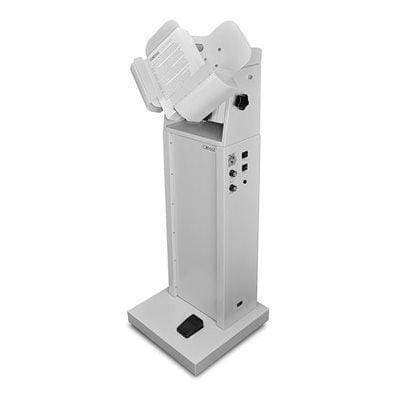

Formax FD 404 A1 Air Jogger
Formax FD 404 A1 Air Jogger
Formax FD 404 A1 Air Jogger Joggers Formax

Formax FD 404 A1 Air Jogger
Formax FD 404 A1 Air Jogger Joggers Formax

Formax FD 404 A1 Air Jogger

  • SKU: BESFD404A1
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Basic Specs of the Formax FD 404 A1 Air Jogger

  • Type: Single-bin
  • Number of Bins: 1
  • Bin Size: 3.75" D x 20.375" W
  • Sheet Capacity: Up to 940 sheets 20#
  • Electrical: 110 V/120 V, 50/60 Hz
  • Dimensions: 18" L x 21" W x 54" H
  • Weight: 100 lbs.

Features of the Formax FD 404 A1 Air Jogger

  • The FD 404A1 Air Jogger is ideal for print shops and production houses as it aligns and dries printed sheets in a single process while reducing static electricity.
  • Foot pedal control allows for two-handed loading and unloading.
  • Easy-to-use control panel.
  • Variable speed control and up to 3,000 vibrations per minute.
  • Variable air pressure control up to 29,000 rpm, reduces jogging time.
  • Tilting jog bin is V-shaped, and adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and criss-cross stacked piles.
  • It has high capacity, and jogs up to 940 sheets 20#.
  • 60-second countdown timer is capable of unattended jogging.
  • Operating modes are Vibrate and Air, Air-only and Vibrate-only.
The Formax FD404A1 Jogger will align and separate forms or paper for proper feeding while reducing static electricity.

Video of the Formax FD 404 A1 Air Jogger

Description of the Formax FD 404 A1 Air Jogger

With the Formax FD404A1 jogger, aligning your papers has never been so easy. Documents fresh off the printer can be loaded into the FD404A1 jogger, and aligned and dried in literally seconds. Considered essential equipment for any print shop, mail room, or production area, joggers help reduce static electricity in your documents, lowering the chance that your papers will stick together. The FD404A1 features a foot pedal control, allowing the user to load and unload documents with both hands free. Extremely user-friendly, the FD404A1 offers a handy control panel with features including variable speed control, variable air pressure control (up to 29,000 rpm), on/off/foot button, and timer option. The variable speed control allows for up to 3,000 vibrations every minute. Adjusting air pressure allows the user to reduce jogging time. Need to multitask? Thanks to the 60-second countdown timer, the FD404A1 jogs your documents while you work on a separate task.

Perhaps one of the most impressive features is the design of the bin. The V-shaped bin adjusts from vertical to horizontal to accommodate various applications, including large format paper stacks (reduces bending of these large stacks) or criss-cross stacked papers. This bin holds up to an incredible 940 sheets (20#), perfect for high volume projects, and accommodates a wide variety of paper sizes up to 12" x 18". Weighing in at 100 lbs., the Formax FD404A1 offers dimensions of 21" W x 18" D x 54" H, making this unit no ordinary office jogger. The Formax FD404A1 is perfect for print shops and production areas aiming for high volume processing and is a great time saver.

Manufacturer Name Formax
Number of Bins 1
Max Paper Capacity 940 sheets
Max Paper Size 12" x 18"
Model # FD 404 A1
Height 54"
Weight 100 lbs.
Width 21"
Depth 18"
Voltage 110 Volts; other voltages available

Shipping Weight 175 lbs.
Shipping Length 24
Shipping Width 30
Shipping Height 61


Ask a Question
  • Is there a return policy in place, or a trial period for this equipment?

    Thanks for contacting us! There is no free trial period. Formax typically charges a 25% restocking fee plus the cost of return shipping for any returns. It's always a good idea to hang on to the original packaging for a few days just in case you decide the device isn't for you.
