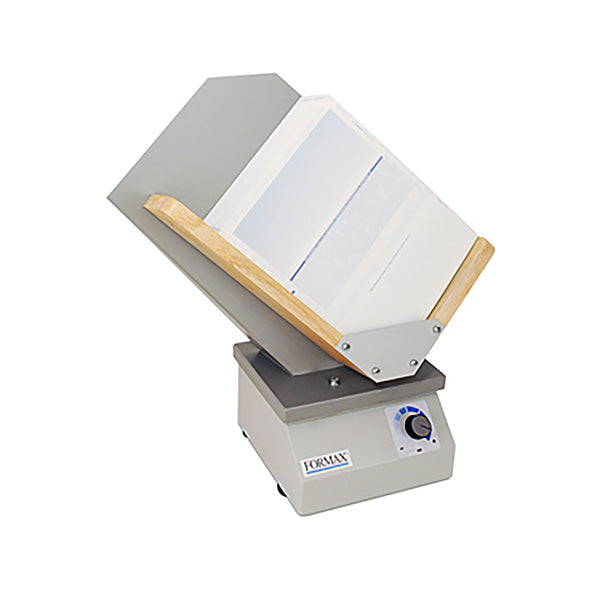

Formax FD 402P1 Jogger
Formax FD 402P1 Jogger Joggers Formax

Formax FD 402P1 Jogger
Formax FD 402P1 Jogger Joggers Formax

Formax FD 402P1 Jogger

  • SKU: BESFD402P1
  • GTIN/UPC: 096224647268
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the Formax FD 402P1 Paper Jogger

  • Variable Speed: Up to 4,000 vibrations/minute
  • Bin Size: 3.5” D x 8.75” W x 15.5” L
  • Media Size: Up to 11” W x 17” L
  • Sheet Capacity: Up to 800 sheets 20#
  • Dimensions: 7.75” W x 19” L x 21” H
  • Voltage: 115 Volts (50/60 Hz) / Export 220 Volts (50/60 Hz)

Features of the Formax FD 402P1 Paper Jogger

  • The paper jogger has 1 bin.
  • The tray size is up to 8.5" x 14."
  • There is a voltage of 115 V.
  • Up to 4,000 vibrations per minute/60Hz operation, aligns paper in seconds.
  • Tilted rack ensures proper jogging of smaller stacks.
  • Slotted clean-outs allow paper dust, staples, paper clips and other debris to exit the jogging bin.
  • Easy-load bin cut-outs allow operators to easily move paper and envelopes in and out of the bins.

Description of the Formax FD 402P1 Paper Jogger

The Formax FD 402P1 jogger is the perfect companion to pressure sealers, inserters, folding machines, paper cutters and any type of binding machine. This compact jogger weighs only 28 lbs. and stands just 21" high but is able to handle up to 800 sheets of 20# paper in sizes up to 11" x 17." The easy to load bin measures 3.5"D x 8.75"W x 15.5"L and even has a center divider for more efficient jogging of smaller paper stacks.

Jogging is an extremely important yet very simple process, it not only creates perfectly aligned stacks but it also reduces static electricity so sheets can be properly fed into other paper handling equipment. The FD 402P1 has a variable speed of up to 4,000 vibrations per second so stacks are aligned within seconds. A solid state control switch allows you to turn the machine on or off as well as adjust the vibration speed and its electromagnetic design allows for continuous operation.

Manufacturer Name Formax
Number of Bins 1
Max Paper Capacity 800 sheets
Max Paper Size 11" X 17"
Model # FD 402P1
Height 21"
Weight 28 lbs.
Width 8"
Depth 18"
Voltage 115 Volts; other voltages available

Shipping Weight 29.0000
