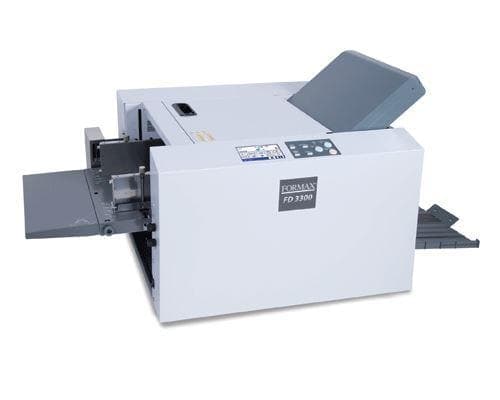

Formax FD 3300 Air Suction Paper Folder (DISCONTINUED)

Formax FD 3300 Air Suction Paper Folder (DISCONTINUED)

Capabilities

  • Max Paper Weight: 230 g/m²  /  61# Bond  /  127# Index    Click for Complete Conversion Chart
  • Max Paper Size:12.24" x 18"
  • Min Paper Size: 4.73" x 7.17"
  • Paper Type: Heavy and coated stock
  • Speed: 15,600 sheets/hour
  • Duty Cycle:Commercial Grade
  • Adjustment: Automatic
  • Feed type: Air
  • Multi-sheet: No

Features of the FD 3300 Air-Suction Folder

  • Variable speed of up to 18,600 sheets/hour
  • Air suction feed technology
  • Sheet capacity: up to 625
  • Paper size:  7.17' - 18' L x 4.73” - 12.24”
  • Paper weight:  up to 85 lb cover
  • Pre-programmed folds:  letter, half, z-fold (fan),fold out, double parallel, and gate





Regular price
Sold out
Sale price
$9,624.08
Unit price
per


SKU: BESFD3300 ISBN: 096224649682
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the FD 3300

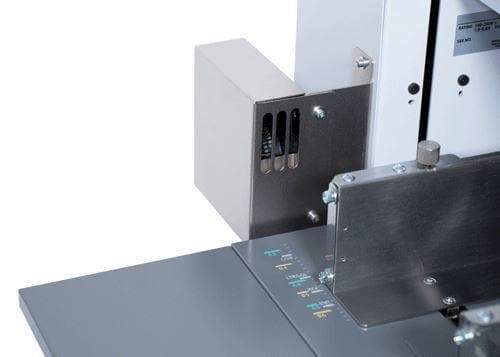

The Formax FD 3300 Air Suction Folder replaces the popular FD 3200 Folder. It offers increased speed and a higher level of performance over its predecessor. The FD 3300 has a feed tray capacity of 625 sheets and will process up to 18,600 sheets per hour and can even handle heavy and coated stock since it utilizes a side air enhanced feeding system. It is pre-programmed with 6 standard folds: C, Z, Half, Fold-Out, Gate, and Double Parallel and the enhanced memory can store up to 30 custom folds.

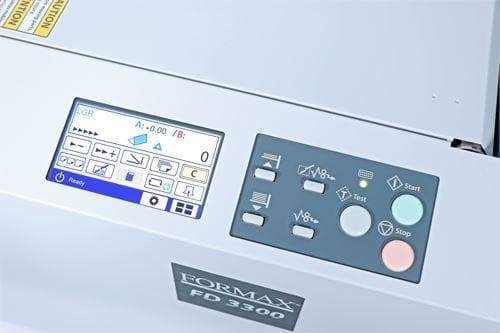

A color, LCD touchscreen control makes set up quick and easy. Automatic Paper Size Detection and Optical and Ultrasonic Double Feed Detection ensures document security. A built in 4-digit counter does batch, addition and interval counting. Other features include enclosed fold plates and built-in fans which provide quieter operation. Seven-point fold stops and four fold rollers provide clean, crisp, precise folds.

Manufacturer Name Formax
Model # FD 3300
Feed Type Air-fed
Fold Adjustment Setting Automatic fold adjustment
Feed Tray Capacity Up to 625
Fold Speed 18,600 sheets/hour
Fold Types C, Z, Half Fold, Fold Out, Gate, and Double Parallel
Pre-programmed Standard Folds 6
Programmable Presets 30
Variable Speed Yes
Counter Yes
Batcher Yes
Accepted Paper Sizes 4.73" to 12.24" W x 7.17" to 18" L
Accepted Paper Weights Up to 230gsm
Weight 149 lbs.
Height 21.5"
Width 24"
Depth 47"
Voltage 100 - 240VAC, 60 Hz
Warranty

Shipping Weight 150.0000
