Formax FD 2200 Series Pressure Sealers (Discontinued)

  • SKU: BESFD2200
Sale price
Limited availability.
Sale price
$77,195.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the 2200 Series Formax Folder Sealers

  • Variable speed of up to 40,000 pieces/hour
  • Duty cycle: production volume
  • Heavy duty construction
  • Feed systems: air, extended air, pile, and continuous forms with in-line Maxi Burster

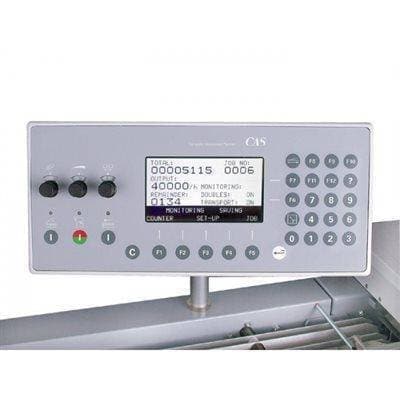

  • Automatic settings
  • 6-digit resettable counter and batch counter

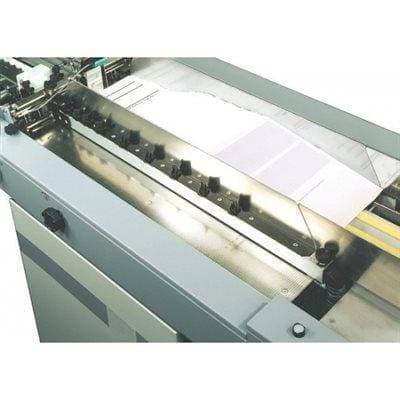

  • 4 insulated fold plates
  • Fold types: half, C, Z, uneven Z and custom

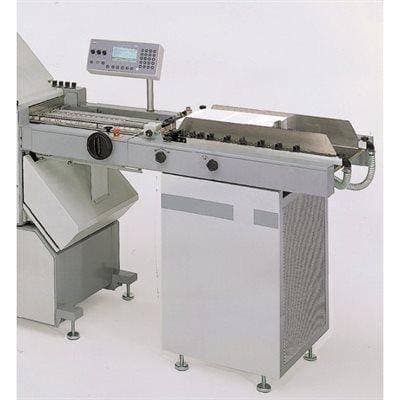

  • Conveyor with photo eye
  • Fault detector
  • Static eliminator
  • Interlocks for fault detection and safety
  • Combination rollers (steel and polyurethane for durability)
The Formax FD 2200 series folder sealers are able to easily and consistently handle production volume jobs. All 4 models create fast, precise folds and a secure finished product. These pressure sealers offer flexibility, ease-of-use and power.

Video of the Formax FD 2200 Series

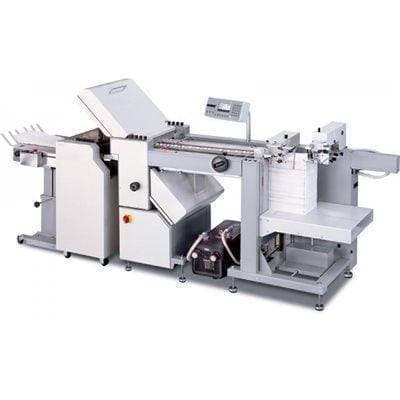

Description of the Formax FD 2200 Series Pressure Sealers

The Formax FD 2200 series pressure sealers are able to easily and consistently handle high-volume jobs. They process up to 40,000 forms an hour and have a production volume duty cycle. There 4 different models (FD 2200, FD 2200-EX, FD 2250 and the FD 2280 working in-line with the FD 676 Maxi Burster) all create fast, precise folds and a secure finished product. Operation is quiet, with the insulated fold plates.

The FD 2200 series pressure sealers offer flexibility, ease-of-use and power. They accept a wide variety of pieces, from invoices to PIN notices. There are 4 fold plates for further flexibility with folding and output sequence. The automated features are high-tech and facilitate quick setup for different jobs. Fold plate adjustments are made with the single touch of a button. The Formax FD 2250 folder sealer can hold up to 3,500 sheets in its hopper, and this series processes the production volume jobs without a problem.

Manufacturer Name Formax
Feed Type Air-fed
Fold Adjustment Setting Automatic fold adjustment
Feed Tray Capacity Up to 500
Speed 40,000 forms/hour
Programmable Presets 18
Counter Yes
Batcher Yes
Fold Types Half Fold, Z Fold, C Fold, Uneven Z Fold
Variable Speed Yes
Accepted Paper Sizes Up to 11 1/2" W x 25" L
Duty Cycle Production Volume
Model # FD 2200
Weight 1,200 lbs.
Height 56'' (max)
Width 167'' (max)
Depth 30'' (max)
Voltage 208 Volts; other voltages available
Warranty

Shipping Weight 1200.0000
Search Terms formaxfd2200, formax2200, formaxfd, fd2200, fd-2200, fd2200pressureselaer, formaxsealer, formaxpressuresealer, pressuresealer, fd2200sealer
