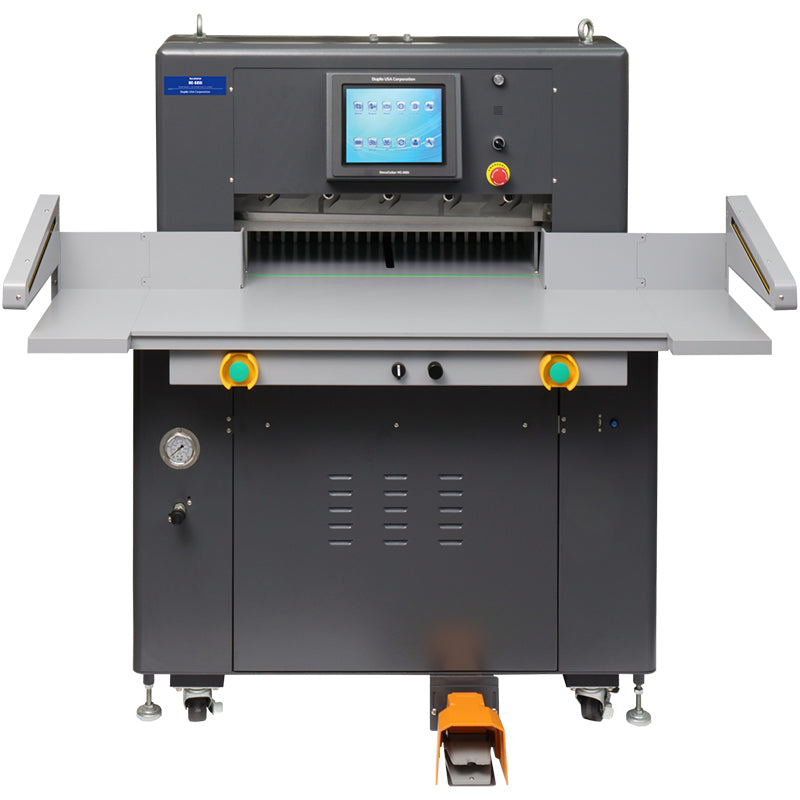

Duplo HC-680i Hydraulic Cutter
- SKU: DUPHC-680I
- Cut Width: 26.8"
This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.
Call us at (800) 243-9226
Description of the Duplo HC-680i Hydraulic Cutter

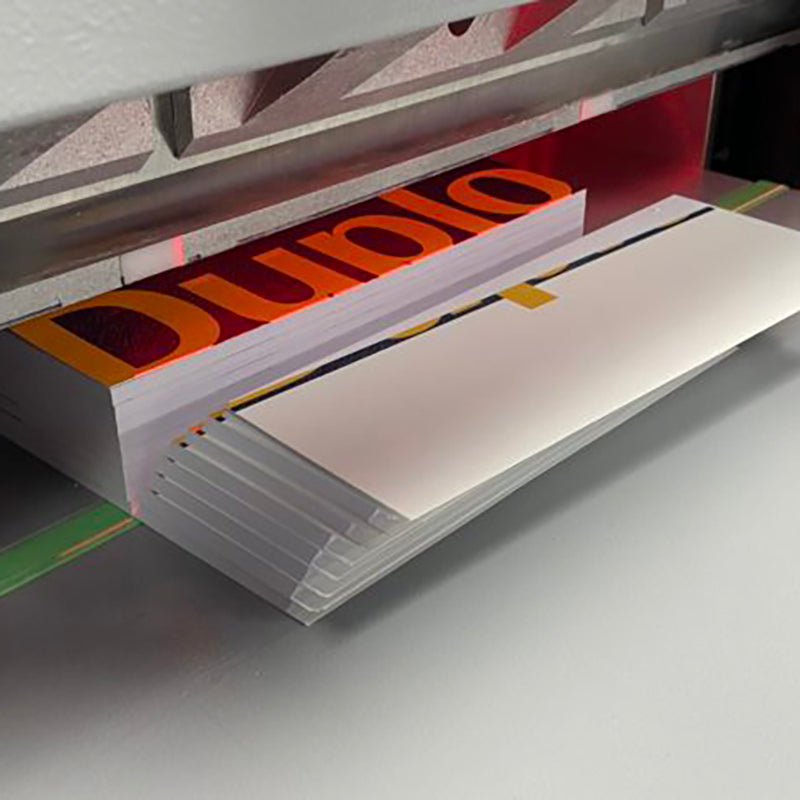

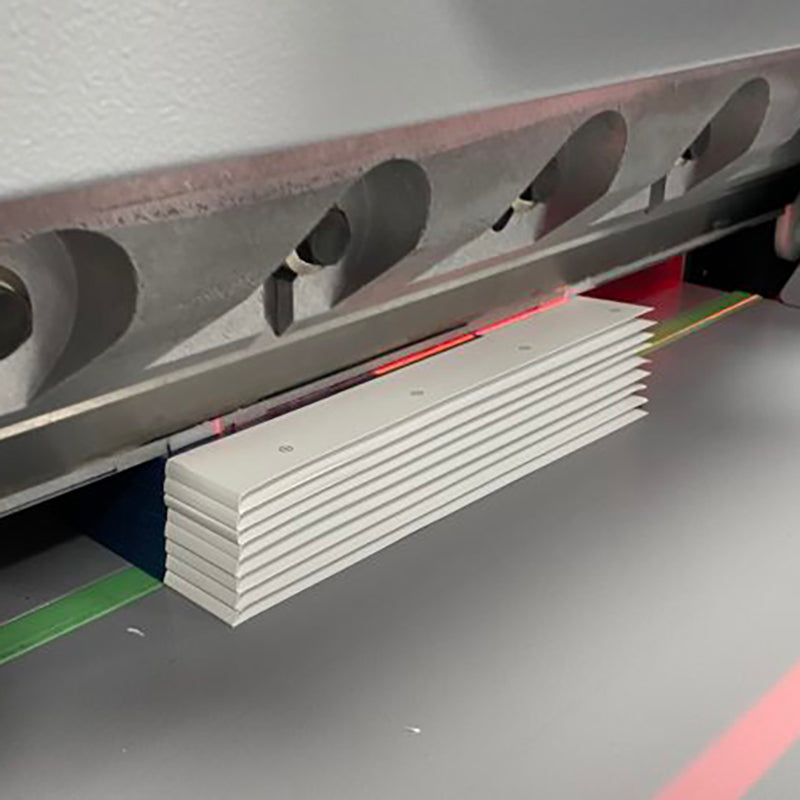

The HC-680i Hydraulic Cutter effortlessly cuts through large stacks of paper up to 26.8" wide. Finish stacks of postcards, direct mail, and perfect bound books up to 4.0" in height. Program the cuts and sequence for each job using the touchscreen panel. As each cut is performed, the back gauge automatically adjusts for the next cut and the control panel prompts the cut rotation to eliminate errors and increase efficiency. The LED light illuminates the cut line, allowing you to see exactly where the cut will be applied, and the foot pedal controls the low pressure clamp to keep the job firmly in place. Simply rotate the job and discard the scraps.
| Manufacturer Name | Duplo |
|---|---|
| Maximum Cutting Width | 26.8" (680 mm) |
| Minimum Cut | 0.60” (15.2 mm) without false clamp / 2.0” (25.4 mm) with false clamp |
| Maximum Cutting Depth | 27.2” (691 mm) |
| Clamp Opening | 4.0” (101.5 mm) without false clamp / 3.8” (96.5 mm) with false clamp |
| Clamping Method | Adjustable hydraulic |
| Maximum Clamping Pressure | 2,500 lb. (1134 kg/cm2) |
| Minimum Clamping Pressure | 556 lb. (252 kg) |
| Backgauge Control | Power with micro adjustment |
| Backgauge Speed | 4.0”/second (100 mm/second) |
| Table Space | 18.9” (480 mm) in front of knife / 36.9” (937 mm) behind knife |
| Overall Height | 59.8” (1,520 mm) |
| Option Knife Steel | Tungsten Carbide |
| Approx. Net Weight | 1,202 lb. (545kg) |
| Power Requirements | Single phase, 200-240VAC, 50/60Hz, Max 16A |
| Safety Certification | ETL, CETL |
| Hydraulic Motor | 2HP(IE3) with inverter, single phase, 50/60Hz, 15.7A |
