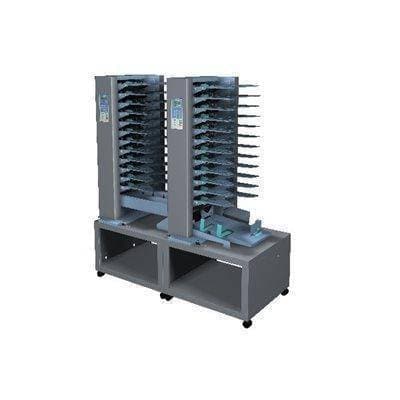

Duplo DFC-120B Collator (Discontinued)

Sale price
Limited availability.
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the Duplo DFC-120B Tower Collator

  • LCD control panel displays current operating status
  • 4-digit ascending/descending counter
  • quickly and easily feed wide range of stocks with tray tension and separator control
  • overlap function allows operator to vary sheet overlapping for more efficient running of the most difficult stocks
  • reset button sets up all detectors
  • programming mode allows operator to load stock while machine runs
  • straight/offset stacking; energy saving mode
The Duplo DFC-120B Allows for a 24 bin collator when used in tandem with the DFC-120.

Description of the Duplo DFC-120B Tower Collator

Expands capacity to 24 bins when used in tandem with the DFC-120 collator

Manufacturer Name Duplo
Speed (sets/hour) 3,900
Maximum Form Size 12.60" x 17.72"
Minimum Form Size 5.83" x 8.27"
Number of Bins 12
Max Bin Capacity (sheets) 1.10"
Error Detector Yes
Feed System friction
Operation automatic
Model # DFC-120B
Manufacturer Part Number DUP DFC 120B
Weight 194 lbs.
Height 45"
Width 25.5"
Depth 24"
Voltage 100-240 V; other voltages available

Shipping Weight 194.0000
Search Terms duplodfc120, duplodfc-120, dfc120, duplodfc120collator, duplodfc-120collator, dfc120collator, duplo120, duplocollator, duplo120collator, duplodfc120b, duplodfc-120b, dfc120b, duplodfc120bcollator, duplodfc-120bcollator, dfc120bcollator, duplo120b, 120-b
