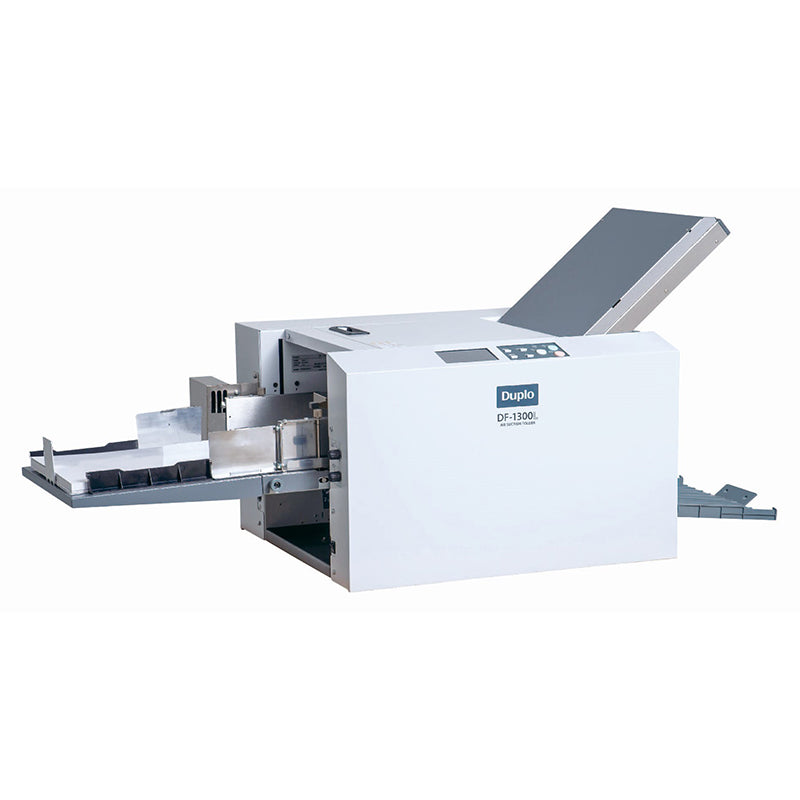

Duplo DF-1300L Air-Suction Paper Folder

  • SKU: DUPDF-1300L
  • Max Paper Weight: 157 g/m²
  • Max Paper Size: 12.2" x 25.5"
  • Adjustment: Automatic
  • Feed Type: Air Feed
Sale price
Sale price
$8,600.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Quickly fold office documents printed off your digital press with the compact DF-1300L by its side. The DF-1300L features high speed folding up to 310 sheets per minute and can process sheets up to 25.5″ in length. The air suction feed system with side air makes it possible to feed coated sheets as well as bond, NCR, and offset. It can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.

Basic Specs for the Duplo DF-1300L Document Folder

  • Paper Size: 4.73" x 7.2" to 12.2" x 25.5"
  • Paper Weight: Coated: 73.3 to 157 gsm, Uncoated: 52.3 to 157 gsm
  • Speed: Up to 310 sheets/minute
  • Feeder Capacity: Up to 625 sheets
  • Feed Capacity: 1.96" (625 sheets/64 gsm)
  • Fold Types: Single, Double, Half Accordion, Letter, Accordion, Gate, and Custom
  • Good For: Brochures, menus, newsletters, invoices, and transpromos

Features of the Duplo DF-1300L Document Folder

  • Pre-programmed with 6 fold styles
  • Automatic paper size detection and fold plate setting
  • Optical and ultrasonic sensors for double feed detection
  • 30-job memory for most common jobs

Description of the Duplo DF-1300L

The DF-1300L Air Suction Feed Model from Duplo brings expanded capabilities to handle digitally printed output and longer sheet sizes. This paper folder is known for its ease of use and reliability to process everyday documents such as letters, invoices, and flyers. The DF-1300L delivers with more diverse applications such as tri-fold brochures, letter landscape guides, and much more.

Long Sheet Folding - Quickly fold office documents printed off your larger format press with the compact DF-1300L by its side. The DF-1300L features high speed folding up to 310 sheets per minute and can process sheets up to 25.5” in length. The air suction feed system makes it possible to feed coated sheets as well as bond, NCR, and offset. The folder utilizes optical and ultrasonic sensors to detect any double feeds as well as side air to aid when feeding longer sheets. It fits perfectly in corporate, school, church, and medical office environments as well as small digital print shops.

Automated Setup - Get easily started with the touch of a few buttons using the color touchscreen panel. The DF-1300L comes pre-programmed with six of the most popular fold styles to save you time. Standard paper sizes such as letter, legal, ledger, half letter, and half legal are automatically detected when loaded on the feed tray. The delivery stack roller adjusts according to paper size and fold type without intervention.

Custom fold styles with non-standard paper sizes, including larger formats, are created by digitally moving the fold plates on the control panel and can be saved in one of the 30 job memories for future use. The DF-1300L can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.

Fold Types

Fold types include single, accordian, gate, half accordian, double, letter, and cross-fold.

Please select your preferred download file from below.

Paper Size 4.73” x 7.2” – 12.2” x 25.5” (120 mm x 183 mm – 310 mm x 648 mm)
Paper Weight Uncoated paper: 52.3 to 157 gsm/14 – 40 lb
Coated paper: 73.3 to 157 gsm/19 – 40 lb
(Up to 230 gsm with limitations. Testing is required)
Speed Up to 310 sheets per minute (Letter size, 81.4 gsm, bond paper, single fold)
Feed Capacity 1.96” (625 sheets/64 gsm)
Paper Quality Bond, NCR, offset, cover stock, and coated paper
Fold Types Single, double, half accordion, letter, accordion, gate, custom
Counter Ascending, descending, and batch mode
Features Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, side air
Feed Mechanism Air suction belt
Sound Level 77 dB
Custom Fold Memory 30
Power Requirements 100V - 240V 50/60Hz 1.9-0.8A 190W
Dimensions (WxDxH) 53.3” x 23.2” x 24.2” (1354 mm x 589 mm x 615 mm)
Net Weight 157 lb/71 kg
