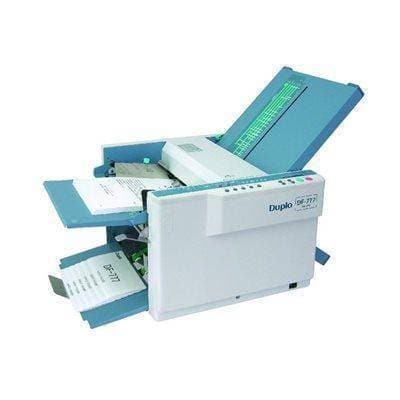

Duplo DF-777 Paper Folder (Discontinued)
- SKU: DUPDF777
- Max Paper Weight: 145 g/m²
- Max Paper Size: 11.7" x 17"
- Adjustment: Automatic
- Feed Type: Friction
- Sale price
- Limited availability.
- Sale price
- $3,300.00
- Unit price
- per
Basic Specs of the DF-777 Folder
- Speed of 135 sheets per minute
- Fold types: single, double, half accordion, letter, accordian, gate, French, and cross letter
- Paper Size: 5" x 7.2" to 11.7" x 17"
- Paper Weight: 52.3 - 145 gsm (14 - 38 lbs)
- Paper Type: Bond, NCR, coated stock
- Auto-feed Friction
- Feed Capacity: 500 sheets
- Dimensions (W x D x H): 37" x 19" x 22"
- Weight: 79 lbs.
Features of the DF-777 Automatic Folder
- Automatic Setting of fold plate and ejection roller
- Six pre-programmed popular folds
- Electronic fold plate adjustment for custom folds
- Test button fold two sheets for inspection
Fold Types
 |
Click Here for the Paper Weight Conversion Chart |
Video for the DF-777
Description of the Duplo DF-777 Automatic Folder
The DF-777 Automatic Folder is compact yet productive, with a capacity of up to 500 sheets and the ability to fold them at a rate of 135 sheets per minute. This folder comes programmed with six popular folds and is also fully customizable for when you need to create non-standard folds. Brochures, menus, letters, invoices, and more can be easily created with the use of the DF-777 automatic folder. A range of paper stock from 14 to 38 pounds can be easily fed through this machine and will come out quickly with perfect folds. This machine comes equipped with an ascending/descending counter and can detect when there is a misfeed or paper jam. The DF-777 from Duplo is perfect for low-volume folding needs of any office, church or school!
| Manufacturer Name | Duplo |
|---|---|
| Model # | DF-777 |
| Feed Type | Friction-fed |
| Fold Adjustment Setting | Automatic fold adjustment |
| Feed Tray Capacity | Up to 500 |
| Fold Speed | 135 sheets/minute |
| Fold Types | single, double, half accordion, accordion, letter, gate, French, cross letter |
| Pre-programmed Standard Folds | 6 |
| Counter | Yes |
| Accepted Paper Sizes | 5'' x 7.2'' to 11.7'' x 17'' |
| Accepted Paper Weights | 13 to 38 lbs. |
| Weight | 79 lbs. |
| Height | 22' |
| Width | 37'' |
| Depth | 19'' |
| Voltage | 120 Volts; other voltages available |
| Warranty | |
| Shipping Weight | 79.0000 |
| Search Terms | duplodf777, duplodf-777, duplodf777folder, duplodf-777folder, paperfolder, duplopaperfolder, duplofolder, 777paperfolder, duplo777, df777 |
