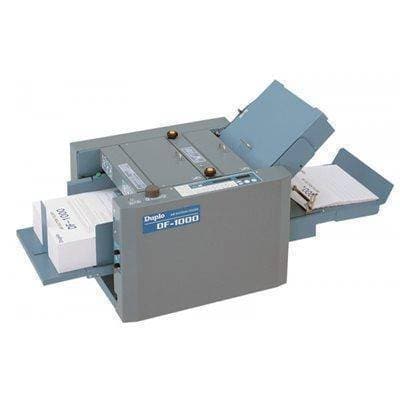

Duplo DF-1000 Paper Folder (Discontinued)
Features of the DF-1000 Duplo Folder
- Automatically folds popular and custom folds
- Speed of 14,880 sheets/hour
- Single, double, half accordion, letter, accordion, and custom folds
- Letter, ledger, legal, 1/2-letter, and 1/2-legal paper sizes
- Air-suction feed system
- Can handle bond, NCR, and coated stock paper types
- 1,000 sheet tray capacity
- Can easily detect paper jams
- Batch (interval); fold stop fixer; thick paper processing; power off alarm mode; forced ejection; 4-digit ascending/descending counter
The Duplo DF-1000 automatic air-fed folder is designed to be the optimal solution for colored, digitally printed stock. The Duplo DF-1000 heavy-duty folder offers efficiency and quiet operation, perfect for production companies.
- Regular price
- Sold out
- Sale price
- $0.00
- Unit price
- per
Secured & Safe Checkout :
Description of the Duplo DF-1000 Automatic Air Suction Paper Folder
The Duplo DF-1000 has been replaced by the DF-1200
The Duplo DF-1000 Automatic air suction folder is designed to be the optimal solution for colored, digitally printed stock. Bond, NCR and coated paper are all folded with no problem. Its unique design is more than just for show; it does not need a separate pump and is, therefore, very quiet in operation. This print shop paper folder has a high sheet capacity of 1,000. The Duplo DF-1000 folds quickly at a rate of 14,880 sheets per hour and produces good, accurate results.

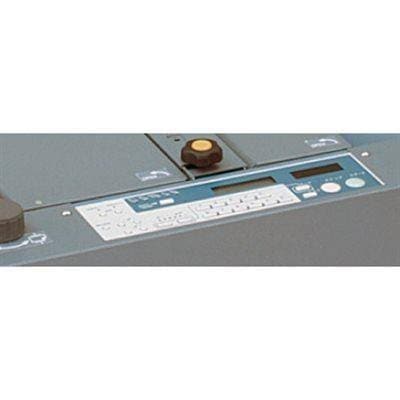

5 fold patterns are pre-programmed in, which include letter, half, double parallel, z-fold (accordion) and half accordion. This heavy-duty folder offers many custom folds to select from as well. Users will unlikely face the common static build-up problem with this high performance folder. Paper jam detection, user-friendly LCD panel and re-fold function facilitate easy operator usage and make folding simple. The Duplo DF-1000 air-fed paper folder is the ideal folding equipment for print shops and other production environments.
Strengths
- Air feed system in compact, tabletop folder with unique design that eliminates need for separate pump; operation is quiet.
- Incredible feed tray capacity (1,000 sheets).
- Static build-up is unlikely, and infrequent paper jams easy to fix.
| Manufacturer Name | Duplo |
|---|---|
| Model # | DF-1000 |
| Feed Type | Air-fed |
| Fold Adjustment Setting | Automatic fold adjustment |
| Feed Tray Capacity | Up to 1,000 |
| Fold Speed | 14,880 sheets/hour |
| Fold Types | Half Fold, Letter Fold (Tri), Z Fold, Gate Fold, Double Parallel Fold, Engineering Fold (Short Z) |
| Pre-programmed Standard Folds | 6 |
| Programmable Presets | 18 |
| Counter | Yes |
| Batcher | Yes |
| Accepted Paper Sizes | 4.7'' x 7.2'' to 11.7'' x 17'' |
| Accepted Paper Weights | 52.3 to 200 gsm |
| Weight | 157 lbs. |
| Height | 24'' |
| Width | 51'' |
| Depth | 21'' |
| Voltage | 100-240 Volts; other voltages available |
| Warranty | |
| Shipping Weight | 157.0000 |
