Duplo DBM-120 SxS Sheet by Sheet Bookletmaker - Discontinued Bookletmakers Duplo
Duplo DBM-120 SxS Sheet by Sheet Bookletmaker - Discontinued Bookletmakers Duplo

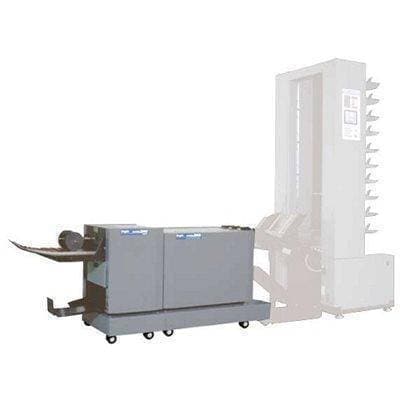

Duplo DBM-120 SxS Sheet by Sheet Bookletmaker (Discontinued)

  • SKU: DUPDBM120SS
Limited availability.
$0.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the DBM-120 S/S

  • Speed: Up to 1,800 sets/hour
  • Staple/Stitch Positions: Corner, side, top, saddle (or no stitch for "fold only" applications)
  • Corner/Side/Top Stitching sheet size: 8.27" x 5.75" to 12.60" x 9.09"
  • Saddle Stitch and Fold sheet size: 8.27" x 10.98" to 12.60" x 17.72"
  • Paper Capacity: up to 20 sheets of 20 lb bond
  • Programs: 10 pre-set and 3 custom
  • Staple heads: 2
  • Staple Positions: 4
  • Electrical: 120 Volts, 60 Hz
  • Dimensions (L x W x H): 28'' x 22" x 23"
  • Weight: 185 lbs.
  • Note: Available only while supplies last
The DBM-120 S/S is suitable for low volume bookletmaking and can be used in tandem with the DBM-120T trimmer.

Description of the Duplo DBM-120 S/S Sheet by Sheet Bookletmaker

The DBM-120 S/S is suitable for low volume bookletmaking and can be used in tandem with the DBM-120T trimmer.The automatic setting DBM-120SxS Bookletmaker and DBM-120T Trimmer offer speed, reliability, and productivity to help increase pro¯ ¬ ts. With production speeds of up to 1,800 booklets per hour, the DBM-120SxS is the ideal ¯ ¬ nishing solution for short and medium runs. The DBM 120 S/S can detect paper jams (location indication), remaining staple count, and top cover open/closed.

Manufacturer Name Duplo
Max Sheet/Binding Capacity (20 # paper) 20 sheets
Max Speed 1,800 book/hour
Number of Staple Heads 2
Number of Staple Head Positions 4
Staple Magazine Capacity 5,000
Corner Stapling Yes
Side Stapling Yes
Max Paper Size 12.6'' x 17.72''
Model # DBM-120 S/S
Weight 185 lbs.
Height 23"
Width 22"
Depth 28"
Voltage 120 V
Warranty
>> Click Here to View Warranty
Shipping Weight 185.0000
