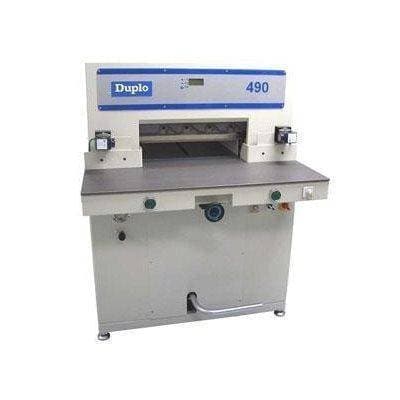

Duplo 490 Hydraulic Paper Cutter (Discontinued)

  • SKU: DUP490
  • Cut Height: 3.14"
  • Cut Width: 19.29"
  • Type: Semi-Automatic
Sale price
Limited availability.
Sale price
$12,800.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the 490 Duplo Cutter

  • Cutting width: 19.29 inches
  • Cutting height: 3.14 inches
  • Hydraulic clamp, activated by foot pedal
  • Low-maintenance aluminum alloy cutting table
  • Power back gauge with manual adjustment if desired
  • Blade stroke adjustment dial
  • Optical cutting line
  • Safety beams
  • Power-saving, automatic timer
The Duplo 490 hydraulic paper cutter offers quality paper cutting technology and accurate cutting results. This hydraulic cutter has cutting width of approximately 19 inches and is capable of cutting decently-sized sheets of paper.

Description of the Duplo 490 Hydraulic Cutter

The Duplo 490 Hydraulic Paper Cutter is built to last with its sturdy, heavy-duty construction, cast-iron side frames, and unique aluminum alloy table that requires no polishing or waxing and will not rust over time. It has a cutting width of approximately 19 inches and is capable of cutting decently-sized sheets of paper. Operator safety is maximized with the safety sensors located on the front of the cutting table, which emit and receive light. They instantly disable the blade should an object get too near it.

The Duplo 490 cutter features a hydraulic soft clamp that is activated by the foot pedal, a blade stroke adjustment dial, and a power back gauge that can be manually modified. You can easily achieve pinpoint accuracy for every single cut. More than 3 inches of paper can be cleanly sliced through without the clamp leaving marks. The Duplo 490 stack paper cutter immaculately endures even the most active workflow demands.

Strengths

  • Aluminum alloy table requires minimal maintenance; you do not need to polish or wax it.
  • Incredibly powerful; handles vigorous workflow needs, endlessly producing top-notch results.

Manufacturer Name Duplo
Max Cutting Width 19.29''
Cutting Height 3.14''
Cutting Mode Hydraulic
Clamp Type Hydraulic
Optical Cutting Line Yes
Blade Construction Steel
Back Gauge Adjustment Manual
Safety Mechanism Safety sensors
Model # 490
Weight 880 lbs.
Height 53.55''
Width 45.28''
Depth 40.16''
Voltage 220 Volts; other voltages available
Warranty

Shipping Weight 880.0000
