Duplo 486P 19" Electric Cutter Cutters Duplo

Duplo 486P 19

Duplo 486P 19" Electric Cutter (Discontinued)

  • SKU: DUP486P
  • Cut Height: 3.14"
  • Cut Width: 19.29"
  • Type: Semi-Automatic

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226


  • Cutting Height: 3.14"
  • Cutting Width: 19.29"
  • Cut Type: Semi-Automatic

Features of the 486P Duplo Cutter

  • Cutting width: 19.1 inches
  • Cutting height: 3.14 inches
  • Cutting accuracy: +/- 0.3mm
  • Automatic clamp and programmable back gauge
  • Full light beam curtain
  • Light beam sensors for added safety
  • Store up to 99 programs

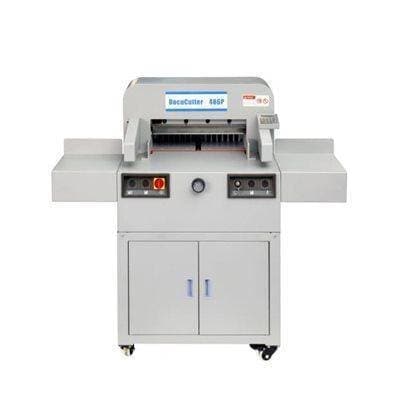

The 486P 19" Electric Cutter by Duplo has it all, power, performance and precision. This electric cutter can handle stacks of paper up to 19" wide and 3.14" high. The 486P uses a beam of light to indicate exactly where the cutline is thus reducing errors and costly reprints. The electronic back gauge is controlled by a variable speed hand wheel for a more accurate cut. The automatic clamp and back gauge can be programmed in inches or millimeters using the LCD control panel which can also store up to 99 programs.

The cutting knife has built in light sensors that immediately disable it if an object gets too close. There is also a safety key lock to prevent unauthorized use. The Duplo 486P is made to handle various paper stocks and weights, its perfect for direct mailings, business cards, postcards, and more.

Manufacturer Name Duplo
Max Cutting Width 19.1''
Cutting Height 3.14''
Cutting Mode Electric
Clamp Type Automatic
Optical Cutting Line Yes
Blade Construction Steel
Back Gauge Adjustment Manual
Safety Mechanism Safety sensors
Model # 486P
Weight 618 lbs.
Height 49.6"
Width 30.7"
Depth 37.8"
Voltage 220 Volts; other voltages available

Shipping Weight 700.0000
