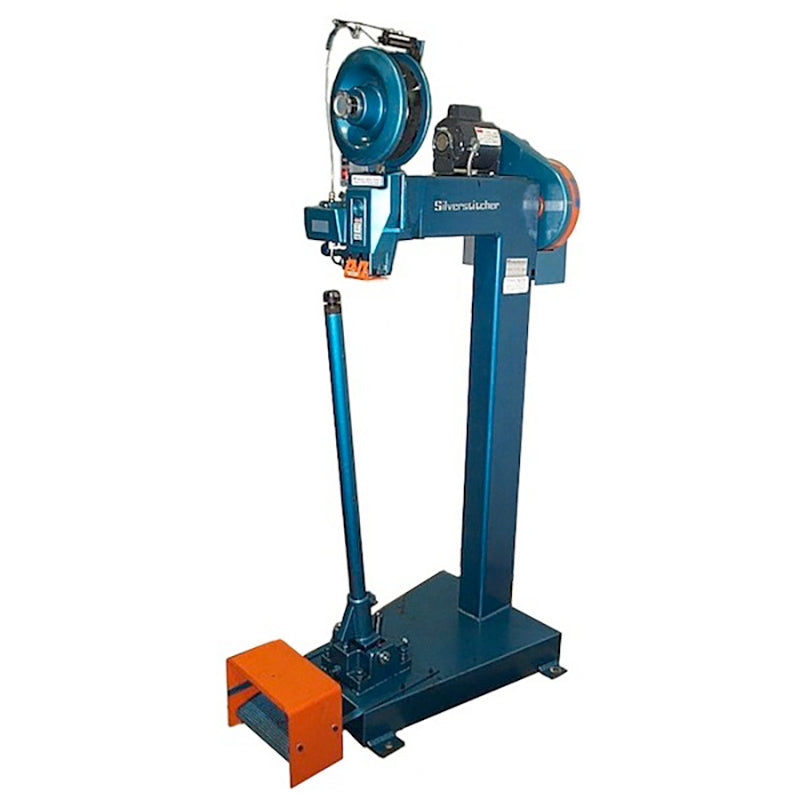

DeLuxe HF 16" Post 1-1/4" Crown Box Stitcher
Deluxe HF 16" Post 1-1/4" Crown Box Stitcher Stitchers Deluxe Stitcher

DeLuxe HF 16
Deluxe HF 16

DeLuxe HF 16" Post 1-1/4" Crown Box Stitcher

  • SKU: BOSHF16P-AST-1-1/4CR
  • GTIN/UPC: 096224657212
Sale price
Sale price
$8,160.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.

Use a Post-type stitcher for setting up regular slotted boxes, overlap slotted boxes, full overlap boxes or half-slotted boxes with partial covers. Post-type stitchers close bottoms of slotted boxes quickly, securely . . to meet all carrier regulations.

Basic Specs of the Deluxe HF 16" Post 1-1/4" Crown Box Stitcher

  • Crown Size: 1-1/4”
  • Wire Size: .103 (2.5mm) x .020 (.5mm) standard wire size
  • Wire Coil Capacity: 25 lbs. (11.5kg)
  • Distance from Front of Frame to Clincher: 16"
  • Distance from Top of Base to Clincher: 41 1/2"

Features of the Deluxe HF 16" Post 1-1/4" Crown Box Stitcher

  • 16" Post model box stitcher.
  • Used for setting up regular slotted boxes.
  • 1-1/4" crown size.
  • Can handle max. box size of 32" x 41 1/4."
  • Set up as many as 350 RSC boxes per hour.

Manufacturer Name DeLuxe
Crown Size 1-1/4"
Wire Size .103 (2.5mm) x .020 (.5mm) standard wire size
Wire Coil Capacity 25 lbs. (11.5kg)
Model # HF16P
Weight 515 lbs.
Throat 16"
Distance from Front of Frame to Clincher 16"
Distance from Top of Base to Clincher 41 1/2"
Maximum Size Box Handled (Including Top Flaps) Width 32"
Maximum Size Box Handled (Including Top Flaps) Depth 41 1/4"
Warranty Click here to view warranty
Shipping Weight 515.0 lbs.
