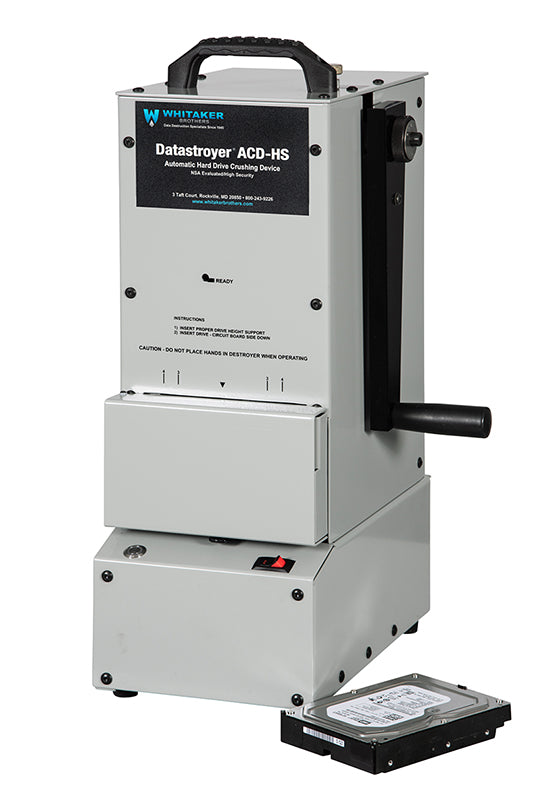

Datastroyer ACD-HS Automatic Hard Drive Crusher
Datastroyer ACD-HS Automatic Hard Drive Crusher

Datastroyer ACD-HS Automatic Hard Drive Crusher

Datastroyer ACD-HS Automatic Hard Drive Crusher

  • NSN: 7490-01-697-2227
  • GTIN/UPC: 096224650107
Sale price
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

FREE GROUND SHIPPING within the contiguous U.S.

On GSA Contract (GS-35F-309DA). Please call us at (800) 243-9226 for more info.

Basic Specs of the Datastroyer ACD-HS Automatic Crushing Device

  • Hard Drive Sizes: 1.0" & 0.65" drives - standard 1.65", laptop drives (with included accessory)
  • Typical Commercial Drives: Approx. 4 lbs. exertions
  • Hardened (Heavy Shielded): Approx. 12 lbs. exertion
  • Operating Time: Approx. 10 seconds or less per drive, dependent on operator
  • Power: 100 to 250 VAC
  • Voltage: 50 or 60 Hz (specify voltage when ordering)
  • Weight: Approx. 63 lbs. (shipping weight approx. 84 lbs)

Features of the Datastroyer ACD-HS Automatic Crushing Device

  • Rugged Design.
  • Tested and used by the NSA and DOD for destroying hard drives.
  • Green and Environmentally-friendly.
  • Adapters available to accommodate additional drives.
  • Automatic operation for hands free hard drive destruction.
  • If power goes out, manual crank can continue destruction.
  • Rear output slide option available.
  • Auto-loader option available.
  • Universal mounting kit available.
  • Heavy duty custom case available.
  • Rack mountable slide-out shelf available.
  • One year parts warranty.
Features include: Automatic start / stop operation via an integrated light barrier, a built-in safety element which stops unintentional entry, overload protection, separate collection bags so materials can be sorted, and a sturdy wooden cabinet with casters for mobility.

Manufacturer Name Datastroyer
Weight 63 lbs. (28.5 kg)
Dimensions 11.625" (29.5 cm) D x 7.25" (18.4 cm) W x 21" (53.3 cm) x 11" or 28 cm wide handle
Media Destroyed Handles all 3.5-inch Form Factor Drives including .65-inch, 1-inch and 1.65-inch high drives. Handles 2.5-inch Laptop hard drives with Laptop Holder. Handles SSD (Not NSA evaluated for SSD) drives in 3.5 Form Factor and 2.5 Form Factor with the Laptop Holder.
Power Supply 115 VAC, 60 Hz; 220 VAC, 60 Hz; 230 VAC, 50 Hz (specify voltage and frequency when ordering)
Destruction Method Bends/ breaks platters, damages heads, motor and circuit board
Cycle Time 60 HZ units: 10 seconds or less / 50 HZ units: 12 seconds or less (dependent on operator) / Hand Crank: 8 seconds or less (dependent on operator)
Maintenance Occasional vacuuming of debris drawer and internal housing
Options Rear Output Option; Rackmountable Slide-out Shelf Option (for 19" EIA racks, 19" to 28" deep)(Includes Slides); Remote Control Communication; Universal Screw Down Mounting Kit; Deployment Case with wheels
Manual Operator Exertion Typical Commercial Drives (3.5") – Typ. 4 lbs. exertion / Hardened (Heavy Shielded) (3.5") – Typ. 12 lbs. exertion
Warranty Click here to view warranty
