Features of the Cumberland 810X Beside-The-Press (800X Series) Granulator
Pivoting hopper, drop down removable screen cradle and machine, bolted cutting chamber simplifies cleaning and maintenance
Low profile, sound-attenuated in-feed system for robot, hand or conveyor feed applications
HCHC knives manufactured in-house utilizing Cumberland’s proprietary process for heat treating ensures durability and long life
Over-sized solid flywheel
Cutting Circle: 8.2" dia. (210mm)
The 800X Series granulators are ideal for reject components from the injection, blow molding, and extrusion processes.

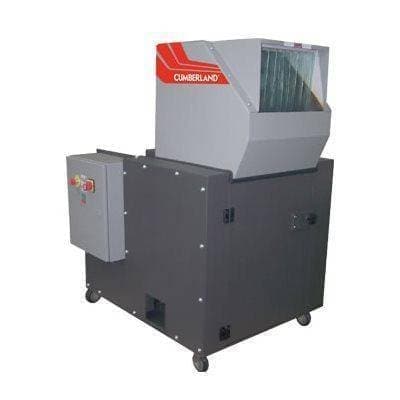

Cumberland 810X Beside-The-Press (800X Series)
Those who find themselves dealing with many rejected components from the extrusion, injection, or blow molding processes will appreciate the mobility and features of the Cumberland 800X Series of granulators. The Cumberland 810X Beside-The-Press is the smallest in the series with an 8" x 10" cutting chamber. The pivoting hopper can accept hand, robotic, and conveyor feeds safely. Because it is a low speed series, it also uses an oversized flywheel to help with friction from multiple types of feedstock. The Cumberland 810X Beside-The-Press can deliver a throughput of around 123 pounds per hour thanks to its three knife, open scooped rotors with rotating end discs. The HCHC knives use Cumberland's special heat treating processes, which provide long term use and reliable results. Each of the 800X series granulators are equipped with TEFC 10HP motors. They are controlled with NEMA Type 12 controls and feature simple start and stop push buttons as well as safety interlocks.
As indicated, they are compact and portable units that offer a low profile to ensure optimal beside the press functions. They are easy to maintain and have bolted cutting chambers and drop down screen cradles for easy cleaning or maintenance. The design of the units ensure that they are sound attenuated or as quiet as possible. This too is an appealing feature on a mobile unit that may be in many settings in a single location. Waste from the Cumberland 810X Beside-The-Press is evacuated into a manual bin, though there are some options for upgrades to the discharge system. The Cumberland 810X Beside-The-Press can be enhanced with a 7.5 to 10 HP TEFC motor. The discharge system can be fit with a vacuum take off in sizes of 1.25, 1.5, 2, and 2.5 inches accordingly. The knives can be upgraded to D2 components as well as being enhanced with wear resistant options for any application in which abrasion or wear is an issue. The Cumberland 810X Beside-The-Press can also feature a manual feed chute. If you need a flexible granulator that accepts a range of feedstocks for many different settings, this machine is a ideal choice. Loaded with safety features, the Cumberland 810X granulator is an appealing unit due to its sound attenuation and easy mobility. It will provide long wear thanks to the proprietary equipment on board, and it is a remarkably simple granulator to keep clean and totally maintained.
These sound-attenuating granulators are available in three models—810x, 814x, and 818x. All provide excellent quality regrind with the added advantage of reduced maintenance costs.
Motor: 7.5 to 10 HP (5.5 to 7.5 kW) TEFC motors
Discharge: 1.25", 1.5", 2", or 2.5" vacuum take-off
Knives: D2 components and wear-resistant package for abrasive applications
Modular feed chutes

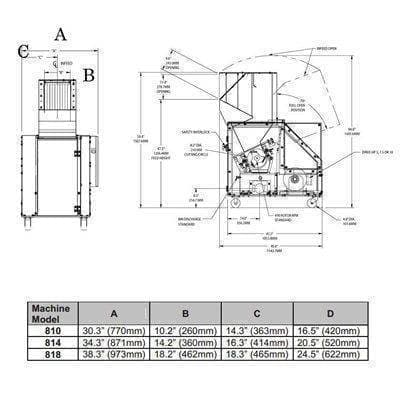

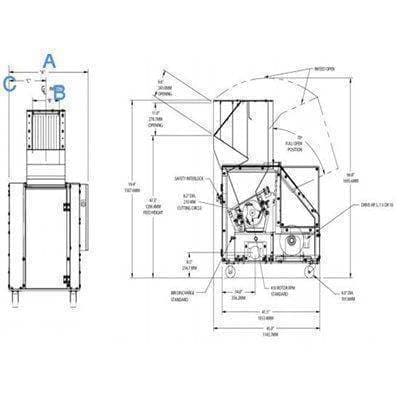

Line Drawings & Dimentions for800X Series Beside-the-Press Granulators
123 lbs/hr (58kg)
Feed Opening/Throat Size
47.5" (1206mm) H
8” x 10” (203mm x 254mm)
3-knife open-scooped with rotating end discs
¼” standard, 3/16”, 5/16”, 3/8” and other sizes available
