Features of the Cumberland 6x8 Auger-Fed Granulator
IEC motor controls installed in ergonomic NEMA 12 enclosure
Sequenced starting with individual start/stop pbs with status lights
Auger reversing drum switch
Hinged chamber access lid with clear viewpoint
Gear reducer and chain/sprocket auger drive
Multiple V-belt rotor drive
Electro-mechanical interlocks for chamber access
Full range of guarded infeed chutes to suit applications
Auger speed is 70RPM torque applications
Completely portable and automatic, the Cumberland 6x8 Auger-Fed Granulator meets almost any need. Though the smallest in the line, this granulator can handle heavy-duty and continuous applications.
Description of the Cumberland 6x8 Auger-Fed Granulator
From one of the most trusted names in size reduction equipment comes the innovative line of Cumberland Auger Fed Granulators. Completely portable and automatic, the auger-fed granulators can meet many needs. The Cumberland 6x8 Auger-Fed Granulator is the smallest in the line, yet can handle heavy-duty and continuous applications. Whether your manufacturing process includes sprue, thermoformed web, small parts, or blow-molded scrap, the unique design of this machine will provide uniform granulate and optimal efficiency. It begins with oversized auger and infeed openings that allow the hopper to accept materials at an uninterrupted pace, and without typical concerns around jamming. This is due to the "reversing flight" of the one-piece auger that allows the unit to operate without any possibilities for wrap around that is a common concern for those using auger systems. It uses a heavy duty auger chain drive to ensure consistency in power and performance too.
Materials enter the cutting chamber that features a slant cut shearing design, hinged lid (for easy cleaning and repair), and a screen drawer for immediate access and maintenance. The three slanted rotor knives and the two counter slanted bed knives create a reliable shearing action which ensures that the machine will not jam and that the size reduction is consistent and uniform. Of course, the Corten reversible screen with a fixed 8mm opening is also part of the process, and helps to keep maintenance and replacement parts in check. The 6x8 Auger-Fed Granulator operates on a 2.2 to 3.7 kW motor that allows it to handle up to 80kg of throughput in an hour. The output is captured in a standard discharge bin, but there are many options available for this handy machine. These options include an upgrade to an oversized collection bin or a pneumatic evacuation system; a longer or shorter infeed auger with an adjustable fifth wheel; a rotor upgrade to carbide coating and hard face welding; a carbide coated screen with options for 3mm, 5mm, or 6mm openings; base leg extensions for inline function; and oversized auger or infeed openings. The 6x8 Auger-Fed Granulator from Cumberland is sized for optimal portability. It is equipped with a lockout chain and emergency stop button, it moves easily on its system of two fixed and two swivel casters, and it is meant to provide a small footprint along with heavy duty function and high performance. It will easily become a "go to" size reduction system for many different settings and applications.
Options
Leg extensions
Oversized collection bin
Bin level monitor
RPM counter
Scissor cut knife arrangement
Wear/abrasion resistance
Reduced auger speed
Increased or decreased auger length
Standard or custom engineered auger infeed chutes

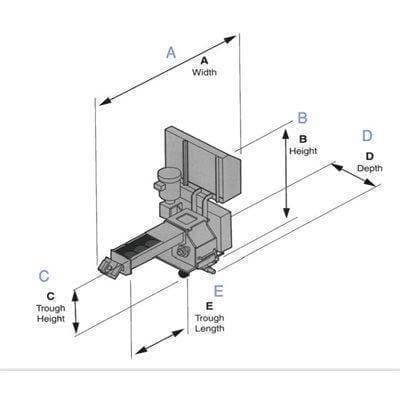

Line Drawings & Dimensions for Cumberland Auger-Fed Granulators
A
B
C
D
E
55" (1397mm)
49.25" (1250mm)
18" (457mm)
28" (711mm)
20.75" (527mm)
Manufacturer Name
Cumberland
Max Throughput
175 lbs./hr (79 kg/hr)
Feed Opening/Throat Size
6" x 8" (152mm x 203 mm)
Cutting Chamber
6" (152mm); slant cut shearing design with screen drawer and hinged lid
