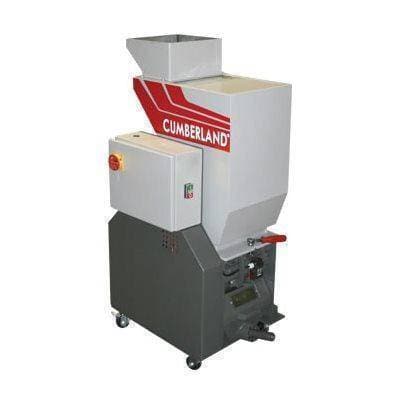

Cumberland 6516 Beside-The-Press Granulator (65 Series)

Cumberland 6516 Beside-The-Press Granulator (65 Series)

Features of the Cumberland 6516 Beside-The Press Granulator (65 Series)

  • Multi-feed hopper suitable for manual, conveyor or robot loading. Top section is reversible for easier feeding of long runners.
  • Innovative flap assembly specifically designed to be removed quickly and easily
  • Bolted and doweled cutting chamber assembly with outboard, sealed-for-life bearings
  • 3-knife, open rotor with scooped wings and slant-cut knives
  • Counter-slanted stationary knives provide true “scissor" cutting action
  • All knives manufactured from D2 HCHC and heat treated using Cumberland’s proprietary process
  • Rotating ends discs for low heat granulation and reduced friction wear
  • High-inertia flywheel with automatic drive belt tensioning
  • TEFC motor and NEMA Type 12 enclosure
  • Safety interlocks, push buttons, safety labels and monitoring device
  • 3 HP belt drive

Efficient and versatile granulators for a wide variety of applications, the 65 Series is used with robot feed, conveyor feed, or hand fed operations. 65 Series granulators provide superior cutting efficiency with their low speed,

SKU: NDS6516 ISBN: 9358476061881
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the Cumberland 6516 Beside-The Press Granulator (65 Series)

As the largest of the Cumberland 65 Series, the Cumberland 6516 Beside-The Press Granulator has a 6.5" x 16" cutting chamber capable of a throughput of up to 300 pounds per hour. The system also features a "multi feed" hopper that can be used in any number of settings. From a handfed operation to robotic delivery, this hopper will work well in almost any application. The design also allows the unit to be reversed to receive feedstock or even to have the entire flap assembly removed instead. The bolted and doweled cutting chamber ensures maximum efficiency as it is equipped with durable and intelligent gear. The bearings on the cutting chamber are outboard mounted and permanently sealed to prevent grease or dust from cross contaminating. The rotor is equipped with three HC D2 blades and there are an additional two blades on the bed. The blades used are part of Cumberland's technology and deliver accurate and scissor-like cuts. Additionally, the Cumberland 6516 Beside-The Press Granulator can handle such a variety of materials and feedstock because of the high inertia flywheel that triggers the automatic drive belt tensioning. This way, the throughput can be maintained on a continuous basis. The screen is available in a range of sizes and can even be upgraded to a wear resistant version.

The open rotor design also ensures flexible and reliable cutting and the rotating end discs keep things cool to prevent wear and tear on the system. The TEFC motor delivers 3 HP and is operated by NEMA Type 12 controls. Features include start and stop push buttons and safety interlocks that also guarantee user safety. The Cumberland 6516 Beside-The Press Granulator can be easily and safely maintained and will accept many different upgrades for those who need them. Applications such as edge trims from sheet extrusion, small parts and tubes, and injection molded runners are typical for the unit, but users can add options to increase capability. Currently, options include larger motors, staggered knives, a wear resistant rotor, wear resistant screen and chamber components, and a compressed air system for discharging functions. There is also an option for sound enclosure to reduce noise levels for quieter settings.

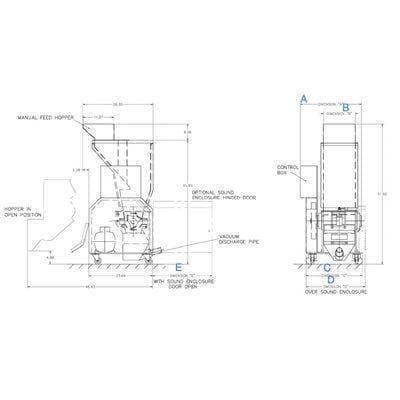

 Line Drawings & Dimensions Cumberland 6.5 Series Granulators

18.67 (474) 7.81 (198) 16.86 (428) 17.88 (454) 17.97 (456)

Manufacturer Name Cumberland
Max Throughput 200 lbs/hr (91 kg/hr)
Feed Opening/Throat Size 6.5” x 16” (165 x 406 mm)
Cutting Chamber 6.5” (165 mm)
Rotor 3 knife open rotor, scooped wings, slant cut knives
Rotor Knives D2 HCHC Heat treated
Screen 3/16”
Base Caster-mounted
Discharge Large capacity vacuum bin
Drive Parts High-inertia flywheel with automatic drive belt tensioning
Manufacturer Part Number NDS6516
Model # 6516
Weight 550 lbs (250 kg)
Shipping Weight 550.0000
