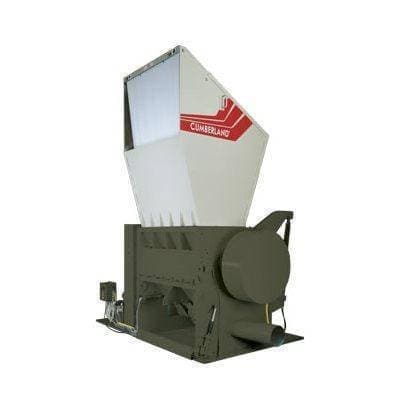

Cumberland 3242 Central Granulator (3200 Series) (Discontinued)

Cumberland 3242 Central Granulator (3200 Series) (Discontinued)

Features of the Cumberland 3242 Central Granulator (3000 Series)

  • Hydraulic actuation system for hopper and cradle
  • Slide-out pivoting discharge chute assembly
  • Replaceable rotor-knife seats
  • Bearings are close-fit, taper-mounted and adjustable
  • Auto-Lube systems feeds a constant amount of lubricant for automated PM service

The Cumberland 3200 Series granulators have been designed with you, the processor in mind. They cover a wide range of applications including heavy extruder purgings, blowmolded flashings, thick sheet, pipe, large blow-molded parts (automotive, appliance,






SKU: NDS3242
Request A Quote

Secured & Safe Checkout :

trust badge

Description of the Cumberland 3242 Central Granulator (3000 Series)

The Cumberland 3242 Central Granulator is considered a "standard" model. Though this granulator features all of the same capabilities as the larger units, it does vary slightly. The infeed uses a conveyor application along with a electrohydraulic lift. This sends materials into the split design cutting chamber that features a three knife open design rotor that is offset, which has a solid flywheel to overcome any friction caused by heavy duty processing. The Cumberland 3242 can handle the needs of many different settings and applications including extruder purgings, thicker sheets, pipe scrap, blow molded scrap and parts, films, and more. The 1200 RPM TEFC motor is paired with taper mounted bearings that reduce contamination and are fully adjustable. The throughput capacity is 6k per hour when the 3/8" screen is in place. Waste is evacuated via the Airveyor that can slide left or right and is twelve feet in length. Maintenance and cleaning is simplified by the hydraulic actuation system on the hopper and the cradle. The slide out pivoting discharge chute along with the split design of the cutting chamber, the drop cradle for the screen, and the replaceable rotor knife seats all add up to fast and easy upkeep or repair.

In addition to all of these features, the Cumberland 3242 Central Granulator can be enhanced or upgraded with a range of options. These include a wear resistant package on the chamber and knives, additional controls beyond the standard NEMA Type 12 (with safety interlocks), programmable service cycles to access the onboard auto lubrication equipment, and the installation of adjustable rotor knives that have a special setting fixture. When you need optimal control of your size reduction gear and when you have a lot of heavy duty applications and materials, you want a system that you can count on to perform without fail. The Cumberland 3242 Central Granulator comes with many impressive features, even without further options and customization, it can be relied upon to deliver uniform granulate and trouble free operation. This is a versatile machine for advanced functions and will easily perform on a continuous basis regardless of the challenges.

Options

  • Wear-resistant package
  • Simplified access for service and maintenance
  • Clean-out is quick and easy, saving valuable time
  • Reduces downtime and simplifies maintenance,saving  you money
  • Precise control for tight-tolerance applications, critical for high-capacity bulk film
  • Programmable service cycle ensures proper lubrication of bearings—no worry
  • Adjustable rotor knives with setting fixture

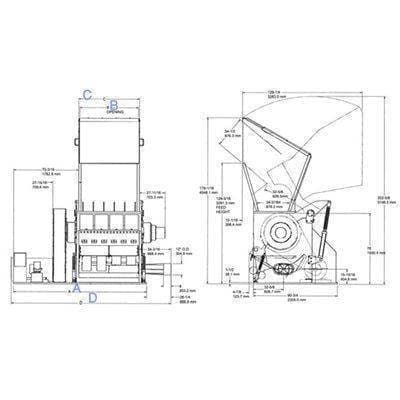

 Line Drawings & Dimentions for Cumberland 3200 Series Granulators

ABCD
122 1/2 (3111.5 mm)42 1/8 (1070.0 mm)44 3/8 (1127.1 mm)161 1/8 (4092.6 mm)

Manufacturer Name Cumberland
Max Throughput 6000 lbs./hr. (2722 kg/hr)
Feed Opening/Throat Size 32” x 42” (813 x 1067 mm)
Cutting Chamber 2-bed knife
Rotor 3-knife offset
Rotor Knives HCHC, 55°, S/A
Screen 3/8” dia. non-heat-treated
Base Low-profile
Discharge 12” Airveyor chute (models 3242 and 3263) 14” Airveyor chute (model 3284)
Drive Parts V-belt
Accessories Blower, separator, common stand, conveyor
Model # 3242
Weight 30,000 lbs. (13636 kg)
Shipping Weight 30.0000
