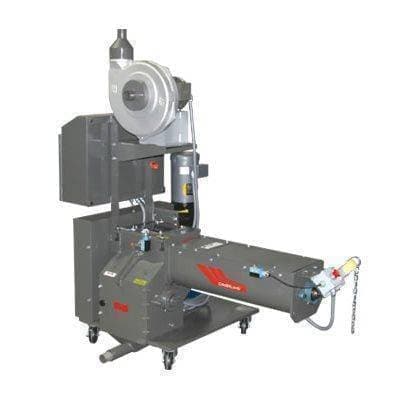

Cumberland 12x16 Auger-Fed Granulator

  • SKU: NDS12X16
  • GTIN/UPC: 9358476095329

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the Cumberland 12x16 Auger-Fed Granulator

  • IEC motor controls installed in ergonomic NEMA 12 enclosure
  • Sequenced starting with individual start/stop pbs with status lights
  • Auger reversing drum switch
  • Hinged chamber access lid with clear viewpoint
  • Gear reducer and chain/sprocket auger drive
  • Multiple V-belt rotor drive
  • Electro-mechanical interlocksfor chamber access
  • Full range of guarded infeed chutes to suit applications
  • Auger speed is 70RPM torque applications
Cumberland Auger-fed granulators feature a low profile design with an exclusive screen drawer and hinged lid, which provide complete chamber access for quick, easy cleanout.

Description of the Cumberland 12x16 Auger-Fed Granulator

Whether you are tasked with inline processing during sprue, running, thermoformed web, and other plastics production or manufacturing, Cumberland granulators are size reduction resources. The Cumberland 12x16 Auger-Fed Granulator is a high quality and mobile unit that relies on innovative design to deliver impressive results. Sitting on a sturdy and mobile base that uses two fixed and two swivel casters, this unit features a hopper to collect infeed and to distribute it into the one-piece reversed flight auger. The expansive throat size partnered with the no-jam chamber creates a very effective solution. By using the unique auger design in the cutting chamber, true slant cut shearing is accomplished. This uses the three slanted rotor knives with the two counter slanted bed knives and produces a uniform output. The revered flight and continuous weld auger also prevents any wrapping or jamming in the runners as the materials make their way into the chamber.

The rotor itself is the Cumberland standard D2, and is driven by a heavy duty auger chain drive coupled with a 7.5 to 11.2 kW motor. The IP-55 controls ensure ease of use, and the lockout chain and emergency stop button also guarantee safety. The machine is easy to maintain and clean thanks to the hinged lid and screen drawer of the cutting chamber, and due to the reversible Corten screen (with 8mm standard openings). This reversibility cuts down on maintenance expenses, as does the durable construction of the rotor and cutting chamber too. The 12x16 Auger-Fed Granulator is capable of generating around 204kg per hour (roughly 450 pounds) and dispenses into a standard discharge bin. These capabilities put the 12x16 distinctly into the heavy duty category, and yet the unit is entirely portable and flexible. The standard options allow it to be converted into a taller unit or customized as required.

Other standard options include a longer or shorter auger with a fifth adjustable wheel at the end; a more durable cutting chamber equipped with hard face welding; a carbide coated screen with 3, 5, and 6mm options; and an oversized collection bin or pneumatic evacuation system. With ease of use, simple maintenance and repair requirements, and guaranteed performance due to its impressive auger design, the Cumberland 12x16 Auger-Fed Granulator is a reliable solution for a diversity of needs. Because it is mobile and designed for safety, it can become a go to solution for continuous operation in all kinds of settings.


  • Leg extensions
  • Oversized collection bin
  • Bin level monitor
  • RPM counter
  • Scissor cut knife arrangement
  • Wear/abrasion resistance
  • Reduced auger speed
  • Increased or decreased auger length
  • Standard or custom engineered auger infeed chutes

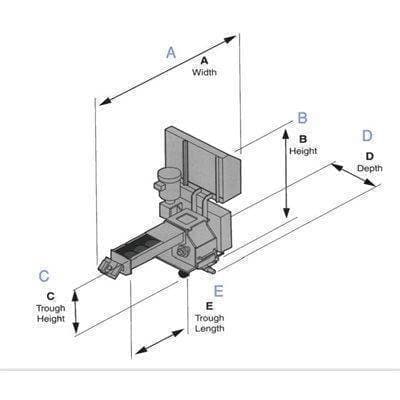

Line Drawings & Dimensions for Cumberland Auger-Fed Granulators


Manufacturer Name Cumberland
Max Throughput 450 lbs./hr (204 kg/hr)
Feed Opening/Throat Size 12" x 16" (305mm x 406mm)
Cutting Chamber 305mm; slant cut shearing design with screen drawer and hinged lid
Rotor D2
Rotor Knives 3
Screen Corten reversible screen, 5/16" (8mm)
Base Two swivel casters, two fixed casters
Discharge Bin
Drive Parts Heavy-duty auger chain drive
Horsepower 10 HP (7.46kW), 15 HP (11.18kW)
Model # 12x16
Weight 2400 lbs. (1090kg)
Voltage 240v or 400v
Shipping Weight 2400.0 lbs.
