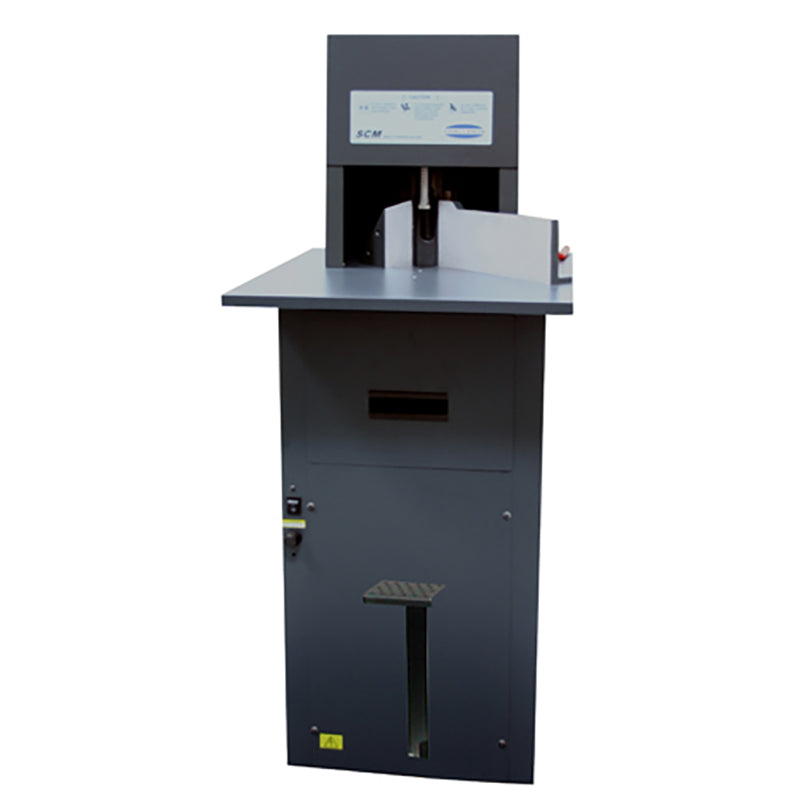

Challenge SCM Manual Cornering Machine
- SKU: CHACORNERINGMANUAL
- Type: Manual
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Description of the Challenge SCM Manual Cornering Machine
Take your cornering operations to the next level with the Challenge SCM Manual Cornering Machine, a precision-engineered solution designed for efficiency, consistency, and ease of use. Ideal for small to medium-scale manufacturing, this robust machine simplifies the cornering process for a wide range of materials, including cardboard, paperboard, and corrugated sheets. The shear cutting mechanism preserves knife sharpness and maintains high quality cuts. Designed and built in Michigan - USA, the Challenge SCM is a valuable machine for any print shop.
| Manufacturer Name | Challenge |
|---|---|
| Available Corner Sizes | 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, and straight* 3 mm, 6 mm, 10 mm, 13 mm, 16 mm, *(1-1/4 inch/ 32 mm max., diagonal cut) |
| Table Depth | 24 inches (61 cm) |
| Table Width | 20-1/4 inches (51.5 cm) |
| Table Height | 36 inches (91 cm) |
| Overall Height | 52 inches (132 cm) |
| Floor Space Requirement | 24 inches x 20-1/4 inches (61 x 51.5 cm) |
| Net Weight | 190 lbs (86 kg) |
| Shipping Weight (Approximate) | 265 lbs. (120 kg) |
| Standard Motor | 1/2 HP., 60 Hz, AC, 115 volts/ 13.5 Amps |
| Service Size | 20 Amps |
| Optional Motor | 230 Volts, 50 Hz, 7 Amps |
