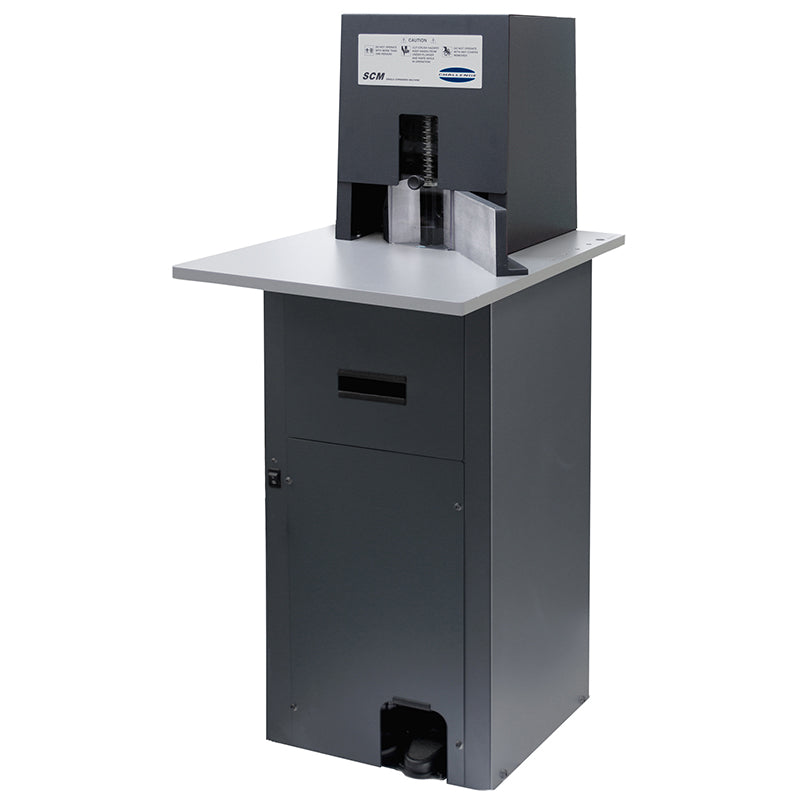

Challenge SCM Hydraulic Cornering Machine
- SKU: CHACORNERINGHYDRAULIC
- Type: Hydraulic
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Description of the Challenge SCM Hydraulic Cornering Machine
Finish your jobs with professional quality corners. The Challenge hydraulic powered Single Cornering Machine delivers up to ten times more cornering capacity than electric powered table-top models in the market. The SCM’s powerful hydraulic system and robust knives easily handle difficult stocks such as index cards and coated materials. The shear cutting mechanism preserves knife sharpness and maintains high quality cuts. Designed and built in Michigan - USA, the Challenge SCM is a valuable machine for any print shop. Also available in a manual model for lower capacity requirements.
| Manufacturer Name | Challenge |
|---|---|
| Available Corner Sizes | 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, and straight* 3 mm, 6 mm, 10 mm, 13 mm, 16 mm, *(1-1/4 inch/ 32 mm max., diagonal cut) |
| Table Depth | 24 inches (61 cm) |
| Table Width | 20-1/4 inches (51.5 cm) |
| Table Height | 36 inches (91 cm) |
| Overall Height | 52 inches (132 cm) |
| Floor Space Requirement | 24 inches x 20-1/4 inches (61 x 51.5 cm) |
| Net Weight | 190 lbs (86 kg) |
| Shipping Weight (Approximate) | 265 lbs. (120 kg) |
| Standard Motor | 1/2 HP., 60 Hz, AC, 115 volts/ 13.5 Amps |
| Service Size | 20 Amps |
| Optional Motor | 230 Volts, 50 Hz, 7 Amps |
