Challenge MS-5 Multi-Spindle Drill
Challenge MS-5 Multi-Spindle Drill

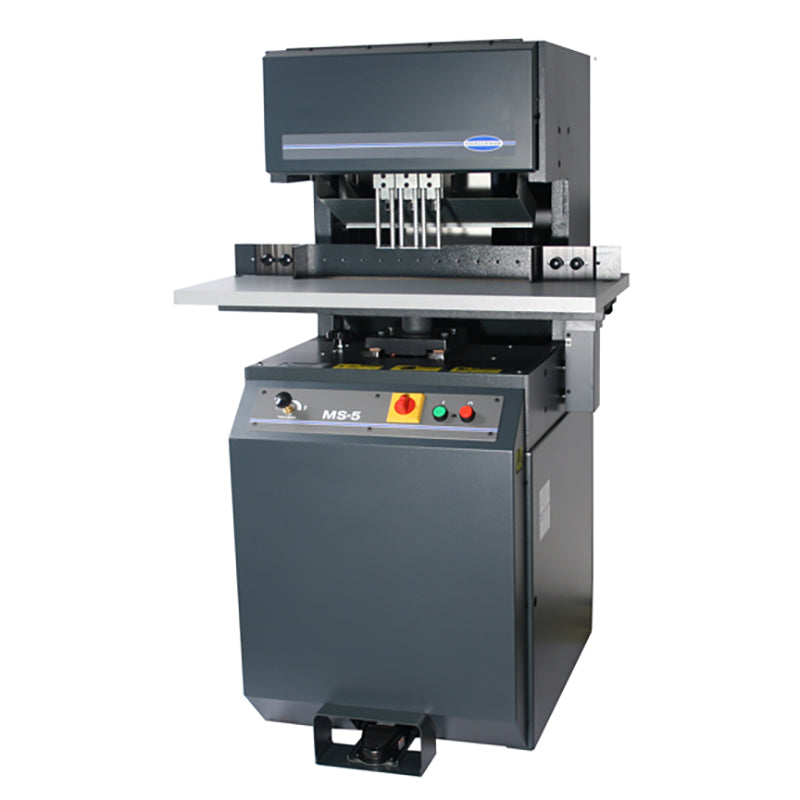

Challenge MS-5 Multi-Spindle Drill with 3 Standard Heads

  • SKU: CHAMS-5
$17,380.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the Challenge MS-5 Multi-Spindle Drill with 3 Standard Heads

  • Number of Drill Heads: 2 to 5
  • Drill Bit Sizes Available: 2 inch Bits - 13 sizes: 1/8 inch to 1/2 inch (3-13 mm)
    2-1/2 inch Bits - 4 sizes: 1/4 inch to 1/2 inch (6.4-13 mm)
  • Center to Center Maximum: 15 inches (38 cm)
  • Minimum Distance Between Heads: Standard - 1-7/8 inch (48 mm)
  • Maximum Drilling Capacity: 2-1/2 inches (63 mm)
  • Strokes Per Minute (Adjustable): Up to 18
  • Backgauge Adjustment: 0 to 5 inches (0-13 cm)
  • Vertical Adjustment of Individual Heads: 1/4 inch (6 mm)

Features of the Challenge MS-5 Multi-Spindle Drill with 3 Standard Heads

  • Side guide adjustment.
  • Backgauge adjustment.
  • Easy drill length adjustment.
  • 2 inch (5.1 cm) hollow drill bits available in 13 sizes.
  • 2-1/2 inch (6.4 cm) hollow drill bits available in 4 sizes.
  • Hollow drill bits also available with teflon coating.
  • Cast iron and steel construction.
  • Three drill heads and drilling blocks standard (Two & four head options for European applications).
  • Two backgauge filler blocks.
  • Manual drill sharpener.
  • Chip disposal bag.
  • Hydraulic power, foot pedal activated.
  • Automatic table return.
  • Up to 5 holes in a single stroke.
  • Set-up changes are quick & simple.
  • Optional Equipment: Additional drill heads.

Want more for your Challenge MS-5? Add the Standard Head to your cart so you can effectively drill your paper.

Description of the Challenge MS-5 Multi-Spindle Drill with 3 Standard Heads

The MS-5 is designed and engineered by Challenge, which introduced the first paper drill in the Graphic Arts industry in the early 1930’s. Today, the MS-5 builds on our expertise with drilling technology. The easily accessible control panel and powerful hydraulic operation are designed to reduce operator fatigue and increase job production. The MS-5 is solidly built, and ready to finish your jobs effectively.

The MS-5 is a great addition to any full-scale graphics supply or print shop. The robust design supports continuous use of up to 5 holes simultaneously.

Manufacturer Name Challenge
Number of Drill Heads 2 to 5
Drill Bit Sizes Available 2 inch Bits - 13 sizes: 1/8 inch to 1/2 inch (3-13 mm) / 2-1/2 inch Bits - 4 sizes: 1/4 inch to 1/2 inch (6.4-13 mm)
Center to Center Maximum 15 inches (38 cm)
Minimum Distance Between Heads Standard - 1-7/8 inch (48 mm)
Maximum Drilling Capacity 2-1/2 inches (63 mm)
Strokes Per Minute (Adjustable) Up to 18
Backgauge Adjustment 0 to 5 inches (0-13 cm)
Vertical Adjustment of Individual Heads 1/4 inch (6 mm)
Table Size 17-3/4 inches x 34 inches (45 x 87 cm)
Table Height 37 inches (94 cm)
Overall Height 56 inches (142 cm)
Floor Space Needed 36 inches x 36 inches (92 x 92 cm)
Net Weight (Approximate) 830 lbs (374 kg)
Warranty Click here to view warranty
Shipping Weight (Approximate) 1100 lbs (499 kg)
Electrical Motor: 208/230 Volts/ 18 Amps, 1 Phase, 60 Hz, AC. Service size 30 Amps Pump: 1/2 HP Spindle Motor: 1-1/2 HP Optional Motor: 208/230 Volts/ 12 Amps, 3 Phase, 50 Hz, AC, Service size 20 Amps
