Challenge EH-3A Drill (Discontinued)

Sale price
Limited availability.
Sale price
Unit price
Request A Quote
Need Advice?
Call us at (800) 243-9226

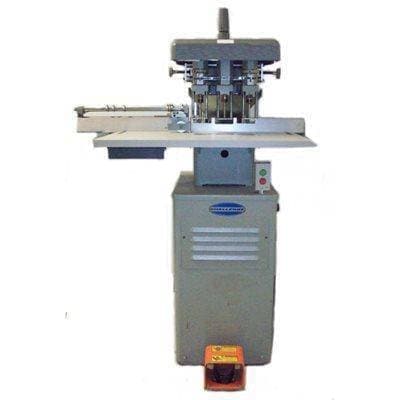

Description of the EH-3A Paper Drill

The heavy duty EH-3A Paper Drill from Challenge delivers clean and precise drilling. The powerful hydraulic 3-spindle operation reduces operator fatigue. The EH-3A has a drilling capacity of 2.5 inches that handle 25% more stock per stroke. Automatic-return of the drilling heads minimizes contact between drill bits and blocks. This means longer bit life and longer intervals between sharpening. Get three perfectly aligned holes in a single stroke (with variable speed stroke control). Simply place a neat stack under the drills and watch as it And thanks to the automatic paper chip removal, users don't have to tediously tidy the work area in between jobs or risk drill damage. It comes standard with 3 drilling heads that fit securely into the spindle, thanks to the taper-fit shank design. Proudly made in the US, the Challenge EH-3A is a rugged paper drill built for ease of use and reliability.

Manufacturer Name Challenge
Table Size 19 1/2'' x 31 1/2''
Min Drill Bit Size 1/4''
Max Drill Bit Size 1/2''
Operation Hydraulic
Number of Drill Spindles 3
Drilling Capacity 2 1/2''
Motor 1 HP
Model # EH-3A
Weight 520 lbs.
Height 59 1/4''
Width 36''
Depth 42''
Voltage 208/230 Volts; other voltages available

Shipping Weight 570.0000
