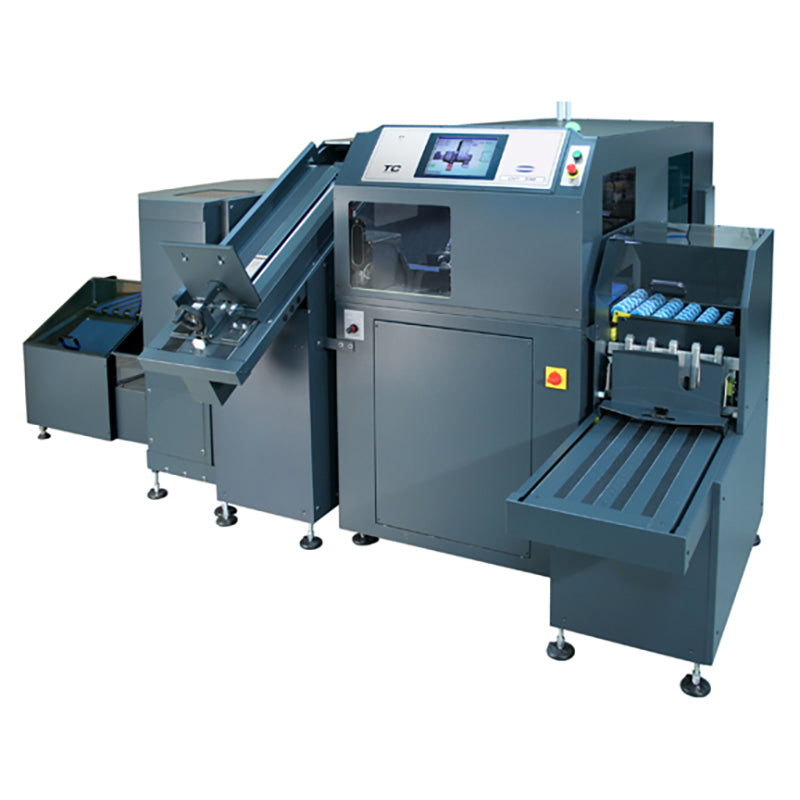

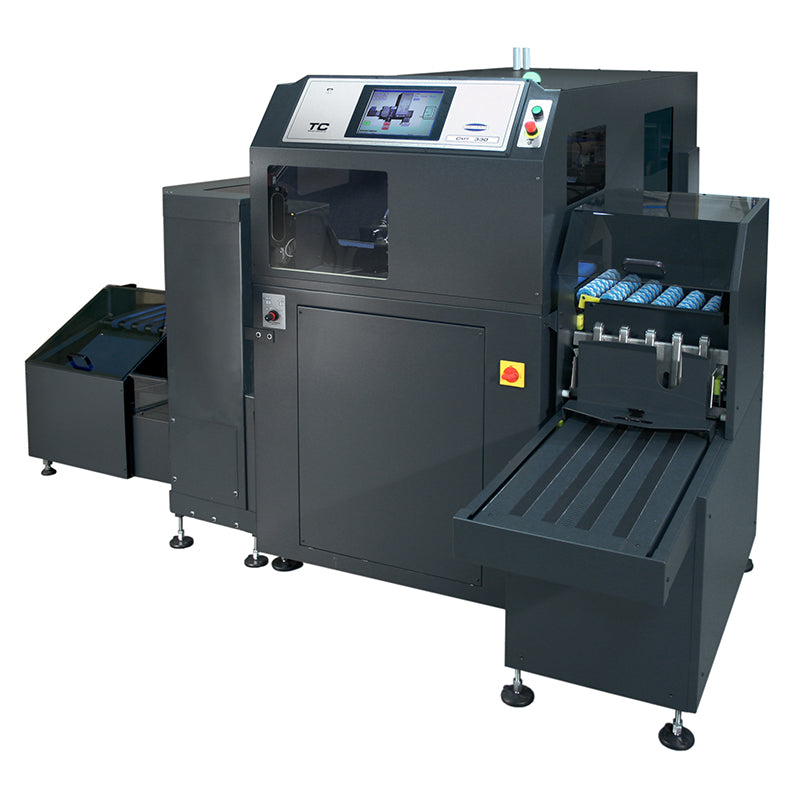

Challenge CMT 330 TC Three-Knife Trimmer
- SKU: CHACMT-330TC
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Description of the Challenge 330TC Three-Knife Trimmer
The Challenge CMT 330TC has expanded capability to finish cut LANDSCAPE FORMATTED BOOKS up to 12.1” (307 mm) tall by 12.9” (328 mm) wide and down to 5.875” (149 mm) tall by 3.937” (100 mm) wide. Designed and built in Michigan-USA, the CMT 330TC utilizes powerful hydraulic cutting and clamping pressure to effortlessly cut up to a 2” (50.8 mm) thick book.
The CMT 330TC utilizes servo and stepper motors to accurately position books for cutting. Full digital control of the set-up allows book size changes in less than 6 seconds. There is no need to perform manual adjustments or exchange book clamps. The CMT 330TC exclusively features simultaneous in-line and near-line feeding capability. This allows the trimmer to automatically switch between feeding books directly from an in-line perfect binder or from a manually loaded near-line book pile feeder. If one system is waiting for the next book, the other system can feed the trimmer to provide maximum production throughput.
The CMT 330TC Trimmer incorporates the most advanced book trimming technology available. The new 10.5” color touch screen display, easy to use operator interface and smart diagnostic assistance makes the CMT 330TC the leader for operational simplicity. Automatic size detection of the pre-trimmed book makes job programming easy, requiring the entry of only three dimensions. Alternatively, the integrated bar code reader can scan the trim dimensions from a pre-printed barcode on the cover to adjust the knife settings automatically. Simply stated, the CMT 330TC is a fully automated book-of-one trimming solution.
Proudly manufactured in the USA, the CMT 330 TC continues our legacy of providing assurance you made the right decision.
Accessories for Challenge CMT 330 TC Three-Knife Trimmer
| Manufacturer Name | Challenge |
|---|---|
| Memory | 99 jobs |
| Book Size Changeover Time | Under 6 seconds |
| Throughput | Up to 750 books per hour in multi-book mode |
| Floor Load Rating | 60 PSI (4.2 Kg/m2) |
| Waste Bin Capacity | 2@14 gal.(53 liters) +1@43 gal.(163 liters) |
| Oil Capacity | 5 gallons (19 liters) |
| Maximum Blade Re-sharpening | 1/4 inch (6.4 mm) |
| Air Consumption | 9 CFM @ 90 PSI (255 LPM @ 5.8 Bar) |
| Starting Book Maximum | 13 inches x 13 inches (330 X 330 mm) |
| Starting Book Minimum | Near-line single mode: 7 inches x 5 inches (178mm x 127mm) / Near-line multiple mode: 7 inches x 8 inches (178mm x 203mm) / In-line single mode: 7 inches x 8 inches (178mm x 203mm) / In-line multiple mode: 7 inches x 9 inches (178mm x 229mm) |
| Finished Book Maximum | 12.1 inches x 12.9 inches (307 x 328 mm) |
| Finished Book Minimum | 5.82 inches x 3.94 inches (148 x 100 mm) |
| Maximum Top Trim | 6 inches (152 mm) |
| Minimum Book Thickness | .100 inches (2.5 mm) |
| Maximum Book Thickness | 2 inches (51 mm) |
| Electrical | Power Option 1: 60 Hz, AC, 3 Phase 208/230 Volts, 20 Amps (service size 30 Amps) / Power Option 2: 50 Hz, AC 3 Phase 380/415 Volts, 16.5 Amps (service size 20 Amps) / Power Option 3: 50 Hz, AC 3 Phase 200/208 Volts, 20 Amps (service size 30 Amps) |
| Air Supply | Requires a dry non-lubricated air source capable of supplying a MINIMUM of 9 CFM (255 LPM) and remain at a CONSTANT 90 PSI minimum (5.8 Bar/620 kPa) |
| Warranty | Click here to view warranty |
| Weight with Near-Line - Pile Feeder & Stacker | 3 skids - Net Weight: 3,660 lbs (1,660 kg) / Shipping Weight: 3,775 lbs (1,713 kg) |
| Weight with In-Line - No Pile Feeder | 4 skids - Net Weight: 3,860 lbs (1,751 kg) / Shipping Weight: 4,166 lbs (1,890 kg) |
| Weight with In-Line - With Pile Feeder | 5 skids - Net Weight: 4,290 lbs (1,946 kg) / Shipping Weight: 4,636 lbs (2,103 kg) |
