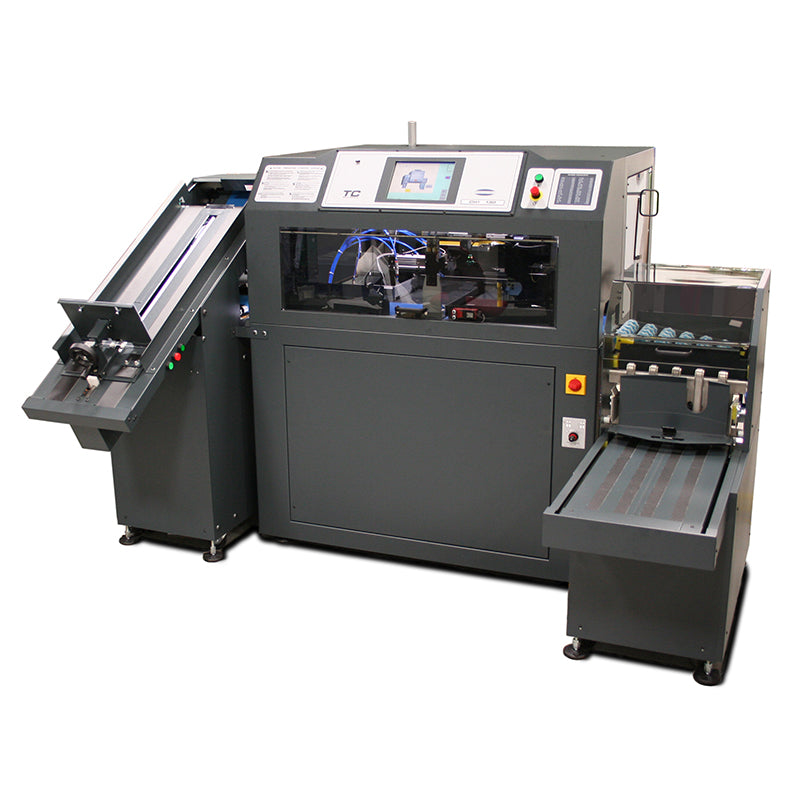

Challenge CMT 130 TC Single-Knife Trimmer
- SKU: CHACMT-130TC
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Description of the Challenge CMT 130 TC Single-Knife Trimmer
Perfect binding has made great strides in recent years. Traditionally, short-run book trimming duties have been carried out by traditional guillotines but the process is time-consuming and wrought with possibilities of book damage due to operator error. Drawing on our 150+ years of cutting expertise, Challenge has designed the ultimate book trimming solution necessary for today's competitive marketplace – the CMT 130.
The sturdy steel and cast-iron design of the CMT 130TC ensures years of trouble-free operation. Hydraulic clamping and cutting action provides strength to cut up to 2" (50.8mm) thick books without hesitation. Standard features such as UHMW gib surfaces, composite bushings, and stepper motor technology require virtually zero maintenance.
The industry-exclusive modularity of the CMT 130TC provides added possibilities for future growth within your organization. The system can be configured as a hand-feed off-line trimmer for entry level cost-effective book finishing. The high-capacity feeder permits up to 35.5" / 90 cm of books to be stacked and automatically fed into the trimmer. The vertical stacker allows up to 24" / 61 cm of books to be delivered. When these two items are combined, this near-line trimming solution permits the perfect binder operator to also feed and collect product from the CMT 130TC solution. The CMT 130TC can also be configured for in-line trimming by adding an infeed conveyor and cooling tower to the system - giving the trimmer the ability to receive books directly from the perfect binder OR from the book pile feeder. The CMT 130TC system is ultimately flexible to meet your book trimming needs!
The intuitive 10.5" color touch screen controller provides a clear clean image of the trimming system. Automatic starting book size detection simplifies the required job parameters making job entry quick and easy. Swift size changes occur in approximately 10 seconds with no tools required! Standard barcode reading capability maximizes the efficiency of the process enabling the change-over between book jobs to be fully automated. No other book trimming system in the market can match the capabilities of the CMT 130TC system!
Proudly manufactured in the USA, the CMT 130TC provides consistent cut quality, durability, and industry-exclusive modularity that you have come to expect from Challenge products. The CMT 130TC continues our legacy of providing… assurance you made the right decision.
Accessories for Challenge CMT 130 TC Single-Knife Trimmer
| Manufacturer Name | Challenge |
|---|---|
| Memory | 99 jobs |
| Book Size Changeover Time | Under 10 seconds |
| Throughput | Up to 500 books per hour in multi-book mode |
| Floor Load Rating | 53 PSI (3.73 kg/cm^2) |
| Waste Bin Capacity | 43 gallons (164 liters) |
| Oil Capacity | 5 gallons (19 liters) |
| Maximum Blade Re-sharpening | 1/4 inch (6.4 mm) |
| Starting Book Maximum | 13 inches x 9.5 inches (330 mm X 241 mm) |
| Starting Book Minimum | Near-Line Single Mode: 7 inches x 5 inches (178mm x 127mm) / Near-Line Multiple Mode: 7 inches x 6.75 inches (178 mm x 171 mm) / In-Line Single Mode: 7 inches x 6.75 inches (178 mm x 171 mm) / In-line Multiple Mode: 7 inches x 7 inches (178 mm x 178 mm) |
| Finished Book Maximum | 12 inches x 9 inches (305 mm x 229 mm) |
| Finished Book Minimum | 5.82 inches x 4 inches (148 mm x 102 mm) |
| Minimum Trim, All Sides: | .100 inches (2.5 mm) |
| Maximum Top Trim | 5.5 inches (140 mm) |
| Minimum Book Thickness | .100 inches (2.5 mm) |
| Maximum Book Thickness | 2 inches (51 mm) |
| Electrical | Motor: 5 HP, three phase, 60 Hz, AC 208/230 volts, 25 amps (service size: 40 Amps) / Optional Motor: 5 HP, three phase, 50 Hz, AC 380/415 volts, 12 KW, 16.5 amps (service size: 20 Amps) |
| Air Supply | Requires 80-90 PSI (550-620 kPa) regulated, dry, nonlubricated compressed air at a minimum of 5 cfm at 90 PSI (142 LPM at 620 kPa), and a minimum air quality of: ISO 8573.1 Class 2.4.2 |
| Warranty | Click here to view warranty |
| Weight with Near-Line - Pile Feeder & Stacker | 3 skids - Net Weight: 2,188 lbs (993 kg) / Shipping Weight: 2,725 lbs (1,236 kg) |
| Weight with In-Line - No Pile Feeder | 4 skids - Net Weight: 2,303 lbs (1,045 kg) / Shipping Weight: 2,890 lbs (1,311 kg) |
| Weight with In-Line - With Pile Feeder | 5 skids - Net Weight: 2,673 lbs (1,212 kg) / Shipping Weight: 3,360 lbs (1,524 kg) |
