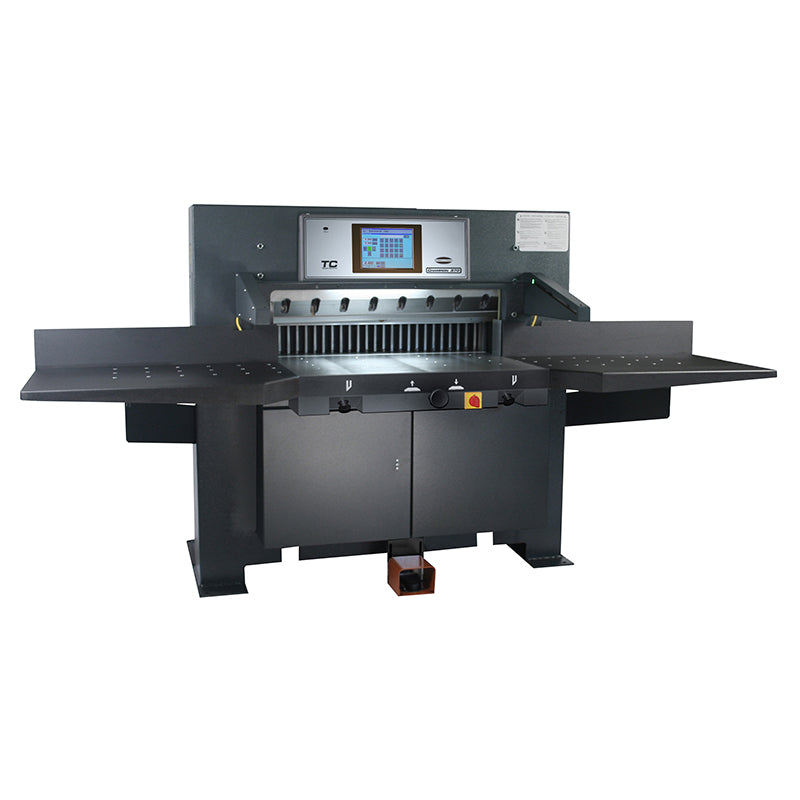

Challenge Champion 370 TC Paper Cutter
- SKU: CHACHAMP370TC
- Cut Height: 4.875"
- Cut Width: 37"
- Type: Auto-Programmable
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.
Description of the Champion 370 TC Challenge Paper Cutter
The Challenge Champion 370 TC continues our well known excellence for innovation, reliability and durability. UHMW gib surfaces and composite bushings require virtually no maintenance for years of trouble-free operation. Standard features such as power soft clamp, air table, digital hand wheel, and automatic false clamp detection reduce operator fatigue and maximize productivity.
The Champion 370 TC meets the toughest safety standards in the industry today. Light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to our UL and CE certification.
The intuitive 10.5" color touch-screen TC Controller allows variable mode data entry, automatic fraction to decimal calculation and unlimited program storage capacity. Clamp mark waste is reduced or eliminated with programmable electronic clamp pressure control per cut. Innovative advances improve the task of program creation through features such as repeat and loop commands, USB port for thumb drive program delivery, label cutting and sheet division tools, and more! The TC system is the first paper cutter controller in the world to recognize common .csv format program files making offline programming simple and easy to implement at any size print operation.
Proudly manufactured in the USA, the Champion 370 continues our legacy of providing assurance you made the right decision.
| Manufacturer Name | Challenge |
|---|---|
| Maximum Cutting Width | 37 inches (94 cm) |
| Maximum Cut without False Clamp Plate | 3/4 inch (19 mm) |
| Maximum Cut w/ False Clamp Plate | 2-5/8 inches (67 mm) |
| Maximum Cut Depth | 40 inches (102 cm) |
| Clamp Opening without False Clamp Plate | 5-1/8 inches (130 mm) |
| Clamp Opening w/ False Clamp Plate | 4-7/8 inches (124 mm) |
| Clamping Method | Hydraulic |
| Maximum Clamping Force | 7000 lbs (3100daN) |
| Minimum Clamping Force | 1963 lbs (873daN) |
| Table Space: In Front of Knife | 25 inches (63.5 cm) |
| Table Height | 36 inches (92 cm) |
| Overall Height | 60 inches (153 cm) |
| Overall Width w/Side Tables | 109 inches (277 mm) |
| Overall Width without Side Tables | 63-1/2 inches (162 cm) |
| Overall Length | 87 inches (221 mm) |
| Mounting Dimension | 60-1/4 inches (153 cm) |
| Door Pass-Through: Assembled | 63-1/2 inches (162 cm) |
| Door Pass-Through: w/ Table/Treadle Removed | 36 inches (91 cm) |
| Net Weight (Approximate) | 3750 lbs (1701 kg) |
| Electrical | 10 HP, 3 phase, 60 Hz, AC, 208/230 Volts, 38 Amps, Service size 60 Amps OPTIONAL: 10 H.P., 3-Phase, 50 Hz, 380/415 Volts, 20 Amps, Service Size 30 Amps |
| Warranty | Click here to view warranty |
| Shipping Weight (Approximate) | 4600 lbs (2086 kg) |
