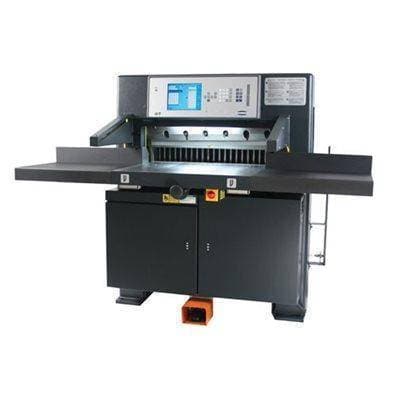

Challenge Champion 305XT Paper Cutter (Discontinued)

  • SKU: CHA305XT
Sale price
Limited availability.
Sale price
$0.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Features of the 305XT Challenge Cutter

  • Cutting width: 30 ½ inches
  • Cutting width: 30 ½ inches
  • Cutting height: 4 inches (3 ¾ inches with false clamp plate)
  • Minimum cut: ¾ inches (2 inches with false clamp plate)
  • Maximum cut depth: 30 ½ inches
  • Table space in front of cutting blade: 25 inches
  • Table space behind cutting knife: 30 ½ inches
  • Hydraulic controls and clamping
  • Low-pressure pre-clamping
  • High memory capacity; can program up to 99 jobs (9,801 total cut position storage)
  • Manual or powered back gauge adjustment
  • Air table
  • Digital hand wheel
  • Heavy-duty construction
  • Optional side tables
The Champion 305XT Challenge Paper Cutter features automatic hydraulic power and guarantees accurate cutting results.

Description of the Champion 305XT Challenge Paper Cutter

The Champion 305XT automatic hydraulic paper cutter by Challenge gives you optimal programming and safety, so you can be sure to accomplish many cutting jobs with ease. It includes a controller that permits variable mode data entry with a maximum of 99 jobs (9,801 total cut position storage). This electric cutter also features safety curtains, a cutting knife safety latch and fully enclosed rear table, all of which facilitate danger-free cutting. The low-pressure pre-clamping also protects you from injury. The storage space and optional side tables, as well as versatile cutting capability make this a very flexible machine. It can make maximum cuts of 28 inches and cut as narrowly as ¾ inches, able to carry out a wide range of cutting projects.

With the 305XT cutter, heavy maintenance is the least of your worries. Taking care of it requires minimal effort, since the UHMW gib surfaces, composite bushings and heavy-duty iron construction are maintenance-free and enable you to get years of problem-free operation. The back gauge can be adjusted either manually or automatically, giving you more control. The Challenge Champion 305XT achieves ultimate levels of performance, executing reliability, accuracy and safety every single time.

Strengths

  • Great versatility - 28 inch maximum cutting depth and minimum cut of ¾ inches; storage space underneath the machine and optional side tables.
  • Very generous amount of table space, even more so with the side tables.

Manufacturer Name Challenge
Max Cutting Width 30 1/2''
Cutting Height 4''
Cutting Mode Hydraulic
Cutting Length Behind Blade 30 1/2''
Cutting Length in Front of Blade 25''
Clamp Type Hydraulic
Programmable Yes
Horsepower 5
Optical Cutting Line Yes
Blade Construction Steel
Back Gauge Adjustment Automatic
Safety Mechanism Light safety curtains; knife safety latch
Model # 305XT
Weight 2,550 lbs.
Height 58 1/2''
Width 70''
Depth 48 1/2''
Voltage 208/230 Volts; other voltages available
Warranty

Shipping Weight 2550.0000
