Challenge Champion 305XG Paper Cutter(Discontinued)

Challenge Champion 305XG Paper Cutter(Discontinued)


Challenge Champion 305XG Paper Cutter(Discontinued) Cutters Challenge

Features of the 305XG Challenge Cutter

  • Cutting width: 30 ½ inches
  • Cutting width: 30 ½ inches
  • Cutting height: 4 inches (3 ¾ inches with false clamp plate)
  • Minimum cut: ¾ inches (2 inches with false clamp plate)
  • Maximum cut depth: 30 ½ inches
  • Table space in front of cutting blade: 25 inches
  • Table space behind cutting knife: 30 ½ inches
  • Up to 26 cuts per minute
  • Powerful hydraulics
  • Awesome programming; 9,801 total cut position storage
  • Automatic or manual back gauge control
  • Digital hand wheel
  • Automatic false clamp deduction
  • Air table
  • Heavy-duty, durable construction
  • Optional side tables





Regular price
Sold out
Sale price
$0.00
Unit price
per


SKU: CHA305XG
Request A Quote

Secured & Safe Checkout :

trust badge

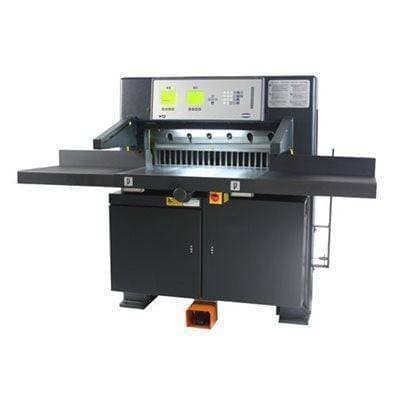

Description of the Challenge Champion 305XG Electric Hydraulic Cutter

The Challenge Champion 305XG hydraulic paper cutter is very similar to the 305X model. With terrific capacity and programming, this paper cutter guarantees the utmost effective cutting. You won't find a bigger cutting width or maximum cutting depth than what this cutter has. The 305XG is capable of accommodating paper 30 ½ inches wide, with 28 inches behind the cutting blade. It also saves time when you need to complete larger cutting projects, able to slice through a good 4 inch stack of paper, approximately 700 sheets.

With a maintenance-free design, 9,801 total cut position storage, power soft clamp, automatic false clamp deduction and digital hand wheel, this paper cutter could not be any easier to use. While enhancing productivity, it greatly decreases user fatigue. The fully adjustable blade bar gibs keep your blade in quality shape, reducing any lubricant that can ruin your documents. Though the immense Challenge Champion 305XG paper cutter may look intricate, it offers convenient features that make cutting easy and hazard-free.

Strengths
  • Amazing programming capability; 99 jobs/9,801 total cut position storage.
  • Very safe, including attributes such as enclosed rear table, safety curtains, blade latch and 2-hand time non-repeat cut buttons.

Manufacturer Name Challenge
Max Cutting Width 30 1/2''
Cutting Height 4''
Cutting Mode Hydraulic
Cutting Length Behind Blade 30 1/2''
Cutting Length in Front of Blade 25''
Clamp Type Hydraulic
Programmable Yes
Horsepower 5
Optical Cutting Line Yes
Blade Construction Steel
Back Gauge Adjustment Automatic
Safety Mechanism Light safety curtains; knife safety latch
Model # 305XG
Weight 2,550 lbs.
Height 58 1/2''
Width 70''
Depth 48 1/2''
Voltage 208/230 Volts; other voltages available
Warranty

Shipping Weight 2550.0000
