Availability: Out of stock

Features of the 305X Challenge Cutter

  • Cutting width: 30 ½ inches
  • Cutting height: 4 inches (3 ¾ inches with false clamp plate)
  • Minimum cut: ¾ inches (2 inches with false clamp plate)
  • Maximum cut depth: 30 ½ inches
  • Table space in front of cutting blade: 25 inches
  • Table space behind cutting knife: 30 ½ inches
  • Hydraulic or manual clamping
  • Powered and manual back gauge adjustment
  • Door pass-through (assembled): 49 inches
  • Controller that allows variable mode data entry with up to 99 jobs (9,801 total cut position storage)
  • Maximum of 26 cuts a minute
  • Air table
  • Digital hand wheel
  • Heavy-duty construction
  • Optional side tables

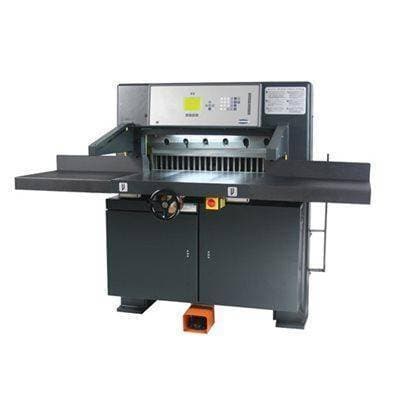

Description of the Challenge Champion 305X Paper Cutter

The Challenge Champion 305X powerful hydraulic cutter is a product you can rely on to get a multitude of cutting jobs done. With an incredible cutting width of 3 ½ inches, it can handle exceptionally large sheets of paper. Furthermore, taking care of it is extremely easy. The composite bushings and gib surfaces do not require any maintenance and fashions a machine that is built to last. Though this electric cutter is big and can be bulky, it boasts a very modern, sleek design.

At the same time, it ensures your safety, equipped with low-pressure pre-clamping, a blade safety latch, front and rear transparent covers, and timed non-repeat push-button operation that requires both hands. Even novice users will have no trouble using the 305X cutter. The self-diagnostics and error indication guide you through any unlikely complication. Waste is significantly diminished by the electronic clamp pressure control, and there even includes a door pass-through of 49 inches. Challenge's Champion 305X automatic hydraulic paper cutter is a workhorse of high durability, efficiency and dependability.

  • Features that are options for other cutters are standard with this one, such as the air table.
  • Blows the other Challenge cutters out of the water, as far as cutting width goes (30 ½ inches).
  • Phenomenal programming (9,801 total cut position storage).

Manufacturer Name Challenge
Max Cutting Width 30 1/2''
Cutting Height 4''
Cutting Mode Hydraulic
Cutting Length Behind Blade 30 1/2''
Cutting Length in Front of Blade 25''
Clamp Type Hydraulic
Programmable Yes
Horsepower 5
Optical Cutting Line Yes
Blade Construction Steel
Back Gauge Adjustment Automatic
Safety Mechanism Light safety curtains; knife safety latch
Model # 305X
Weight 2,550 lbs.
Height 58 1/2''
Width 70''
Depth 48 1/2''
Voltage 208/230 Volts; other voltages available

Shipping Weight 2550.0000
