Akiles DuoMac 421 / 431 Coil and Wire Binding Machines

Akiles DuoMac 421 / 431 Coil and Wire Binding Machines

Basic Specifications of the DuoMac 421

  • 2 independent punch die sets
  • 4:1 pitch coil binding
  • 2:1 pitch wire binding

Basic Specifications of the DuoMac 431

  • 2 independent punch die sets
  • 4:1 pitch coil binding
  • 3:1 pitch wire binding

Features of the DuoMac 421 and 431

  • Punching capacity: 20 sheets of 20lb paper
  • Open punching throat for large documents
  • Side and depth margin control
  • Bulit in wire holder and wire closer
  • Coil crimping tool included

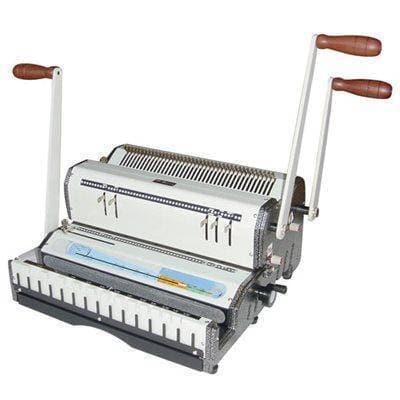

The Akiles DuoMac 421 and 431 are 2-in-1 binding machines that combine both wire and coil binding in one machine.

Regular price
Sale price
Unit price

SKU: AKIDUOMAC ISBN: 9358476080998
Request A Quote

Secured & Safe Checkout :

trust badge

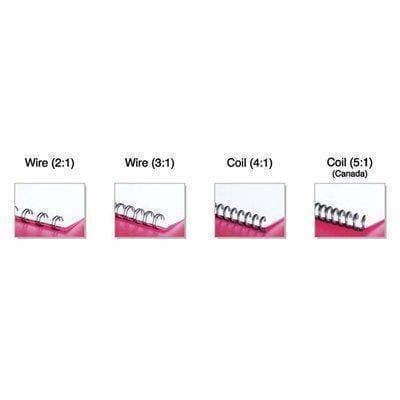

The DuoMac series by Akiles takes binding to another level. These 2-in-1 machines bring together 2 different binding styles in one convenient machine, saving your office time, money and even space. The DuoMac 431 combines coil (4:1 pitch) with 3:1 pitch wire or there's the DuoMac 421 which combines coil (4:1 pitch) with 2:1 pitch wire. Why limit your business to just one type of binding style? The DuoMac 431 and 421 give you the freedom and flexibility to create books, catalogs, calendars, reports with 2 different wire binding styles.

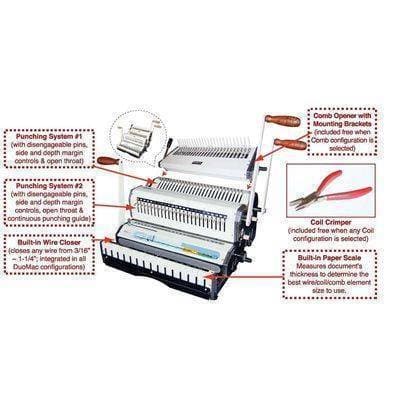

Both machines feature sturdy, all metal construction and 2 separate and independent punching die sets that can accommodate up to 20 sheets per punch. The open throat design can take most any size document and with disengageable pins, side and depth margin controls you can be sure of a perfectly centered punch while avoiding side / end partial punches.

Creating wire or coil bound documents is fast and easy with the DuoMac. For wire bound documents start by measuring your document on the built in paper scale to determine the correct wire size. Place the chosen wire on the convenient wire holder and begin punching and inserting your documents. When finished, adjust the wire closer to the correct size and insert your document into the closer with the open end of the wire face down. Pull the handle to close the wire and you're done. For coil bound documents simply punch your sheets then manually insert your coil. (For faster coil insertion, you may want to consider the Akiles Roll@Coil). After the coil is inserted, use the coil crimp tool, included with the DuoMac to crimp the ends of the coil.

With 10 different wire, coil and comb binding combinations available, the DuoMac series by Akiles has one that's right for your business or organization.

Manufacturer Name Akiles
Punching Method Manual
Punch and Bind Capability Yes
Max Sheet Capacity 20
Max Binding Length 14
Waste Compartment Yes
Weight 64
Height 28
Width 20
Shipping Weight 65.0000
