Akiles Diamond 7 Corner Rounding Machine

  • SKU: AKIDMND7
  • Cut Height: 2.75"
  • Type: Automatic
  • GTIN/UPC: 9358474051167
  • Mfr. Part No.: AD7
Sale price
Sale price
$11,209.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Akiles Diamond 7 Corner Rounding Machine

  • Maximum Rounding Capacity: 2-3/4″ (70mm), 700 Sheets (20 lb)
  • Included Die: 1/4"
  • Available Dies: 1/8″, 1/4″, 3/8″, Straight, and Half-Moon (1/2″ and 5/8″ are Special Order)
  • Detachable Pressing Bar: Yes
  • Motor: 200 W
  • Dimensions: 24-5/8″ W x 12-5/8″ L x 17-1/2″ H
  • Weight: 110 lbs.

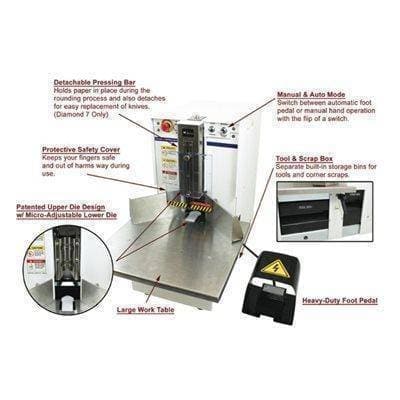

Features of the Akiles Diamond 7 Corner Rounding Machine

  • The Diamond 7 cuts 2.75″ or 700 sheets of 20 lb paper.

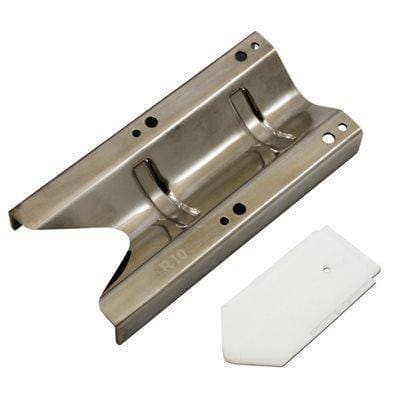

  • 7 Interchangeable dies: available dies include 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, Straight, and Half-Moon.

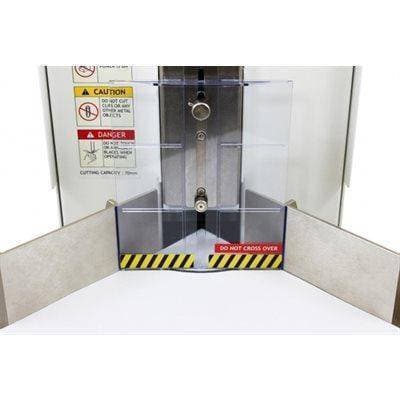

  • Protective safety cover keeps your fingers safely out of the cutting area during use.
  • Patented upper die design & micro-adjustable lower die, allow for smooth and accurate cuts.
  • Detachable pressing bar: holds paper in place during the rounding process and also detaches for easy replacement of knives (Diamond 7 only).

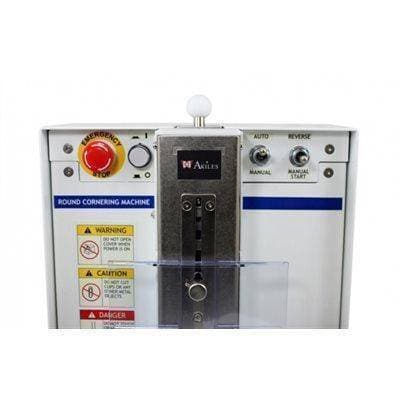

  • Switch between automatic foot pedal or manual hand operation with the flip of a switch.
  • Heavy duty foot pedal.

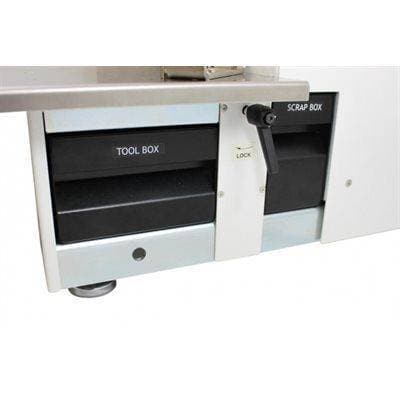

  • Tool and scrap box.
  • Large work table.

Description of the Akiles Diamond 7 Corner Rounding Machine

Akiles' biggest corner rounder, the Diamond 7 can cut through 700 sheets (of 20lb paper) or 2.75" at once. Metal guides keep large quantities of paper neatly aligned for the cleanest cut while the protective safety cover prevents any potential user injuries. Simply stack paper against the guides and easily round corners. Choose between operation modes of automatic foot pedal and manual hand operation (with a switch). Manual or automated, the Diamond 7 will deliver the perfect trim every time. And just in case of emergency, users can stop the Diamond immediately. As an exclusive feature of the Diamond 7, the detachable pressing bar holds tall paper stacks in place and is easily removed for easy replacement of knives. The patented upper die design is paired with a micro-adjustable lower die for easy cutting. The large work table comfortably holds many paper dimensions as to not compromise the accuracy of the cut. A handy built-in bin holds tools, and clean-up is made easy with the scrap collecting bin. The Diamond 7 comes standard with a 1/4" die but there are up to 7 available dies - 1/8", 3/8", Straight, Half-Moon. 1/2" and 5/8" dies must be special ordered.

The Diamond 6 handles slightly smaller stacks than the Diamond 7. The Diamond-5 is smaller but still a heavy duty trimmer. The only manual corner rounder, the Diamond-1 is also incredibly compact, and still delivers a quality cut.

Manufacturer Name Akiles
Cutting Mode Automatic/Electric
Maximum Rounding Capacity 2-3/4″ (70mm), 700 Sheets (20 lb)
Included Die 1/4″
Available Dies 1/8″, 1/4″, 3/8″, Straight, and Half-Moon (1/2″ and 5/8″ are Special Order)
Detachable Pressing Bar Yes
Protective Safety Cover Included
Work Table Included
Storage and Trash Bin Included
Motor 200 W
Weight 110
Height 17 1/2
Width 24 5/8
Depth 12 5/8
Shipping Weight 115.0 lbs.
