Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine
Akiles CombMac-24M Binding Machine

Akiles CombMac-24M Binding Machine

  • SKU: AKICOMBMAC-24M
  • Mfr. Part No.: ACM-24M
$399.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the Akiles CombMac-24M Binding Machine

  • Punching Pitch: Standard comb pitch
  • Punching Length: 14" (with open ends for larger sizes)
  • Binding Capacity: 1/4" - 2"
  • Hole Size: Rectangular 3.12mm x 7.94 mm
  • Single Punching Capacity: Up to 25 sheets of 20 lb paper
  • Disengageable Dies: All 24 dies

Features of the Akiles CombMac-24M Binding Machine

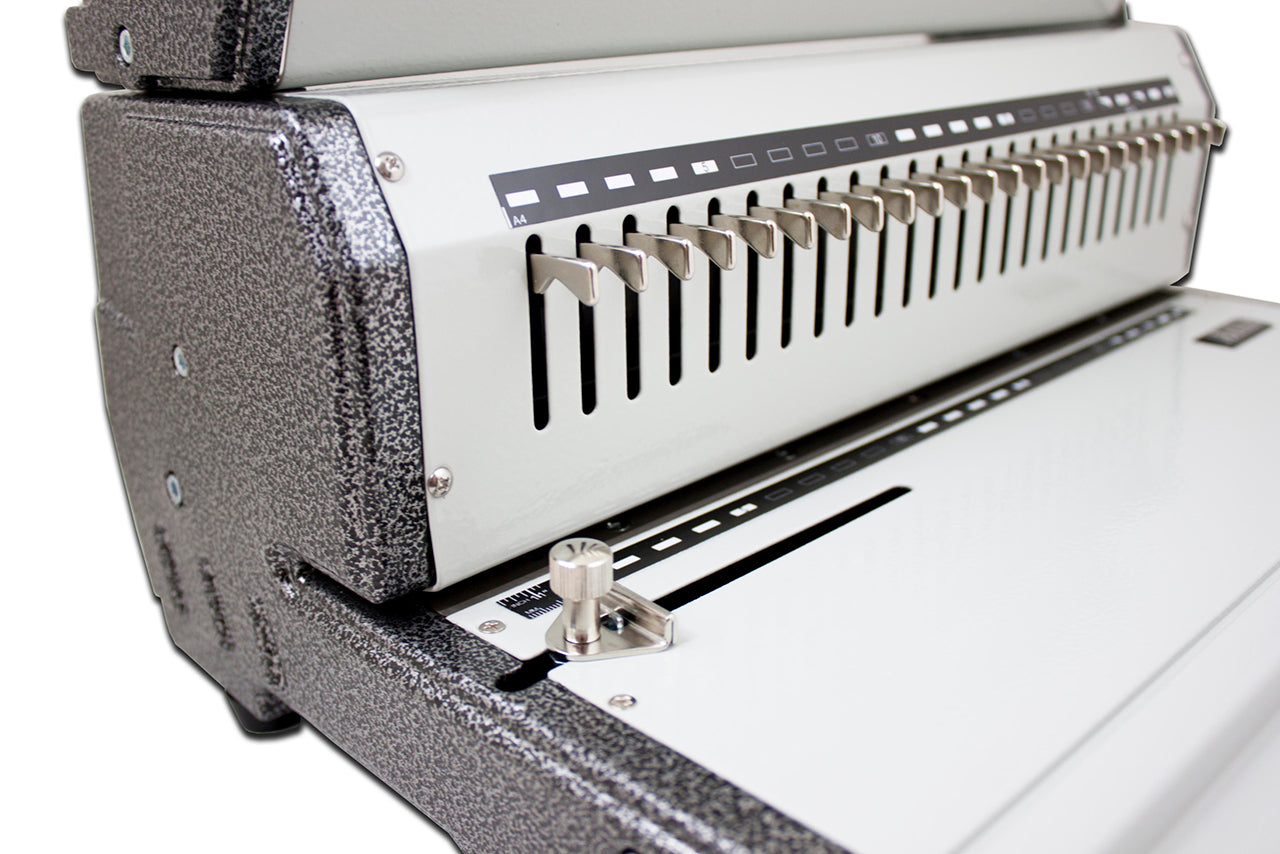

  • Die Disengagement Pins: All dies can be independently disengaged, allows punching of any size document while preventing partial side-end perforation.
  • Depth Margin Control: Provides the correct punch margin depth for each wire/comb size. Maximizes document tear resistance.
  • Open Punching Throat: 14" wide for punching of longer documents.
  • High Volume Punching Capacity: Up to 25 sheets 20lbs paper (letter size).
  • Side Margin Control: Provides evenly centered punch for all document sizes.
  • Diameter Scale: Measures comb diameter.

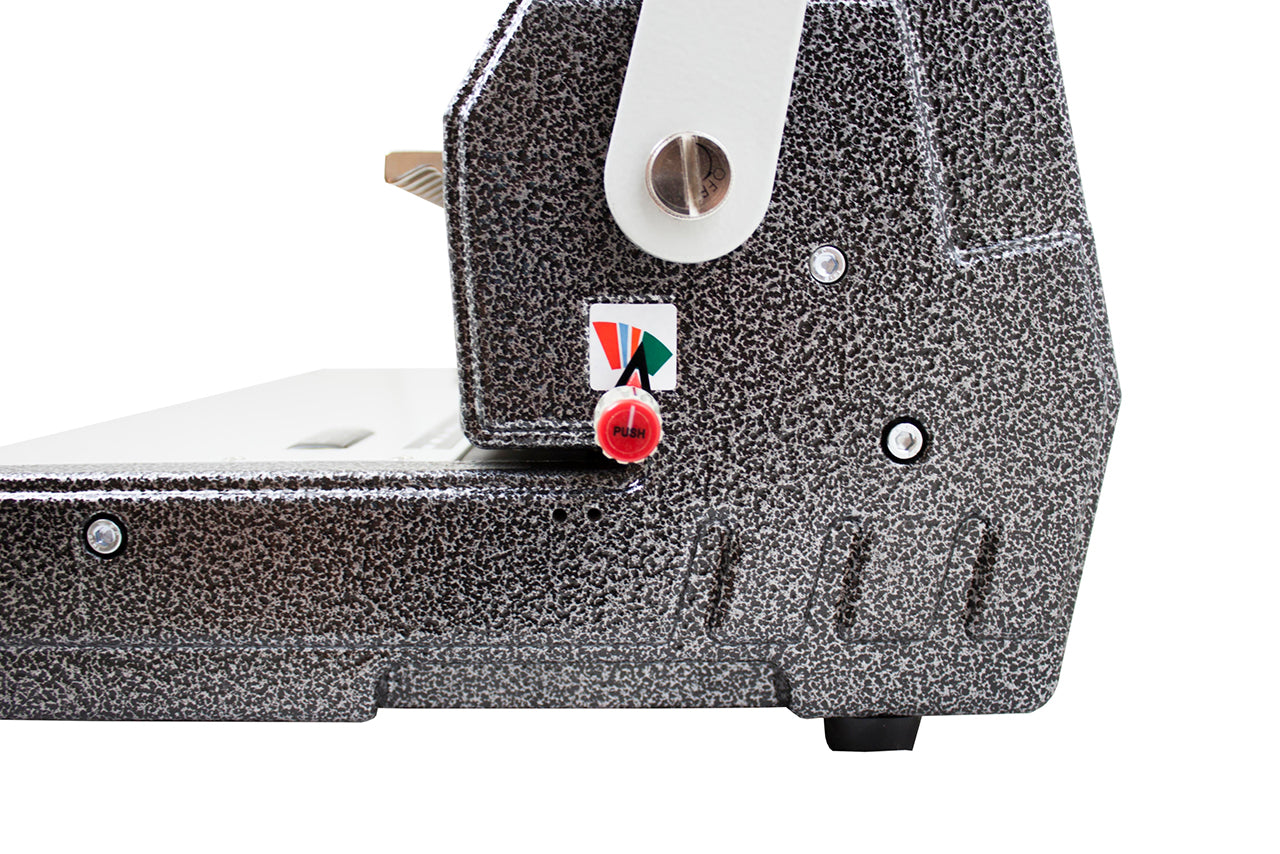

  • Jam Release (Reverse) Switch.

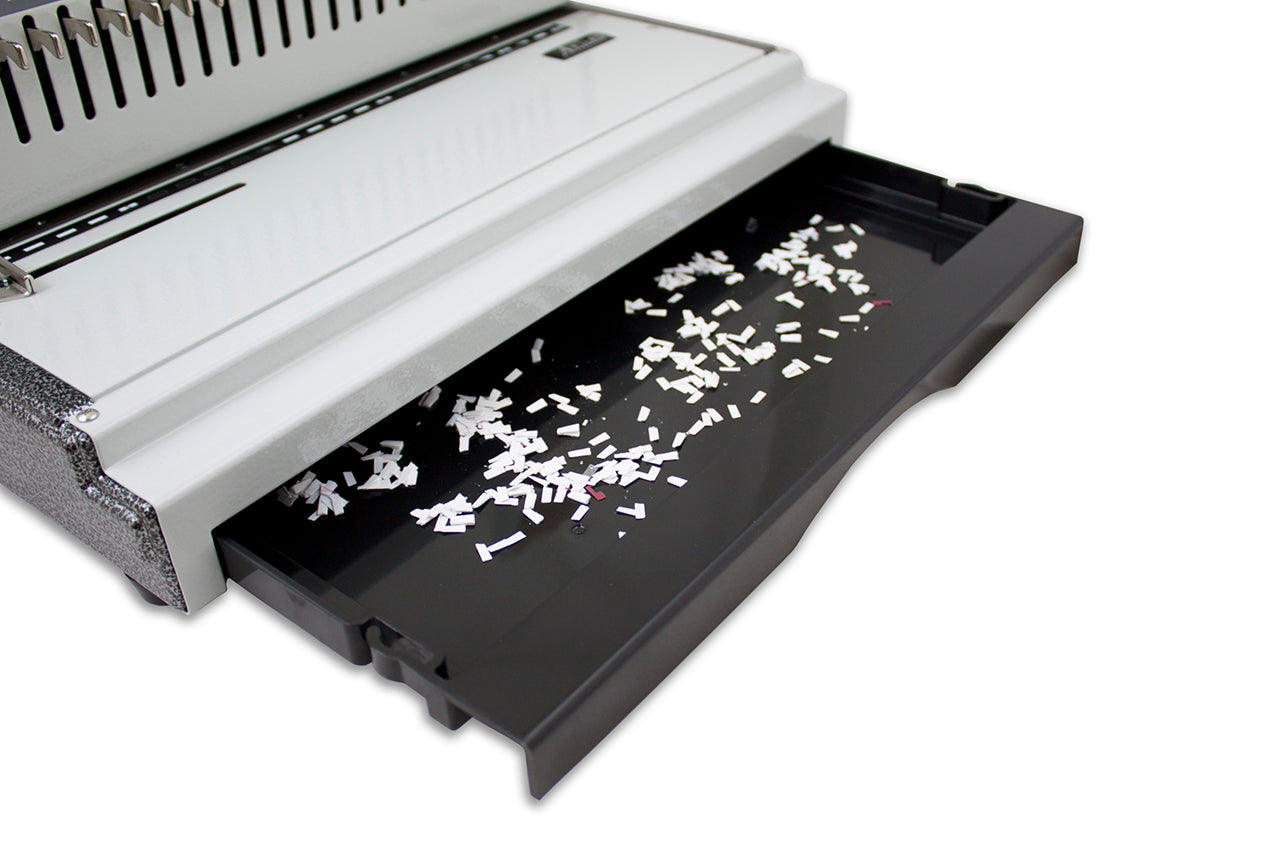

  • Large Capacity Waste Drawer.

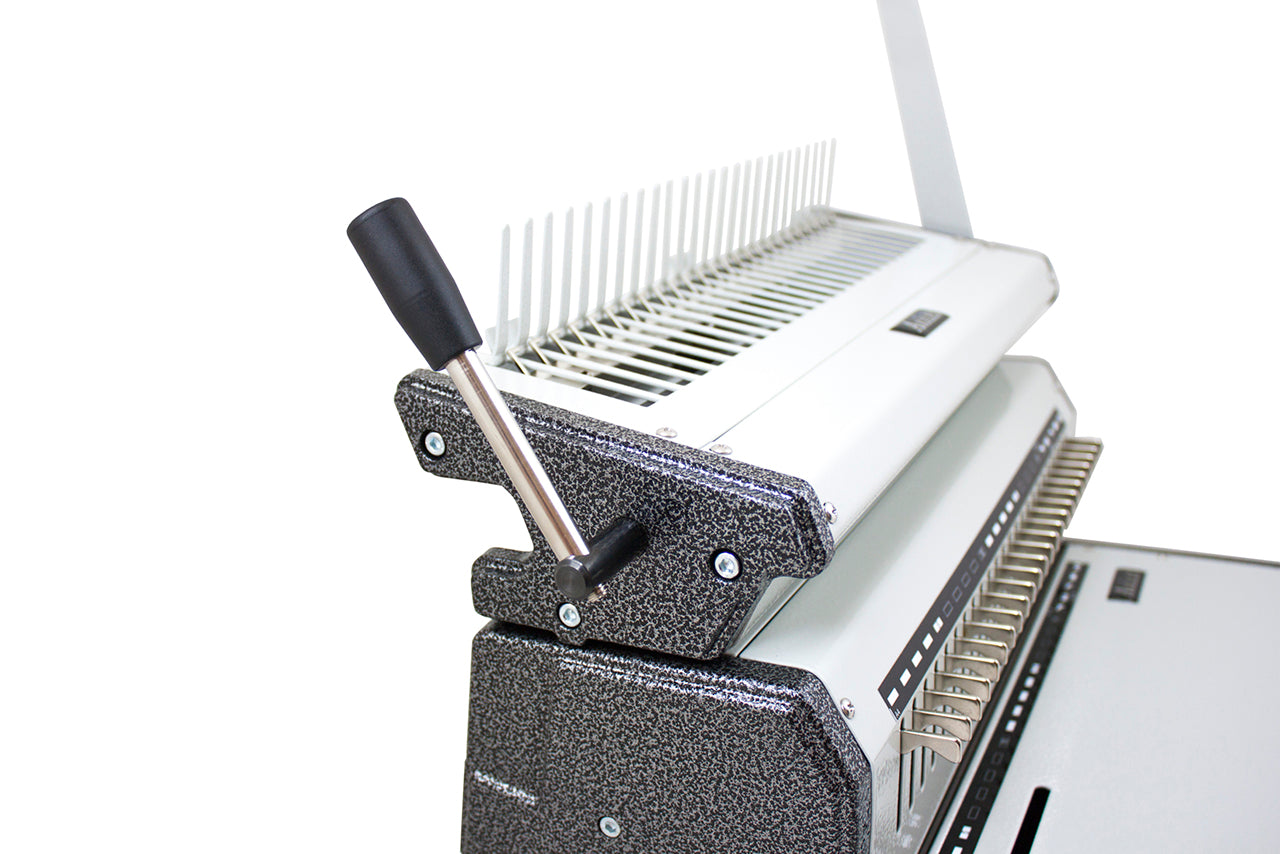

  • Built-In Comb Opener.

Description of the Akiles CombMac-24M Binding Machine

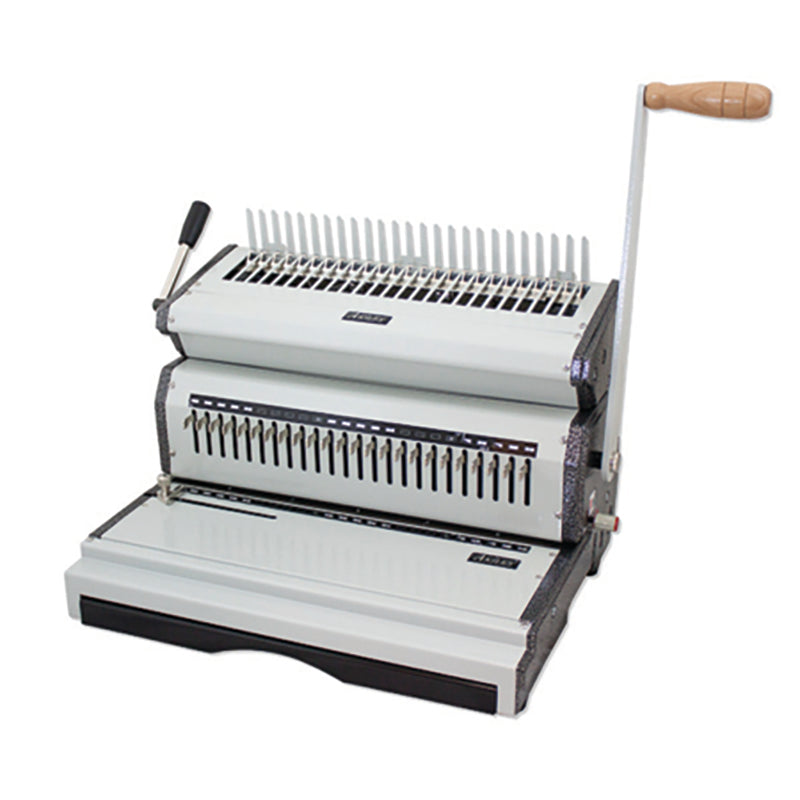

The Akiles CombMac-24M is a heavy-duty manual comb binding machine designed for offices, print shops, and educational institutions that need professional, high-volume document binding. It features a 14-inch open throat, allowing larger paper sizes, and 24 fully disengageable dies for clean, customizable punching. The machine can punch up to 25 sheets of 20 lb paper at once and bind documents up to 2 inches thick using standard plastic combs. With adjustable side and depth margins, users can achieve precise alignment and durable results, while the built-in comb opener and large waste drawer make operation efficient and tidy. Constructed entirely of metal, the CombMac-24M delivers long-lasting performance and professional-quality results, making it ideal for environments that demand reliability and flexibility in document finishing.

Manufacturer Name Akiles
Punch and Bind Capability Yes
Max Sheet Capacity 25
Punching Pitch Standard Comb Pitch
Punching Length 14" (with open ends for longer sizes)
Disengagement Dies All 24 dies
Hole Sizes Rectangular 3.12mm x 7.94mm
Binding Capacity 1/4" - 2"
Depth Margin Control Yes
Side Margin Control Yes
Waste Compartment Yes
Weight 38 lbs
