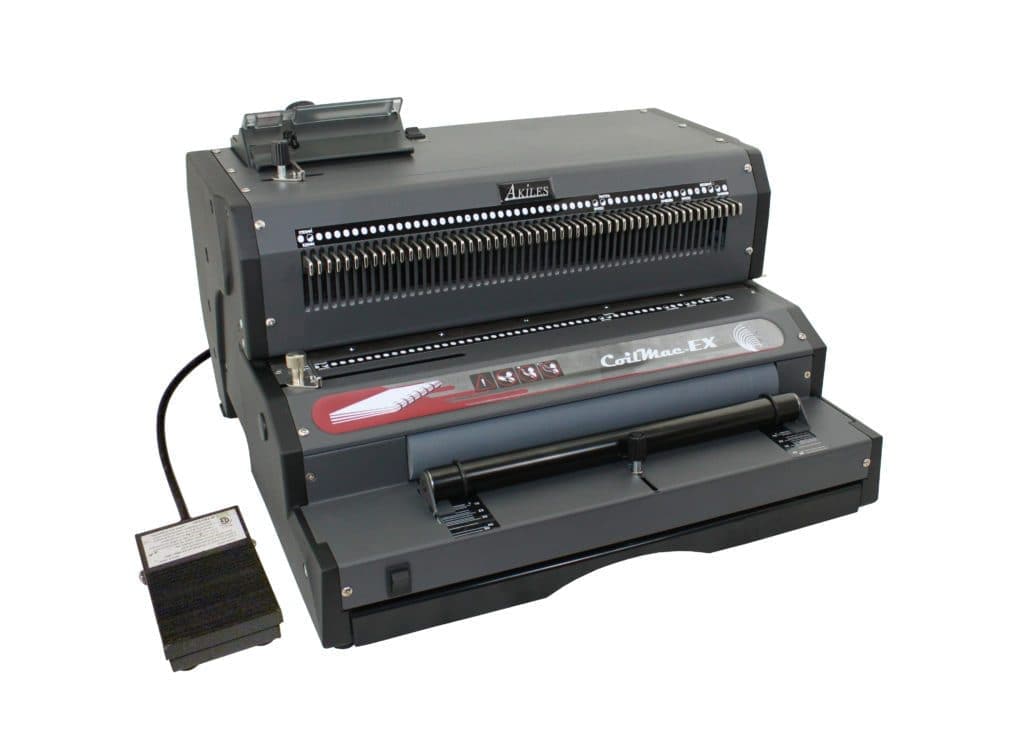

Akiles CoilMac-Ex Pro

Akiles CoilMac-Ex Pro

  • All Electric Operation: Powerful punching, inserting and crimping capabilities in one machine.
  • Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
  • High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).



Regular price
Sale price
$1,316.50
Unit price
per
SKU: AKICMACEXPRO
ISBN: 9358476094858
REQUEST A QUOTE

Have questions?
Call us at (800) 243-9226


Secured & Safe Checkout :

trust badge

  • All Electric Operation: Powerful punching, inserting and crimping capabilities in one machine.
  • Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
  • High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
  • Super Strength Punch Mechanism with exclusive “Precision Guiding System” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation every time.

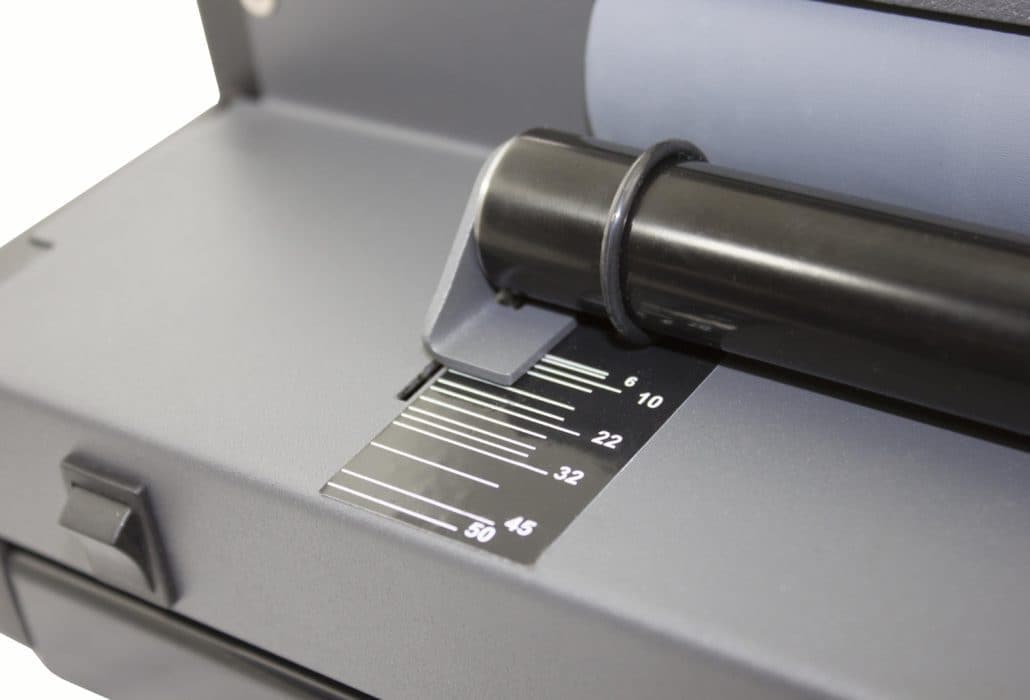

  • Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: Dual roller system with an adjustable bottom roller makes it simple to insert small and large coils.
  • Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).

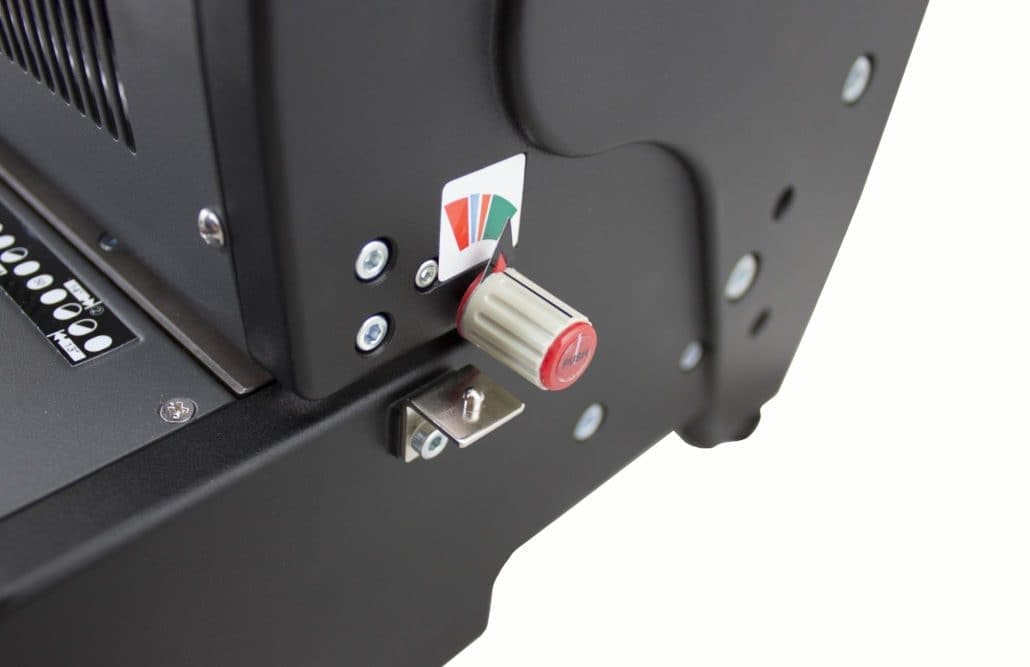

  • Depth Margin Control: 4 adjustable settings, provides the correct punch margin depth for each coil size and maximizes the document’s tear resistance.
  • Side Margin Control: Provides an evenly centered punch for all document sizes.
  • Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
  • Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.

SPECIFICATIONS
Punching Capacity Up to 25 sheets (20 lbs paper)

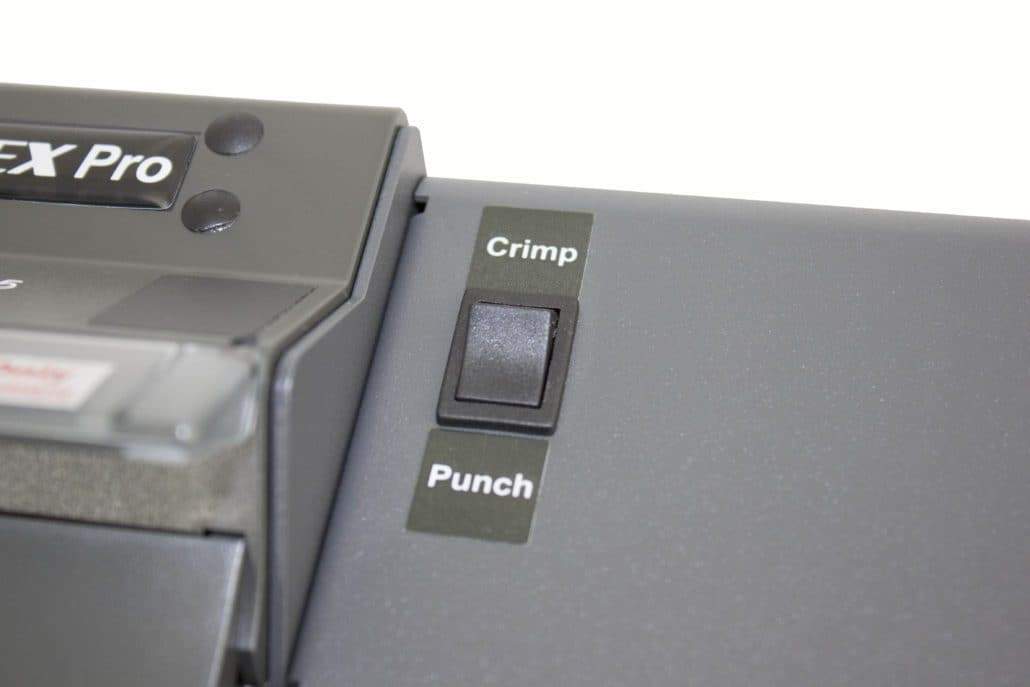

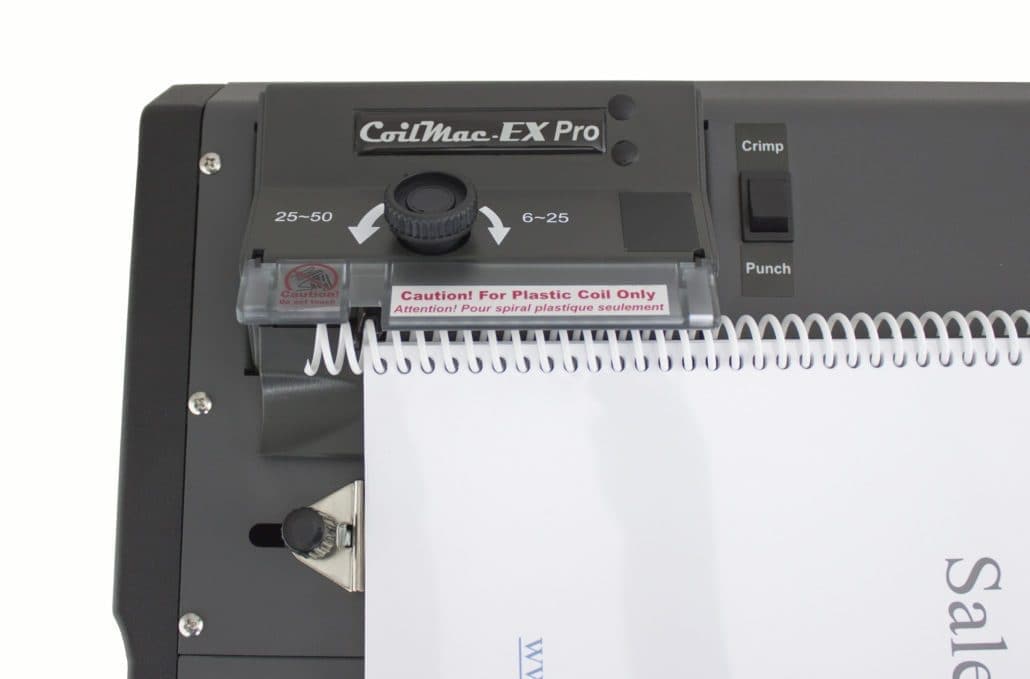

Punching & Crimping Operation Electric (Foot Pedal)
Coil Inserting Electric (On / Off Switch)
Hole Size Oval (4mm x 5mm)
Pitch Letter 4:1 (0.248″)
Disengageable Dies All 54
Punching Length 13.5″ with open throat for longer documents
Binding Capacity Up to 2″ (50 mm)
Dimensions 18″ W x 16″ D x 10″ H
Weight 55 lbs
Warranty 1 Year
