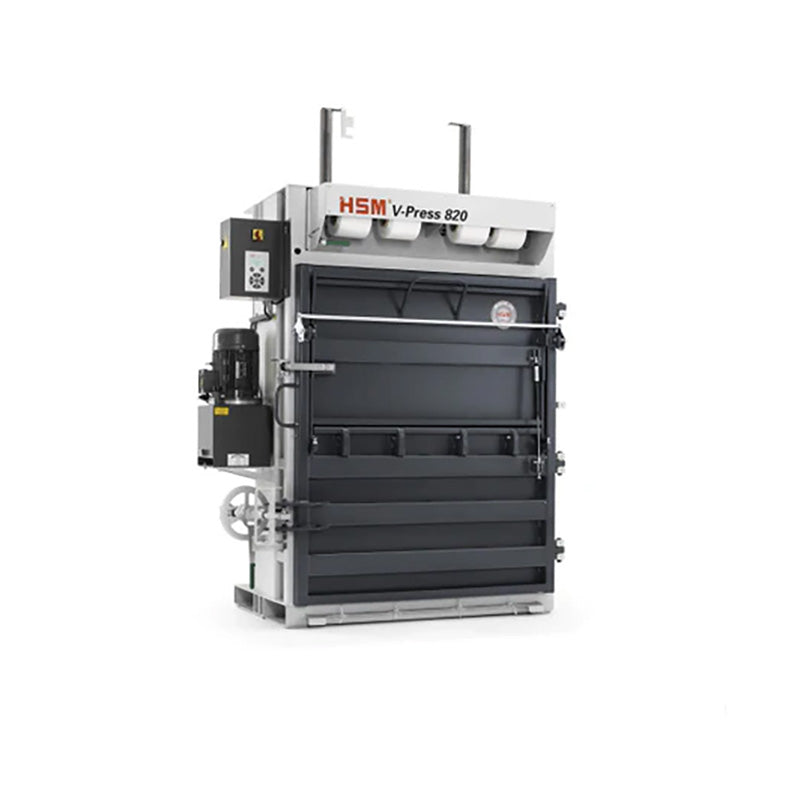

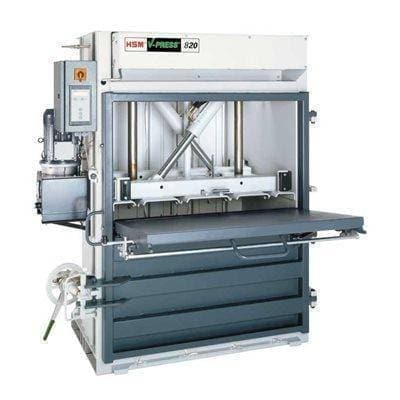

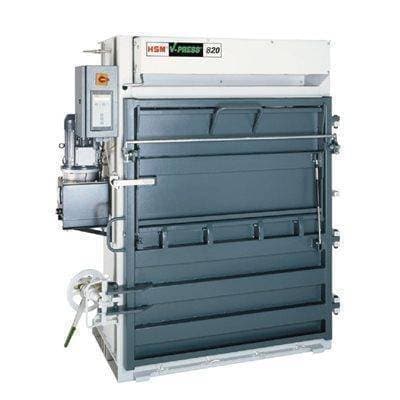

HSM V-Press 820 Plus
HSM V-Press 820 Plus balers_compactors HSM
HSM V-Press 820 Plus balers_compactors HSM
HSM V-Press 820 Plus balers_compactors HSM

HSM V-Press 820 Plus
HSM V-Press 820 Plus balers_compactors HSM
HSM V-Press 820 Plus balers_compactors HSM
HSM V-Press 820 Plus balers_compactors HSM

HSM V-Press 820 Plus

  • SKU: HSMVP820
  • GTIN/UPC: 096224658653
  • Mfr. Part No.: HSM6143213

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

Basic Specs of the HSM V-Press 820 Plus

  • Voltage/Frequency: 480 V/60 Hz
  • Driving Power: 6.44 HP
  • Pressing Material: Cardboard, Mixed Paper, Plastic Film, Punch Waste / residue
  • Pressing Power: 18 ton
  • Cycle Time: 23 seconds
  • Volume Throughput: 486 cubic feet per hour
  • Loading Height: 36.5 inch
  • Loading Aperture (W x H): 47.05 x 21.97 inch
  • Bale Weight: 551 lb
  • Bale Dimensions (L x W x H): 47.24 x 30.71 x 39.37 inch

Features of the HSM V-Press 820 Plus

  • Compresses cardboard and film.
  • Automatic start of the pressing process after closing the door.
  • Optimized pressing: massive press ram and extremely robust press plate guidance.
  • Graphic-capable display: convenient membrane keypad with text display, which shows the current status of the machine.
  • HSM TCS (Torsion Control System) for monitoring press ram movement.
  • Manual bale strapping with continuous polyester tape.
The HSM V-Press 820 Plus tries to maximize baling with its sophisticated design and powerful motor.

Description of the HSM V-Press 820 Plus

The V-Press 820 has all the combined advantages of HSM vertical balers for optimal performance and ease of use. It features an ergonomic design and an extremely powerful motor that can output 2 to 5 bales per hour. Whether it's cardboard plastic, or foils, the V-Press 820 can reduce these materials up to 95%.

With a state-of-the art microprocessor controller and LED display membrane keypad, you can program and choose materials and compressing options. The V-Press 820 features special retaining claws that work to maximize the compression capabilities which in turn increases both loading volume and bale output. It's strength shows in its abilities and the quality construction that HSM is known for.

Manufacturer Name HSM
Weight 2866.01 lb
Pressing Power 18 t
Specific Pressing Power 27,9 psi
Driving Power 6.44 HP
Voltage/Frequency 480 V / 60 Hz
Cycle Time When Idling Vacío 23 s
Volume Throughput in Idle Operation (Theor.) 486 cft/h
Loading Height 36.5"
Loading Aperture Width x Height 47.05" x 21.97"
Bale Length x Bale Width x Bale Height 47.24" x 30.71" x 39.37"
Bale Weight 551 lb
Width x Depth x Height 66.93" x 42.32" x 98.39"
Weight 2866.01 lb
Type of Consumables Strapping Tape
Press Material Punch waste/residue, cardboard, mixed paper, plastic film
Warranty Click here to view warranty
Shipping Weight 0.0 lbs.
